MSB-DP24H

2xDP input to 4xHDMI output video splitter
Maximum 7680x1200 high resolution, support 1920x1200 per port
Support EDID caching
Easy and quick installation without driver
Passive cooling, low power consumption, low-profile metal case
Designed for any custom configurations with Aetina’s MView Power software


Overview

Aetina Multi Monitors Marvel M3 Box series is the simple, flexible and powerful multi-display splitter box to support a spectacular Ultra HD video wall with up to 4/8/9/12/16 displays. With plug & play design, M3 Box does not need to install any driver, providing 1:1 pixel to pixel meticulous output quality without any pixel loss. Ultra-high resolution and high compatibility.

M3 Box MSB-DP24H supports by 2x DP 1.4 input and 4x HDMI 1.4 output. With just one box that can flexibly deploy multi-monitors video wall configuration with 4x1 or 2x2 at optimal Ultra HD 8K resolution in a large 7680x1200 or 1920x1200 @60Hz per screen. Besides, MSB-DP24H allows you to customize the perfect solution for your specific needs. Configure, design, and perform to fit the application environment best by choosing from, linking together, or combining this M3 Box with Aetina’s MDS graphics card as requirement.

Features

Achieve Superior Picture Quality with Ultra 8K /16K

Support 4x1/2x2 Ultra HD video wall with an optimal resolution at 7680x1200 or 1920x1200 @60Hz per screen. Customize and combine them for a captivating video wall with 4x2 (7680x2400 @60Hz) or 2x4 (3840x4800).

Obtain Dynamic Video Wall Configurations by Using Aetina’s Solutions

Leveraging Aetina’s MDS and M3 solutions to create a video wall from any content source for a large display, including professional graphics cards and integrated GPUs.

Note: On AMD GPU table list, MSB-DP39H only supported RX5600 XT & RX5700 XT

Simply, Flexibility and Easy-to-Deploy

With plug & play design, M3 Box does not need to install any driver, providing 1:1 pixel to pixel meticulous output quality without any pixel loss. It is flexibly to set-up displaying with clone and stretched mode, in landscape or portrait configurations.

Support EDID Caching

Support built-in default and hardware EDID, optimizing the displaying quality and stability.

Design Custom Configuration with Aetina MView Power™ Software
Enjoy Immersive View with Convenience

Aetina MView Power™ is the brilliant, intuitive, and easy-installation video-wall editing and management software. Support the editable player, scheduling, local control, and remote monitoring. It is built inside the M3 Player and also supports for Aetina M3 Box. With MView Power, integrators can define display format, as well as efficiently execute advanced pictures and videos. It simplifies the process of video wall content design and management, enabling setup in three quick steps - selecting objects, edit, and play. Powered by the advanced GPU-accelerated hardware performance, MView Power features dynamic multi-layer object mixing and flashing animation for any desirable visual effects.

Key Features

  • Edit to go, user-friendly
  • Support multimedia file format, painting and scheduling functions
  • Easily design elaborate displays of all sizes and configurations
  • Customize configurations to replace the original pre-sets, enabling faster thematic setups
  • Providing unprecedented 8K video playing and 3D visual effects1
  • Extended view-customized area, support PowerPoint or any application in mirror view

Ease to Remote Control, Edit and Monitoring

Providing the console mode, which efficiently make content editing, preview and monitoring directly at the remote end.

Note 1: 8K video playing and 3D visual effects are subject to at least 8GB memory size of the GPU graphics card.

Application

Catalyst your engaging information through Aetina M3 video wall products, whether in a retail store, enterprise building, control room, or public spaces.

  • Medical
  • Traffic
  • Hypermarket
  • Digital Signage
  • Intelligent Surveillance System
  • Enterprises
  • Tradeshow

Specifications

Model Number
MSB-DP24H
Feature Support
Operation System
Windows 10
Display
Max. Displays per Box
4
I/O Interface
Input
DP 1.4 x2
Max. Digital Input Resolution per Port
3840x1200 @60Hz
Outputs
Max. Digital Output Resolution per Port
1920x1200 @60Hz
Power
Power Supply
5V 2A DC
Thermal
Cooling
Heat-Sink
Mechanical & Environment
Dimensions (mm)
120.0mm (W) x 98.0mm (D) x 38.0mm (H) with Metal Case
Operation Temperature(Standard)
0℃ ~ +45℃
Operation Humidity
5 – 95% non-condensing
Storage Temperature
-20°C~65°C
Form Factor
Low-profile metal case

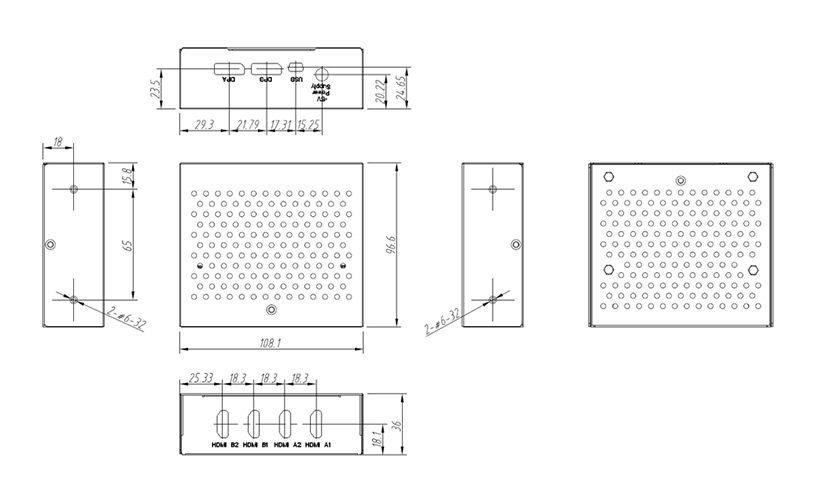

Dimensions

Ordering Information

Model Number Description
MSB-DP24H 4-displays, Multi-display Splitter Box, Input DP x 2 + Output HDMI x 4, 0°C to +45°C
Accessories: DP to DP cable x 2 + Adapter 5V 3A DC x1
