AIE-KO21/31| AIE-KN31/41

•支援NVIDIA Jetson Orin™ NX and Orin Nano™ module
• 寬輸入電壓設計：12至24VDC
• 1 x M.2 E-Key, 1 x M.2 M-Key (內建128GB)
• 1 x RJ-45 GbE Port
• 作業溫度-25°C ~ +70°C

Datasheet
- Aetina_Peripherals List for Jetson Orin Series
- Aetina_AIE-KO21/31_AIE-KN31/41_datasheet

產品介紹
產品規格
訂購訊息
相關下載

產品介紹

● 體積最小的Jetson模組高達80倍的AI效能可實現AI推理

NVIDIA Jetson Orin™ NX模組提供高達100 TOPS的效能，是NVIDIA Jetson AGX Xavier™模組的3倍多，NVIDIA Jetson Xavier™ NX模組的5倍左右；NVIDIA Jetson Orin Nano™提供高達40 TOPS的效能，是NVIDIA Jetson Nano™模組的80倍。換言之，NVIDIA Jetson Orin NX和Orin Nano模組為體積最小的Jetson模組建立了新的主流和入門級邊緣AI標準。

● 充足的M.2 內外儲存擴充兼備

AIE-KO21/31和AIE-KN31/41是邊緣運算系統，內建1個M.2 E-Key用於Wifi/BT和1個M.2 M-Key用於儲存。為避免邊緣運算的資料儲存空間不足，AIE-KO21/31和AIE-KN31/41更支援外部M.2 2242 NVMe的高速傳輸與擴充。

● 寬輸入電壓和作業溫度適用於各種嵌入式應用

為滿足各種嵌入式應用，尤其是具有挑戰性的環境，如智慧工廠、智慧城市和智慧交通等，AIE-KO21/31和AIE-KN31/41支援作業溫度範圍從-25°C到70°C，寬輸入電源範圍則為12到24VDC。

Specifications

Model Number	AIE-KO21	AIE-KO31	AIE-KN31	AIE-KN41
Module Compatibility	NVIDIA Jetson Orin Nano 4GB	NVIDIA Jetson Orin Nano 8GB	NVIDIA Jetson Orin NX 8GB	NVIDIA Jetson Orin NX 16GB
AI Performance	20 TOPS	40 TOPS	70 TOPS	100 TOPS
GPU	512 Core NVIDIA Ampere, with 16 Tensor Cores	1024 Core NVIDIA Ampere, with 32 Tensor Cores	1024 Core NVIDIA Ampere, with 32 Tensor Cores
CPU	6-core Arm® Cortex®-A78AE v 8.2 64-bit 1.5MB L2 + 4MB L3		6-core Arm® Cortex®-A78AE v 8.2 64-bit 1.5MB L2 + 4MB L3	8-core Arm® Cortex®-A78AE v 8.2 64-bit 2MB L2 + 4MB L3
Memory	4GB 64-bit LPDDR5 34GB/s	8GB 128-bit LPDDR5 68GB/s	8GB 128-bit LPDDR5 102.4 GB/s	16GB 128-bit LPDDR5 102.4 GB/s
Storage	1 x M.2 M-Key 2242 (128GB built-in)

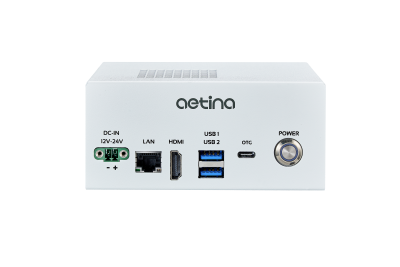

Display	1 x HDMI 2.0 Type A
Audio	LINE IN/OUT, Microphone (optional with daughter board)
LAN	1 x RJ-45 GbE ports
USB	2 x USB 3.2 Gen2 Ty pe A (supports up to 10Gbps shared) 1 x OTG Type-C

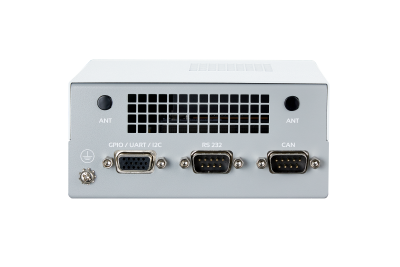

I/O Interfaces	5 x GPIO, 1 x I2C, 1 x RS-232, 1 x UART, 1 x CAN (Isolation; support CAN FD)
Expansion	1 x M.2 E-Key 2230 (WiFi/BT) 1 x M.2 M-Key 2242 (128GB built-in)

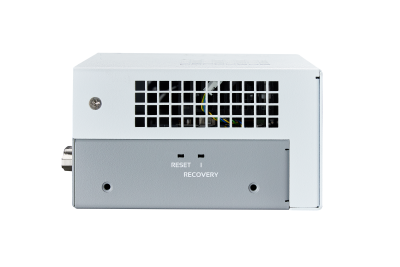

MISC. Function	1 x Power / 1 x Recovery Button / 1 x Reset Button
Power Input / Connector	DC-in 12-24VDC / 2-Pin Terminal Block
Power Consumption	Idle: 8.5 W Full Loading: 30.25* W		Idle: 7.6 W Full Loading: 40.25* W
	*For more test condition information, please refer to user manual
Dimension (WxDxH)	123 x 99 x 56 mm (48.4 x 38.9 x 22 in)
Mounting	Wall Mount (optional) / Din Rail (optional)
Net Weight	0.54 kg (1.2 lb)
Vibration	1 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
Shock	10 G, IEC 60068-2-27, half sine, 11 ms duration
Temperature	Operating Temp. -25°C ~ +70°C (-13°F ~ +158°F) with 0.5 m/s air flow Storage Temp. -40°C ~ +85°C (-40°F ~ +185°F)
Humidity	95% @ 40°C (104°F) (non-condensing)
Software Support	Linux (Support Jetpack 5.0 above)
Certification	CE / FCC Class A / UKCA

產品規格

瀏覽全部加入比較開始比較

訂購訊息

Model Number	Description
AIE-KO21-1-A1	Orin Nano 4G, 1 x HDMI, 1 x GbE, 2 x USB, 128GB SSD, E/M Key, 12 to 24 VDC input, -25°C to +70°C
AIE-KO31-1-A1	Orin Nano 8G, 1 x HDMI, 1 x GbE, 2 x USB, 128GB SSD, E/M Key, 12 to 24 VDC input, -25°C to +70°C
AIE-KN31-1-A1	Orin NX 8G, 1 x HDMI, 1 x GbE, 2 x USB, 128GB SSD, E/M Key, 12 to 24 VDC input, -25°C to +70°C
AIE-KN41-1-A1	Orin NX 16G, 1 x HDMI, 1 x GbE, 2 x USB, 128GB SSD, E/M Key, 12 to 24 VDC input, -25°C to +70°C

Model Name	檔名	版本	更新時間	下載
Jetson Orin Series	Aetina_Peripherals List for Jetson Orin Series	v1.5	2024-02-19	View
AIE-KO21/31 AIE-KN31/41	Aetina_AIE-KO21/31_AIE-KN31/41_user manual	v1.1	2024-01-26	View
AIE-KO21/31 AIE-KN31/41	Aetina_AIE-KO21/31_AIE-KN31/41_datasheet	v1.6	2024-01-11	View

Model Name	檔名	作業系統	版本	更新時間	下載
AIB-SN31/AIB-SN41 AIE-KN31/AIE-KN41 AIE-CN31/AIE-CN41	R35_3_1_Orin_NX_AIB-SO01-SN01_v6_STD		L4T R35.3.1-JetPack 5.1.1	2023-08-17	View
AIB-SO21/AIB-SO31 AIE-KO21/AIE-KO31 AIE-CO21/AIE-CO31	R35_3_1_Orin_Nano_AIB-SO01-SN01_v4_STD		L4T R35.3.1-JetPack 5.1.1	2023-08-17	View
