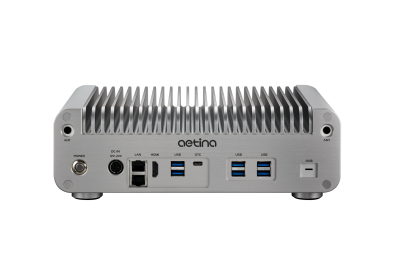

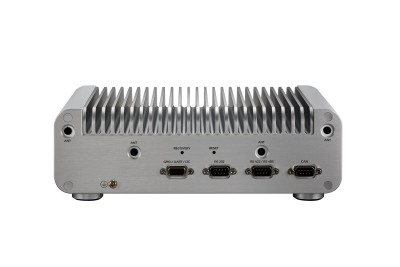

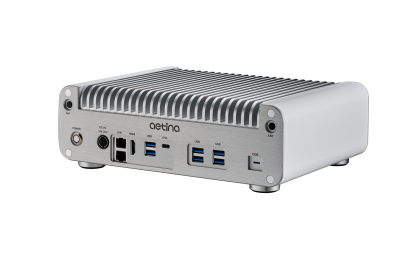

side front back

AIE-PO23/33-6USB | AIE-PN33/43-6USB

NVIDIA Jetson Orin™ NX and Orin Nano™ (Super Mode) モジュール対応

6 x USB 3.2, 1 x OTG Type-C

2 x RJ-45 GbE ポート

1 x M.2 B-キー, 1 x M.2 E-キー, 1 x M.2 M-キースロット

12 to 24 VDCの幅広い入力電圧

作業温度 -25°C ~ +55°C

ファンレス設計

EdgeEyeによるデバイスリモート管理対応

NVIDIA Preferred Partner NVIDIA Preferred Partner

製品紹介

AIE-PN33/43-6USBは、Aetinaのファンレスで汎用性の高い拡張エッジAIシステムで、信頼性の高い高精度AI検査コントローラーとして注目されています。6台のUSBカメラ接続に対応できる6 x USB 3.2が内蔵されており、汎用性の高いI/Oと拡張オプションを組み合わせることで、AI導入のさまざまなニーズに適応します。NVIDIA ® Jetson Orin™ NXを搭載したAIE-PN33/43-6USBは、最大100 TOPSのAIパフォーマンスを提供します。また、AIE-PO23/33-6USBのリリースで実証されているように、NVIDIA ® Jetson Orin Nano™モジュールとも互換性があります。どちらのシステムも、エッジでAI推論を行うためのビデオ入力、スケーリング用の幅広い帯域幅に対応し、パワーパッケージをユーザーに提供します。


● 最大100 TOPSのAIパフォーマンスにより、EdgeでのAI推論が可能に
AIE-PN33/43-6USBとAIE-PO23/33-6USBは、NVIDIA Jetson Orin NXおよびOrin Nanoモジュールと完全に互換性があり、卓越したAIパフォーマンスを実現します。NVIDIA Jetson Orin NXに内蔵されている32 Tensorコアを備えた1024コアNVIDIA AmpereアーキテクチャGPUにより、AIE-PN33/43-6USBは、高解像度データ処理とリアルタイム推論のために最大100 TOPSのAIパフォーマンスを実現します。
● 包括的なM.2拡張ポートとUSBポート
AIE-PN33/43-6USBとAIE-PO23/33-6USBは、LTE/5G用のM.2 B-キー 1個、Wifi/BT用のM.2 E-キー 1個、NVMe拡張ストレージ用のM.2 M-キー 1個を内蔵し、高速データ転送が可能な、高い拡張性を備えたファンレスのシステムです。オンボードの6 x USB 3.2ポートは、合計6台のUSBタイプのカメラまたはデバイスに対応できます。AetinaのBSPやNVIDIA Jetpackツールキットと統合することにより、AIE-PN33/43-6USBとAIE-PO23/33-6USBは、セキュリティアラート、欠陥検出、AOI検査、自動高解像度ソートなどのリアルタイムの目視検査に最適に利用できます。
● EdgeEyeによるデバイスリモート管理に対応

AIE-PN33/43-6USBとAIE-PO23/33-6USBは、EdgeEyeの統合サポートにより、リモート管理の負担を軽減します。EdgeEyeクラウドプラットフォームを使用すれば、ITスタッフは管理センターにいながら分散配置されたエッジシステムを簡単に監視、制御、再起動できます。


* AIE-PO23/33-6USB and AIE-PN33/43-6USB are preliminary products, so the specifications are subject to change without prior notice.

Supercharge with NVIDIA Super Mode

  Orin Nano 4GB Orin Nano 4GB
(Super)
Orin Nano 8GB Orin Nano 8GB
(Super)
Orin NX 8GB Orin NX 8GB
(Super)
Orin NX 16GB Orin NX 16GB
(Super)
GPU Cores 512 CUDA Cores

16 Tensor Cores
512 CUDA Cores

16 Tensor Cores
1024 CUDA Cores

32 Tensor Cores
1024 CUDA Cores

32 Tensor Cores
1024 CUDA Cores

32 Tensor Cores
1024 CUDA Cores

32 Tensor Cores
1024 CUDA Cores

32 Tensor Cores
1024 CUDA Cores

32 Tensor Cores
GPU Max Frequency 625 MHz 1020 MHz 625 MHz 1020 MHz 765 MHz 1173 MHz 918 MHz 1173 MHz
Peak AI Performance INT8 20 TOPS 34 TOPS 40 TOPS 67 TOPS 70 TOPS 117 TOPS 100 TOPS 157 TOPS
GPU Performance (S/D) 20/10 TOPs 34/17 TOPs 40/20 TOPs 67/33 TOPs 50/25 TOPs 77/38 TOPs 60/30 TOPs 77/38 TOPs
CPU 6X A78

1.5 GHz
6X A78

1.7 GHz
6X A78

1.5 GHz
6X A78

1.7 GHz
6X A78

2.0 GHz
6X A78

2.0 GHz
8X A78

2.0 GHz
8X A78

2.0 GHz
SPEC int rate 106 118 106 118 130 167 167 167
DLA Performance (S/D) N/A N/A N/A N/A 20/10 TOPs 40/20 TOPs 40/20 TOPs 80/40 TOPs
DRAM BW 34 GB/s 51 GB/s 68 GB/s 102 GB/s 102 GB/s 102 GB/s 102 GB/s 102 GB/s
Mechanical 70 x 45 mm

260 pins
70 x 45 mm

260 pins
70 x 45 mm

260 pins
70 x 45 mm

260 pins
70 x 45 mm

260 pins
70 x 45 mm

260 pins
70 x 45 mm

260 pins
70 x 45 mm

260 pins
Module Power 7W | 10W 7W | 10W | 25W 7W | 15W 10W | 15W | 25W 10W | 15W | 20W 10W | 15W | 25W | 40W 10W | 15W | 25W 10W | 15W | 25W | 40W

製品の仕様

Model Number AIE-PO23-6USB AIE-PO33-6USB AIE-PN33-6USB AIE-PN43-6USB
Module Compatibility NVIDIA Jetson Orin Nano 4GB NVIDIA Jetson Orin Nano 8GB NVIDIA Jetson Orin NX 8GB NVIDIA Jetson Orin NX 16GB
AI Performance 20 TOPS 40 TOPS 70 TOPS 100 TOPS
GPU 512 Core NVIDIA Ampere, with 16 Tensor Cores 1024 Core NVIDIA Ampere, with 32 Tensor Cores 1024 Core NVIDIA Ampere, with 32 Tensor Cores
CPU 6-core Arm® Cortex®-A78AE v 8.2 64-bit 1.5MB L2 + 4MB L3 6-core Arm® Cortex®-A78AE v 8.2 64-bit 1.5MB L2 + 4MB L3 8-core Arm® Cortex®-A78AE v 8.2 64-bit 2MB L2 + 4MB L3
Memory 4GB 64-bit LPDDR5 34GB/s 8GB 128-bit LPDDR5 68GB/s 8GB 128-bit LPDDR5 102.4 GB/s 16GB 128-bit LPDDR5 102.4 GB/s
Storage 1 x M.2 NVMe M-Key 2242 (128GB built-in)
Display 1 x HDMI 2.0 Type A
TPM Not supported
LAN 2 x RJ-45 GbE ports
USB 2 x USB 3.2 Gen2 Type A (support up to 10 Gbps shared)
4 x USB 3.2 Gen1 Type A
1 x OTG Type-C
I/O Interfaces 5 x GPIO,
1 x UART,
1 x I2C,
1 x RS-232,
1 x RS-422/485,
1 x CAN (isolation; support CAN FD)
Expansion 1 x M.2 B-Key 3042/3052 (LTE/5G)
1 x M.2 E-Key 2230 (WiFi/BT)
1 x M.2 M-Key 2242 (NVMe 128GB built-in)
MISC. Function 1 x Power Button / 1 x Recovery Button / 1 x Reset Button
Power Input/Connector DC-in 12-24VDC / 4-Pin DC Jack Power Connector
Power Consumption Idle: 6.413 W
Full Loading: 47.13* W
Idle: 6.413
Full Loading: 47.13* W
  *For more test condition information, please refer to user manual
Dimension (WxDxH) 270 x 195 x 80 mm (10.63 x 7.67 x 3.15 in)
Mounting Wall Mount (optional) / Din Rail (optional)
Net Weight TBC Kg (TBC lb)
Vibration 1 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
Shock 10 G, IEC 60068-2-27, half sine, 11 ms duration
Temperature

Operating Temp. -25°C ~ +55°C (-13°F ~ +131°F) with 0.5 m/s air flow
Storage Temp. -40°C ~ +85°C (-40°F ~ +185°F)

Humidity 95% @ 40°C (104°F) (non-condensing)
Software Support Linux (Support Jetpack 5.0 above)
Certification CE / FCC Class A / UKCA

*Product specifications are subject to change without prior notice

製品の仕様

比較を開始
0

構造図

AIE-PO23_33_PN33_43-6USB

注文メッセージ

Model Number Description

AIE-PO23-6USB-1-A1

Orin Nano 4GB, 1 x HDMI, 2 x GbE, 6 x USB, 128GB SSD, B/E/M Key, 12 to 24 VDC input, -25°C ~ +55°C

AIE-PO33-6USB-1-A1

Orin Nano 8GB, 1 x HDMI, 2 x GbE, 6 x USB, 128GB SSD, B/E/M Key, 12 to 24 VDC input, -25°C ~ +55°C

AIE-PN33-6USB-1-A1

Orin NX 8GB, 1 x HDMI, 2 x GbE, 6 x USB, 128GB SSD, B/E/M Key, 12 to 24 VDC input, -25°C ~ +55°C

AIE-PN43-6USB-1-A1

Orin NX 16GB, 1 x HDMI, 2 x GbE, 6 x USB, 128GB SSD, B/E/M Key, 12 to 24 VDC input, -25°C ~ +55°C

関連ダウンロード

モデル名 ファイル名 オペレーティングシステム バージョン 更新時間 ダウンロード
Jetson Orin Series Aetina_Peripherals List for Jetson Orin Series v1.7 2024-12-16 View
ARM-based edge AI systems Aetina DeviceEdge Brochure 2025 v1.0 2025-04-10 View
AIE-PO23/33-6USB
AIE-PN33/43-6USB
Aetina_AIE-PO23_33_PN33_43-6USB_datasheet v1.0 2024-04-02 View
