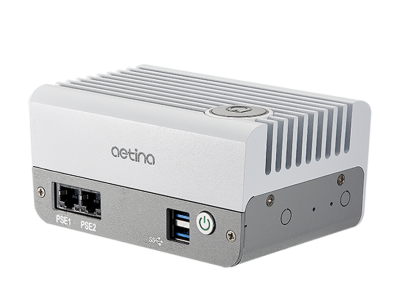

DeviceEdge Mini Series - M2

支援2組PSE,可接2隻PoE相機
• 緊湊、高效能、低功耗、無風扇靜音設計
• EdgeEye:遠端監看裝置狀態之平台、iTons:智能按鈕,一鍵還原系統
• 依效能需求,彈性選擇模組:NVIDIA® Jetson Xavier™ NX and TX2 NX module
• 資料儲存容量擴充至128G
• 適合部署於多元的邊緣運算解決方案如防盜偵測、人臉辨識、跌倒偵測與預防等


產品介紹

儘管DeviceEdge Mini系列為掌上型大小,依舊以高效能、低功耗聞名,尤其適合部署於空間狹小的場域。採用無風扇靜音設計,不僅減少運轉時產生的噪音,更省去清理風扇的維護成本。在不變動機構設計的情況下,用戶可根據不同的運算效能需求,自由挑選合適的模組。另外,此系列擴充至128G,以解決邊緣運算時容易發生儲存容量不足的問題。



為了讓使用者充分掌握所有部署裝置的狀態,DeviceEdge系列可透過EdgeEye實現遠端監看功能,以確保相關的數值維持在正常範圍內,舉凡CPU/GPU使用量與溫度、記憶體負載、儲存空間狀態,甚至是近期將可瀏覽電池狀態、環境指標等。另外,若系統已嚴重損壞或處於開發期間,只要長按裝置上方的智慧按鈕(iTons),即可輕易達成一鍵還原功能。

DeviceEdge Mini系列分成不同的組態,各自有其特色。關於M2的一大特色絕對是擁有2組供電端設備(PSE),可透過乙太網路線提供電力給2組PoE相機,且傳輸距離長達100公尺,特別適合部署於安防場域與偵測系統。


應用

防盜偵測


人臉辨識


跌倒偵測與預防



產品規格

Model Number
AIE-CN12
Processor
CPU
6-core NVIDIA Carmel ARM®v8.2 64-bit CPU 6MB L2 + 4MB L3
GPU
384-core NVIDIA Volta™ GPU with 48 Tensor Cores
Memory
8 GB 128-bit LPDDR4
Storage
16GB eMMC 5.1 Flash
AI Performance
14 TOPS (INT8) at 10W
21 TOPS (INT8) at 15W
System

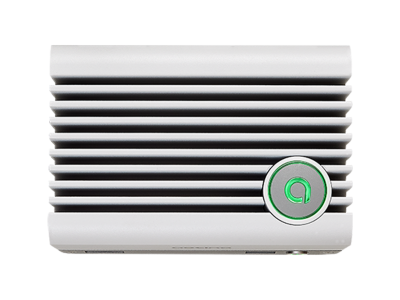

AI Button
Button "a" on top of the system called "iTons"
one step for system recovery

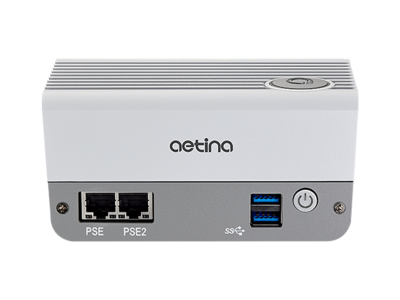

Front I/O
2x USB 3.2 Gen1 TypeA
1x Power button
2x RJ45(Support PoE PSE 802.3 af, total power:15W)

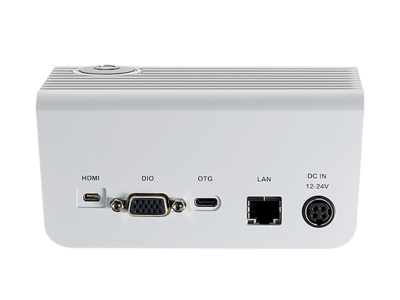

Rear I/O
1x USB Type-C (OTG only)
1x DB15 female connector (5x GPIO, 1x UART, 1x I2C, 1x CAN bus)
1x HDMI 1.4 with Micro HDMI D-Type connector
1x 4pin connector for DC-in
Side I/O
1x Recovery button
1x Reset button
2x Antenna(optional)
Expansion (Standard)
1x M.2 M-key 2242:NVMe 128G SSD(build-in)
Expansion (Optional)
1x M.2 E-key 2230:Wifi/BT function
OS Support
Ubuntu 18.04
Power Supply
Power Requirement
DC-in 12V~24V(DC Jack 4pin)
Mechanical
Dimensions(W x D x H)
132.6 x88.7 x 63.55mm
Weight
970g
Mounting
VESA
Environmental
Operating Temperature
-20°C ~ +50°C
Storage Temperature
-40°C ~ +85°C
Operating Humidity
10% ~ 90%
Cerification
CE / FCC

訂購訊息

Model Number Description
AIE-CN12-A0 AIE-CN12 Fanless system with Jetson Xavier NX including DB15 Cable, 128G SSD, -20°C to +50°C
AIE-CT42-A0 AIE-CT42 Fanless system with Jetson TX2 NX including DB15 Cable, 128G SSD, -20°C to +50°C

相關周邊

無線通訊模組

/upload/Peripherals/F_20200904143247Sk5K_j.PNG

Wireless-AC模組

Dual Band Wireless-AC M.2 2230

NVIDIA® Jetson Xavier™ NX
NVIDIA® Jetson TX2™ NX
Model Number
Model Number
AIE-CN12
AIE-CT42
Processor
CPU
6-core NVIDIA Carmel ARM®v8.2 64-bit CPU 6MB L2 + 4MB L3
Dual-core NVIDIA Denver 2 64-bit CPU and quad-core Arm® Cortex®-A57 MPCore processor complex
GPU
384-core NVIDIA Volta™ GPU with 48 Tensor Cores
NVIDIA Pascal architecture with 256 NVIDIA® CUDA® cores
Memory
8 GB 128-bit LPDDR4
4 GB 128-bit LPDDR4
Storage
16GB eMMC 5.1 Flash
16GB eMMC 5.1 Flash
AI Performance
14 TOPS (INT8) at 10W
21 TOPS (INT8) at 15W
1.33 TFLOPS at 7.5-15W
System
AI Button
Button "a" on top of the system called "iTons"
one step for system recovery
Button "a" on top of the system called "iTons"
one step for system recovery
Front I/O
2x USB 3.2 Gen1 TypeA
1x Power button
2x RJ45(Support PoE PSE 802.3 af, total power:15W)
2x USB 3.2 Gen1 TypeA
1x Power button
2x RJ45(Support PoE PSE 802.3 af, total power:15W)
Rear I/O
1x USB Type-C (OTG only)
1x DB15 female connector (5x GPIO, 1x UART, 1x I2C, 1x CAN bus)
1x HDMI 1.4 with Micro HDMI D-Type connector
1x 4pin connector for DC-in
1x USB Type-C (OTG only)
1x DB15 female connector (5x GPIO, 1x UART, 1x I2C, 1x CAN bus)
1x HDMI 1.4 with Micro HDMI D-Type connector
1x 4pin connector for DC-in
Side I/O
1x Recovery button
1x Reset button
2x Antenna(optional)
Expansion (Standard)
1x M.2 M-key 2242:NVMe 128G SSD(build-in)
1x M.2 M-key 2242: NVMe 128G SSD(build-in)
Expansion (Optional)
1x M.2 E-key 2230:Wifi/BT function
1x M.2 @2230 E-key : wifi/BT function1x M.2 E-key 2230: Wifi/BT function
OS Support
Ubuntu 18.04
Ubuntu 18.04
Power Supply
Power Requirement
DC-in 12V~24V(DC Jack 4pin)
DC-in 12V~24V(DC Jack 4pin)
Mechanical
Dimensions(W x D x H)
132.6 x88.7 x 63.55mm
132.6 x88.7 x 63.55mm
Construction
Weight
970g
970g
Mounting
VESA
VESA
Environmental
Operating Temperature
-20°C ~ +50°C
-20°C ~ +50°C
Storage Temperature
-40°C ~ +85°C
-40°C ~ +85°C
Operating Temperature
10% ~ 90%
10% ~ 90%
Cerification
CE / FCC
CE / FCC
