AIE-PO22/32 | AIE-PN32/42
• 支援NVIDIA Jetson Orin™ NX 和Orin Nano™ 模組
• 1 x M.2 B-Key, 1 x M.2 E-Key, 1 x M.2 M-Key (內建128GB)
• 2 x RJ-45 GbE ports
• 寬輸入電壓設計 12至24 VDC
• 作業溫度 -25°C ~ +55°C
• 無風扇設計
 |
產品介紹
| • 體積最小的Jetson模組 高達80倍的AI效能可實現AI推理 |
| NVIDIA Jetson Orin™ NX模組提供高達100 TOPS的效能，是NVIDIA Jetson AGX Xavier™模組的3倍多，NVIDIA Jetson Xavier™ NX模組的5倍左右；NVIDIA Jetson Orin Nano™提供高達40 TOPS的效能，是NVIDIA Jetson Nano™模組的80倍。換言之，NVIDIA Jetson Orin NX和Orin Nano模組為體積最小的Jetson模組建立了新的主流和入門級邊緣AI標準。 |
| • 豐富M.2介面 內外儲存擴充兼備 |
| AIE-PO22/32和AIE-PN32/42是擴充能力高的邊緣運算無風扇系統，提供1組M.2 B-Key用於LTE/5G、1組M.2 E-Key用於Wifi/BT、1組M.2 M-Key用於儲存。為避免邊緣運算的資料儲存空間不足，更支援外部M.2 2242 NVMe的高速傳輸與擴充。 |
| • 寬輸入電壓和和無風扇設計 適用於智慧城市和智慧農業 |
|
為了滿足智慧城市和智慧農業等各種應用的需求，高成本效益的維護和高可靠性至關重要。因此，AIE-PO22/32和AIE-PN32/42特別設計了無風扇和靜音機制、能在-25°C至55°C的作業溫度範圍內運作。此外，支援12至24 VDC的廣輸入電源範圍，提供彈性的電源供應選擇。 |
* AIE-PO22/32和AIE-PN32/42是初步產品，因此規格如有更改，恕不另行通知。
產品規格
| Model Number | AIE-PO22 | AIE-PO32 | AIE-PN32 | AIE-PN42 |
| Module Compatibility | NVIDIA Jetson Orin Nano 4GB | NVIDIA Jetson Orin Nano 8GB | NVIDIA Jetson Orin NX 8GB | NVIDIA Jetson Orin NX 16GB |
| AI Performance | 20 TOPS | 40 TOPS | 70 TOPS | 100 TOPS |
| GPU | 512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores | 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores | 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores | |
| CPU | 6-core Arm® Cortex®-A78AE v 8.2 64-bit 1.5MB L2 + 4MB L3 | 6-core Arm® Cortex®-A78AE v 8.2 64-bit 1.5MB L2 + 4MB L3 | 8-core Arm® Cortex®-A78AE v 8.2 64-bit 2MB L2 + 4MB L3 | |
| Memory | 4GB 64-bit LPDDR5 34 GB/s | 8GB 128-bit LPDDR5 68 GB/s | 8GB 128-bit LPDDR5 102.4 GB/s | 16GB 128-bit LPDDR5 102.4 GB/s |
| Storage | 1 x M.2 M-Key 2242 (NVMe 128GB built-in) | |||
| Display | 1 x HDMI 2.0 Type A | |||
| LAN | 2 x RJ-45 GbE ports | |||
| USB | 2 x USB 3.2 Gen2 Ty pe A (supports up to 10Gbps shared) 1 x OTG Type-C |
|||

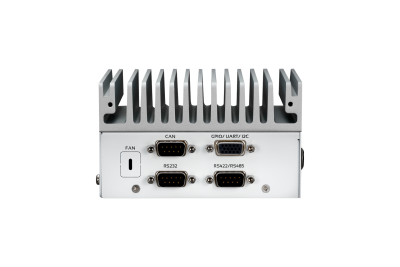

| I/O Interfaces | 5 x GPIO, 1 x UART, 1 x I2C, 1 x RS-232, 1 x RS-422/485 (2-in-1), 1 x CAN (isolation; support CAN FD), 1 x microSIM Card Slot |
|||
| Expansion | 1 x M.2 B-Key 3042/3052 (LTE/4G/5G) 1 x M.2 E-Key 2230 (WiFi/BT) |
|||
| MISC. Function | 1 x Power Button, 1 x Recovery Button, 1 x Reset Button | |||
| Power Input/Connector | DC-in 12-24VDC / 4-Pin DC Jack Power Connector | |||
| Power consumption | Idle: 5.5 W Full Loading: 25.95* W |
Idle: 6.4 W Full Loading: 35.45* W |
||
| *For more test condition information, please refer to user manual | ||||
| Dimension (WxDxH) | 137.6 x 125 x 71.5 mm (5.41 x 4.92 x 2.81 in) | |||
| Mounting | Wall Mount (optional) / Din Rail (optional) | |||
| Net Weight | 1.36 kg (3 lb) | |||
| Vibration | 1 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis | |||
| Shock | 10 G, IEC 60068-2-27, half sine, 11 ms duration | |||
| Temperature | Operating: -25°C ~ +55°C (-13°F ~ +131°F) with 0.5 m/s air f low Storage: -40°C ~ +85°C (-40°F ~ +185°F) |
|||
| Humidity | 95% @ 40°C (104°F) (non-condensing) | |||
| Software Support | Linux (Support Jetpack 5.0 above) | |||
| Certification | CE / FCC Class A / UKCA | |||
產品規格
訂購訊息
| Model Number | Description |
|---|---|
|
AIE-PO22-1-A1 |
Orin Nano 4GB, 1 x HDMI, 2 x GbE, 2 x USB, 128GB SSD, B/E/M Key, 12 to 24 VDC input, -25℃~ +55℃ |
|
AIE-PO32-1-A1 |
Orin Nano 8GB, 1 x HDMI, 2 x GbE, 2 x USB, 128GB SSD, B/E/M Key, 12 to 24 VDC input, -25℃~ +55℃ |
|
AIE-PN32-1-A1 |
Orin NX 8GB, 1 x HDMI, 2 x GbE, 2 x USB, 128GB SSD, B/E/M Key, 12 to 24 VDC input, -25℃~ +55℃ |
|
AIE-PN42-1-A1 |
Orin NX 16GB, 1 x HDMI, 2 x GbE, 2 x USB, 128GB SSD, B/E/M Key, 12 to 24 VDC input, -25℃~ +55℃ |
