• 支援NVIDIA Jetson Orin™ NX 8GB/16GB模組
• 具備2或4組IEEE 802.3af GbE PSE連接埠

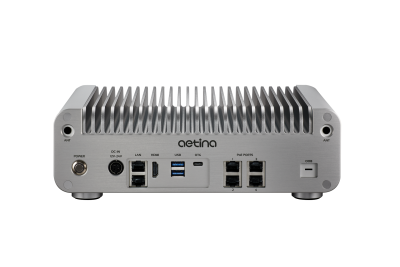

• 具備2 x GbE、2 x USB 3.2、1 x OTG Type-C
• 支援1 x M.2 B-Key、1 x M.2 E-Key以及1 x M.2 M-Key插槽
• 寬輸入電壓設計12至 24 VDC
• 作業溫度 -25°C ~ +55°C
• 無風扇設計
• 支援安提國際EdgeEye簡化邊緣系統遠端管理
作為可靠和強大的AI推論系統,安提國際的無風扇多功能擴展邊緣AI系統- AIE-PN33/43-4PSE設計並整合了 4個PSE PoE連結埠用於POE Camera的連接,配備多功能I/O和擴展選項,實現在多個垂直市場中彈性部署。內建NVIDIA® Jetson Orin™ NX運算模組,驅動高達100 TOPS的AI效能,為客戶提供完整頻寬和充裕算力,以加速和擴展數據連接,在邊緣端實現即時AI推論。
• 高達100 TOPS的AI效能,實現低延遲AI推論 |
此系統整合NVIDIA Jetson Orin NX運算模組,提供高達100 TOPS優越的人工智慧效能,是NVIDIA Jetson Xavier™ NX運算模組的五倍,憑藉1024核心NVIDIA® Ampere架構GPU及32個Tensor Core,建立了新的主流級邊緣AI標準。 |
• 豐富的M.2擴展插槽和PSE連接埠 |
AIE-PN33/43-4PSE是擴充能力高的邊緣運算無風扇系統,提供1組M.2 B-Key可用於LTE/5G模組擴充、1組M.2 E-Key用於Wifi/BT和一組M.2 M-Key用於NVMe高速存儲硬體的擴充。此外,該系統搭載4組PSE連接埠支援IEEE 802.3af標準,同時每埠可為POE Camera供電高達15W。 |
• 寬輸入電壓和無風扇設計,適用於智慧城市和智慧農業 |
AIE-PN33/43-4PSE透過4組PSE連接埠為4個POE Cameras供電,大幅減少佈線的需求。該系統的無風扇設計和靜音機制、-25°C 至 55°C 作業溫度範圍、以及12至24 VDC的彈性電源輸入範圍,皆能確保高可靠性的運作,使AIE-PN33/43-4PSE成為無論是交通路邊監控、智慧城市到工廠自動化、智慧農業到工地安全,適用於各種挑戰邊緣環境中的AI視覺檢測、識別與跟踪的理想設備。 |
• 支援EdgeEye便利遠程設備管理 |
AIE-PN33/43-4PSE支援EdgeEye遠端監控和控制功能,可大幅簡化邊緣AI系統遠端管理。IT人員可透過EdgeEye雲端平台從中心位置便利地監控、控制和重新啟動位於不同地點的邊緣系統。 |
Model Number | AIE-PN33-2PSE | AIE-PN33-4PSE | AIE-PN43-2PSE | AIE-PN43-4PSE |
Module Compatibility | NVIDIA Jetson Orin NX 8GB | NVIDIA Jetson Orin NX 16GB | ||
AI Performance | 70 TOPS | 100 TOPS | ||
GPU | 1024 Core NVIDIA Ampere, with 32 Tensor Cores | 1024 Core NVIDIA Ampere, with 32 Tensor Cores | ||
CPU | 6-core Arm® Cortex®-A78AE v 8.2 64-bit 1.5MB L2 + 4MB L3 | 8-core Arm® Cortex®-A78AE v 8.2 64-bit 2MB L2 + 4MB L3 | ||
Memory | 8GB 128-bit LPDDR5 102.4 GB/s | 16GB 128-bit LPDDR5 102.4 GB/s | ||
Storage | 1 x M.2 NVMe M-Key 2242 (128GB built-in) | |||
Display | 1 x HDMI 2.0 Type A | |||
TPM | Not supported | |||
LAN | 2 x RJ-45 GbE Ports | |||
PoE Interface | 2 x RJ-45 GbE PSE (IEEE 802.3af compliant, Power Output 15W per Port) |
4 x RJ-45 GbE PSE (IEEE 802.3af compliant, Power Output 15W per Port) |
2 x RJ-45 GbE PSE (IEEE 802.3af compliant, Power Output 15W per Port) |
4 x RJ-45 GbE PSE (IEEE 802.3af compliant, Power Output 15W per Port) |
USB | 2 x USB 3.2 Gen2 Type A (supports up to 10Gbps shared) 1 x OTG Type-C |
|||

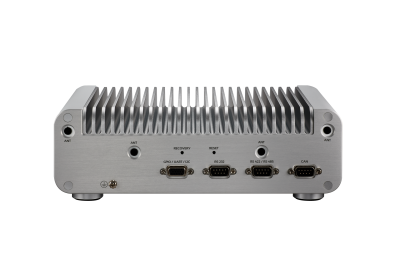

I/O Interfaces | 1 x I2C, 5 x GPIO, 1 x UART, 1 x RS-232, 1 x RS-422/485, 1 x CAN (isolation; support CAN FD) |
|||
Expansion | 1 x M.2 B-Key 3042/3052 (LTE/5G) 1 x M.2 E-Key 2230 (WiFi/BT) 1 x M.2 M-Key 2242 (NVMe 128GB built-in) |
|||
MISC. Function | 1 x Power / 1 x Recovery / 1 x Reset Button | |||
Power Input/Connector | DC-in 12 to 24 VDC / 4-Pin DC Jack Power Connector | |||
Power Consumption | Idle: 6.413 W Full Loading: 89.13* W |
Idle: 6.413 W Full Loading: 89.13* W |
||
*For more test condition information, please refer to the user manual | ||||
Dimension (WxDxH) | 270 x 195 x 80 mm (10.63 x 7.67 x 3.15 in) | |||
Mounting | Wall Mount (optional) / Din Rail (optional) | |||
Net Weight | TBC kg (TBC lb) | |||
Vibration | 1 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis | |||
Shock | 10 G, IEC 60068-2-27, half sine, 11 ms duration | |||
Temperature | Operating Temperature: -25°C ~ +55°C (-13°F ~ +131°F) with 0.5 m/s airflow Storage Temperature: -40°C ~ +85°C (-40°F ~ +185°F) |
|||
Humidity | 95% @ 40°C (104°F) (non-condensing) | |||
Software Support | Linux (Support Jetpack 5.0 above) | |||
Certification | CE / FCC Class A / UKCA |
*Product specifications are subject to change without prior notice
Model Number | Description |
---|---|
AIE-PN33-2PSE-1-A1 |
Orin NX 8GB, 1 x HDMI, 2 x GbE, 2 x PoE, 2 x USB, 128GB SSD, B/E/M Key, 12 to 24 VDC input, -25°C ~ +55°C |
AIE-PN33-4PSE-1-A1 |
Orin NX 8GB, 1 x HDMI, 2 x GbE, 4 x PoE, 2 x USB, 128GB SSD, B/E/M Key, 12 to 24 VDC input, -25°C ~ +55°C |
AIE-PN43-2PSE-1-A1 |
Orin NX 16GB, 1 x HDMI, 2 x GbE, 2 x PoE, 2 x USB, 128GB SSD, B/E/M Key, 12 to 24 VDC input, -25°C ~ +55°C |
AIE-PN43-4PSE-1-A1 |
Orin NX 16GB, 1 x HDMI, 2 x GbE, 4 x PoE, 2 x USB, 128GB SSD, B/E/M Key, 12 to 24 VDC input, -25°C ~ +55°C |
