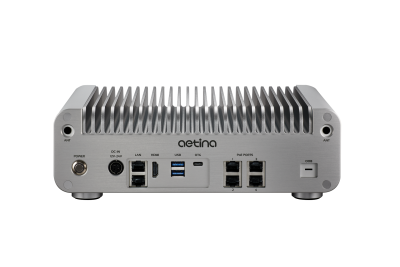

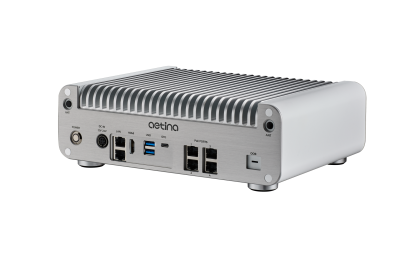

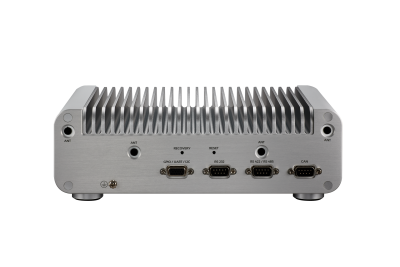

side front back
Prev
Next
side front back

AIE-PN33/43-2PSE | AIE-PN33/43-4PSE

• Support NVIDIA Jetson Orin™ NX 8GB/16GB module

• 2 or 4 x IEEE 802.3af GbE PSE ports

• 2 x GbE port, 2 x USB 3.2, 1 x OTG Type-C

• 1 x M.2 B-Key, 1 x M.2 E-Key, 1 x M.2 M-Key slot

• Wide input voltage range from 12 to 24 VDC

• Operating Temperature -25°C ~ +55°C

• Fanless Design

• Supports device remote management via EdgeEye

NVIDIA Preferred Partner

Overview

Spotting as reliable and powerful AI inference device, the Aetina fanless and versatile expansion edge AI system – AIE-PN33/43-4PSE is designed to incorporate 4 x PSE PoE ports for PoE cameras connectivity, coupled with versatile I/O and expansion options to enable seamless deployment across multiple vertical markets. Leveraging the full power of NVIDIA® Jetson Orin™ NX, the AIE-PN33/43-4PSE drives up to 100 TOPS of AI performance, offering users full bandwidth and power package to complement and scale video inputs for AI inference on the edge.


● Up to 100 TOPS AI performance enables AI inference on the Edge
AIE-PN33/43-4PSE drives for exceptional AI performance by integrating with the power of NVIDIA Jetson Orin NX module. It boasts up to 100 TOPS of AI performance, offering 5 times performance upgrade than Jetson Xavier™ NX module. Thanks to the 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores, AIE-PN33/43-4PSE propels a new standard for mainstream edge AI devices.
● Comprehensive M.2 expansion and PSE ports
AIE-PN33/43-4PSE is the fanless system with high expansion ability, built-in 1x M.2 B-Key for LTE/5G, 1x M.2 E-Key for Wifi/BT and 1x M.2 M-Key for NVMe expansion storage with fast data transmission. Its on-board 4 x PSE ports, each port supports IEEE 802.3af compliance and can supply up to 15W to PoE camera.
● Wide input power and fanless design for smart city and smart agriculture
AIE-PN33/43-4PSE brings AI-based visual analytics to the edge. It powers up to 4 PoE cameras over four PSE ports while eliminating cabling. Its fanless design with -25°C to 55°C temperature range and 12-24V DC input enables reliable, maintenance-free operation. In the end, that makes AIE-PN33/43-4PSE perfect for AI-driven visual detection, recognition, and tracking at the challenge edge - from traffic roadside monitoring and smart cities to factories, farms, and construction sites
● Support EdgeEye for Device Remote Management

Aetina's AIE-PN33/43-4PSE simplifies fleet management for edge AI systems with built-in support for EdgeEye remote monitoring and control. IT staff can use the EdgeEye cloud platform to monitor, control, and reboot distributed edge systems conveniently from a central location.

* AIE-PN33/43-2PSE and AIE-PN33/43-4PSE are preliminary products, so the specifications are subject to change without prior notice.

Specifications

Model Number AIE-PN33-2PSE AIE-PN33-4PSE AIE-PN43-2PSE AIE-PN43-4PSE
Module Compatibility NVIDIA Jetson Orin NX 8GB NVIDIA Jetson Orin NX 16GB
AI Performance 70 TOPS 100 TOPS
GPU 1024 Core NVIDIA Ampere, with 32 Tensor Cores 1024 Core NVIDIA Ampere, with 32 Tensor Cores
CPU 6-core Arm® Cortex®-A78AE v 8.2 64-bit 1.5MB L2 + 4MB L3 8-core Arm® Cortex®-A78AE v 8.2 64-bit 2MB L2 + 4MB L3
Memory 8GB 128-bit LPDDR5 102.4 GB/s 16GB 128-bit LPDDR5 102.4 GB/s
Storage 1 x M.2 NVMe M-Key 2242 (128GB built-in)
Display 1 x HDMI 2.0 Type A
TPM Not supported
LAN 2 x RJ-45 GbE Ports
PoE Interface 2 x RJ-45 GbE PSE
(IEEE 802.3af compliant,
Power Output 15W per Port)		 4 x RJ-45 GbE PSE
(IEEE 802.3af compliant,
Power Output 15W per Port)		 2 x RJ-45 GbE PSE
(IEEE 802.3af compliant,
Power Output 15W per Port)		 4 x RJ-45 GbE PSE
(IEEE 802.3af compliant,
Power Output 15W per Port)

USB 2 x USB 3.2 Gen2 Type A (supports up to 10Gbps shared)
1 x OTG Type-C
I/O Interfaces 1 x I2C,
5 x GPIO,
1 x UART,
1 x RS-232,
1 x RS-422/485,
1 x CAN (isolation; support CAN FD)
Expansion 1 x M.2 B-Key 3042/3052 (LTE/5G)
1 x M.2 E-Key 2230 (WiFi/BT)
1 x M.2 M-Key 2242 (NVMe 128GB built-in)
MISC. Function 1 x Power / 1 x Recovery / 1 x Reset Button
Power Input/Connector DC-in 12 to 24 VDC / 4-Pin DC Jack Power Connector
Power Consumption Idle: 6.413 W
Full Loading: 89.13* W		 Idle: 6.413 W
Full Loading: 89.13* W
  *For more test condition information, please refer to the user manual
Dimension (WxDxH) 270 x 195 x 80 mm (10.63 x 7.67 x 3.15 in)
Mounting Wall Mount (optional) / Din Rail (optional)
Net Weight TBC kg  (TBC lb)
Vibration 1 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
Shock 10 G, IEC 60068-2-27, half sine, 11 ms duration
Temperature Operating Temperature: -25°C ~ +55°C (-13°F ~ +131°F) with 0.5 m/s airflow
Storage Temperature: -40°C ~ +85°C (-40°F ~ +185°F)
Humidity 95% @ 40°C (104°F) (non-condensing)
Software Support Linux (Support Jetpack 5.0 above)
Certification CE / FCC Class A / UKCA

*Product specifications are subject to change without prior notice

Specifications

Start to compare
0

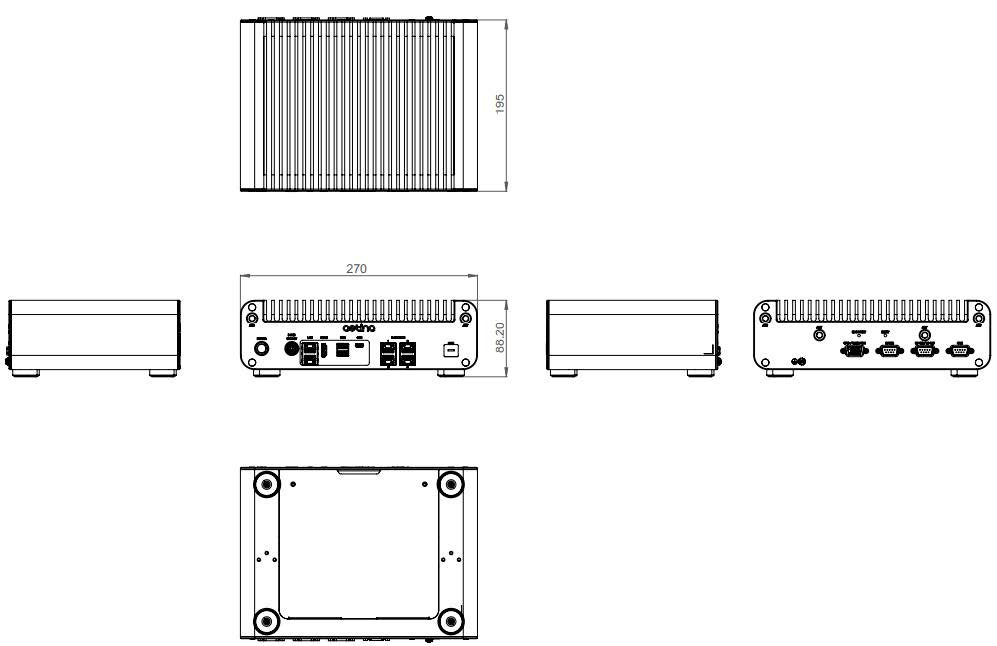

Dimensions

AIE-PN33_43-2PSE_64PSE

Ordering Information

Model Number Description

AIE-PN33-2PSE-1-A1

Orin NX 8GB, 1 x HDMI, 2 x GbE, 2 x PoE, 2 x USB, 128GB SSD, B/E/M Key, 12 to 24 VDC input, -25°C ~ +55°C

AIE-PN33-4PSE-1-A1

Orin NX 8GB, 1 x HDMI, 2 x GbE, 4 x PoE, 2 x USB, 128GB SSD, B/E/M Key, 12 to 24 VDC input, -25°C ~ +55°C

AIE-PN43-2PSE-1-A1

Orin NX 16GB, 1 x HDMI, 2 x GbE, 2 x PoE, 2 x USB, 128GB SSD, B/E/M Key, 12 to 24 VDC input, -25°C ~ +55°C

AIE-PN43-4PSE-1-A1

Orin NX 16GB, 1 x HDMI, 2 x GbE, 4 x PoE, 2 x USB, 128GB SSD, B/E/M Key, 12 to 24 VDC input, -25°C ~ +55°C

Downloads

Document
Model Name File Name OS Version Update Date Download
Jetson Orin Series Aetina_Success Story_Dralle v1.0 2024-05-22 View
Jetson Series Aetina_Jetson Series_brochure v2.0 2024-05-21 View
Jetson Orin Series Aetina_Peripherals List for Jetson Orin Series v1.6 2024-11-14 View
AIE-PN33/43-2PSE
AIE-PN33/43-4PSE 		Aetina_AIE-PN33_43-2&4PSE_datasheet v1.0 2024-04-02 View
