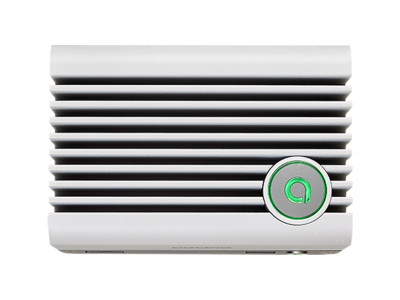

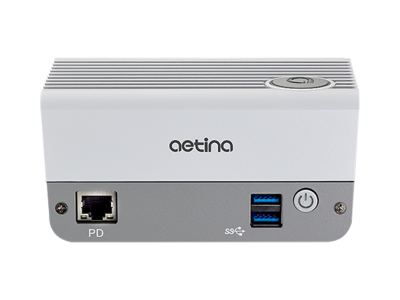

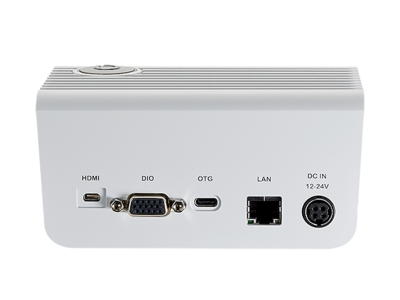

DeviceEdge Mini_M1_ss DeviceEdge Mini_M1_front DeviceEdge Mini_M1_back DeviceEdge Mini_M1_iTons
Prev
Next
DeviceEdge Mini_M1_ss DeviceEdge Mini_M1_front DeviceEdge Mini_M1_back DeviceEdge Mini_M1_iTons

DeviceEdge Mini Series - M1

支援PD供電,有利於簡易佈線
緊湊、高效能、低功耗、無風扇靜音設計
EdgeEye:遠端監看裝置狀態之平台、iTons:智能按鈕,一鍵還原系統
依效能需求,彈性選擇模組:NVIDIA® Jetson Nano™, Xavier™ NX and TX2 NX module
資料儲存容量擴充至128G
適合部署於多元的邊緣運算領域如智慧城市、智慧工廠、智慧零售等


產品介紹

儘管DeviceEdge Mini系列為掌上型大小,依舊以高效能、低功耗聞名,尤其適合部署於空間狹小的場域。採用無風扇靜音設計,不僅減少運轉時產生的噪音,更省去清理風扇的維護成本。在不變動機構設計的情況下,用戶可根據不同的運算效能需求,自由挑選合適的模組。另外,此系列擴充至128G,以解決邊緣運算時容易發生儲存容量不足的問題。



為了讓使用者充分掌握所有部署裝置的狀態,DeviceEdge系列可透過EdgeEye實現遠端監看功能,以確保相關的數值維持在正常範圍內,舉凡CPU/GPU使用量與溫度、記憶體負載、儲存空間狀態,甚至是近期將可瀏覽電池狀態、環境指標等。另外,若系統已嚴重損壞或處於開發期間,只要長按裝置上方的智慧按鈕(iTons),即可輕易達成一鍵還原功能。

DeviceEdge Mini系列分成不同的組態,各自有其特色。其中,M1最大的亮點是支援受電端設備(PD)供電,也就是不用額外接電源線,即可接收乙太網路供電。如此一來,用戶可簡易佈線、節省空間、降低物料與人力成本。


應用

智慧城市


智慧工廠


智慧零售



產品規格

Model Number
AIE-CO11
Processor
CPU
Quad-core ARM Cortex-A57 MPCore processor
GPU
NVIDIA Maxwell architecture with 128 NVIDIA CUDA® cores
Memory
4 GB 64-bit LPDDR4
Storage
16 GB eMMC 5.1
AI Performance
0.5 TFLOPS (FP16) at 5-10W
System
AI Button
Button "a" on top of the system called "iTons"
one step for system recovery
Front I/O
2x USB 3.2 Gen1
1x Power button
1x RJ45(Support PD 802.3 at)
Rear I/O
1x USB Type-C (OTG only)
1x DB15 male connector (5x GPIO, 1x UART, 1x I2C, 1x CAN bus, default support 3.3V)
1x RJ45 10/100/1000 Gigabit Ethernet
1x HDMI 1.4 with D Type connector
1x 4pin connector for DC-in
Side I/O
1x recovery button (Only for Jetson Recovery mode setting)
1x reset button
2x Antenna connector (optional)
Expansion (Standard)
1x M.2 @2242 M-key : NVME 128G SSD
Expansion (Optional)
1x M.2 @2230 E-key : wifi/BT function
OS Support
Ubuntu 18.04
Power Supply
Power Requirement
DC-in 12V~24V
Environmental
Operating Temperature
-20°C ~ +50°C
Storage Temperature
-40°C ~ +85°C
Operating Temperature
10% ~ 90%

訂購訊息

Model Number Description
AIE-CN11-A0 AIE-CN11 Fanless system with Jetson Xavier NX including DB15 Cable, 128G SSD, -20°C to +50°C
AIE-CO11-A0 AIE-CO11 Fanless system with Jetson Nano including DB15 Cable, 128G SSD, -20°C to +50°C
AIE-CT41-A0 AIE-CT41 Fanless system with Jetson TX2 NX including DB15 Cable, 128G SSD, -20°C to +50°C

相關周邊

影像偵測模組

/upload/Peripherals/F_20210531172499gjWCR_.PNG

12M USB3 Camera

IMX_226 CMOS sensor, 4024×3036/29fps

無線通訊模組

/upload/Peripherals/F_20200904143247Sk5K_j.PNG

Wireless-AC模組

Dual Band Wireless-AC M.2 2230

NVIDIA® Jetson Nano™
NVIDIA® Jetson Xavier™ NX
NVIDIA® Jetson TX2™ NX
Model Number
Model Number
AIE-CO11
AIE-CN11
AIE-CT41
Processor
CPU
Quad-core ARM Cortex-A57 MPCore processor
6-core NVIDIA Carmel ARM®v8.2 64-bit CPU 6MB L2 + 4MB L3
Dual-core NVIDIA Denver 2 64-bit CPU and quad-core Arm® Cortex®-A57 MPCore processor complex
GPU
NVIDIA Maxwell architecture with 128 NVIDIA CUDA® cores
384-core NVIDIA Volta™ GPU with 48 Tensor Cores
NVIDIA Pascal architecture with 256 NVIDIA® CUDA® cores
Memory
4 GB 64-bit LPDDR4
8 GB 128-bit LPDDR4
4 GB 128-bit LPDDR4
Storage
16 GB eMMC 5.1
16GB eMMC 5.1
16GB eMMC 5.1
AI Performance
0.5 TFLOPS (FP16) at 5-10W
14 TOPS (INT8) at 10W
21 TOPS (INT8) at 15W
1.33 TFLOPS at 7.5-15W
System
AI Button
Button "a" on top of the system called "iTons"
one step for system recovery
Button "a" on top of the system called "iTons"
one step for system recovery
Button "a" on top of the system called "iTons"
one step for system recovery
Front I/O
2x USB 3.2 Gen1
1x Power button
1x RJ45(Support PD 802.3 at)
2x USB 3.2 Gen1
1x Power button
1x RJ45(Support PD 802.3 at)
2x USB 3.2 Gen1
1x Power button
1x RJ45(Support PD 802.3 at)
Rear I/O
1x USB Type-C (OTG only)
1x DB15 male connector (5x GPIO, 1x UART, 1x I2C, 1x CAN bus, default support 3.3V)
1x RJ45 10/100/1000 Gigabit Ethernet
1x HDMI 1.4 with D Type connector
1x 4pin connector for DC-in
1x USB Type-C (OTG only)
1x DB15 male connector (5x GPIO, 1x UART, 1x I2C, 1x CAN bus, default support 3.3V)
1x RJ45 10/100/1000 Gigabit Ethernet
1x HDMI 1.4 with D Type connector
1x 4pin connector for DC-in
1x USB Type-C (OTG only)
1x DB15 male connector (5x GPIO, 1x UART, 1x I2C, 1x CAN bus, default support 3.3V)
1x RJ45 10/100/1000 Gigabit Ethernet
1x HDMI 1.4 with D Type connector
1x 4pin connector for DC-in
Side I/O
1x recovery button (Only for Jetson Recovery mode setting)
1x reset button
2x Antenna connector (optional)
Expansion (Standard)
1x M.2 @2242 M-key : NVME 128G SSD
1x M.2 @2242 M-key : NVME 128G SSD
1x M.2 @2242 M-key : NVME 128G SSD
Expansion (Optional)
1x M.2 @2230 E-key : wifi/BT function
1x M.2 @2230 E-key : wifi/BT function
1x M.2 @2230 E-key : wifi/BT function
OS Support
Ubuntu 18.04
Ubuntu 18.04
Ubuntu 18.04
Power Supply
Power Requirement
DC-in 12V~24V
DC-in 12V~24V
DC-in 12V~24V
Environmental
Operating Temperature
-20°C ~ +50°C
-20°C ~ +50°C
-20°C ~ +50°C
Storage Temperature
-40°C ~ +85°C
-40°C ~ +85°C
-40°C ~ +85°C
Operating Temperature
10% ~ 90%
10% ~ 90%
10% ~ 90%
