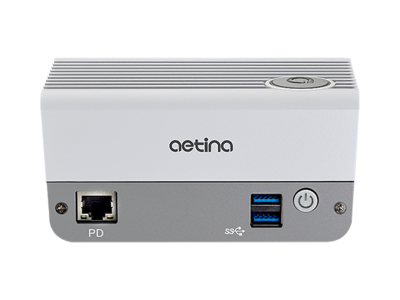

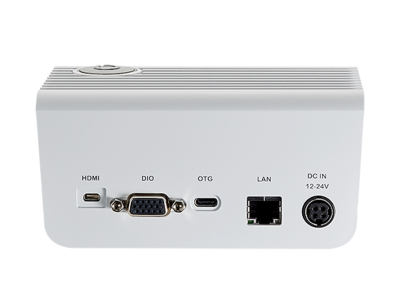

DeviceEdge Mini_M1_ss DeviceEdge Mini_M1_front DeviceEdge Mini_M1_back DeviceEdge Mini_M1_iTons
Prev
Next
DeviceEdge Mini_M1_ss DeviceEdge Mini_M1_front DeviceEdge Mini_M1_back DeviceEdge Mini_M1_iTons

AIE-CN11/CT41(Mini Series-M1)

Simplify installation with Powered Device(PD) support
Tiny, fanless, high performance and low-power consumption
Remote monitoring via EdgeEye; one-key recovery via button called iTons
Flexible choices:NVIDIA® Jetson Xavier™ NX and TX2 NX module
Expand storage into 128G
Suitable for various edge computing field such as smart city, factory, retail


Overview

The DeviceEdge Mini Series is palm-size, featuring high performance and low power consumption to fit in limited space. With fanless design, it runs silently and saves the maintenance cost. Users are free to choose various modules based on different performance demands without changing mechanism design. To solve the problem of insufficient data storage in edge computing, the DeviceEdge Mini Series expanded into 128G with faster data transmission.



To fully take control of all the deployed devices, the DeviceEdge Mini Series realizes remote monitoring via EdgeEye. It shows diversified status of devices to help users check if it’s in the range of normal values, including CPU/GPU loading and temperature, memory loading, storage status, even battery status and environmental indicators in the near future. When facing critical system failure or during the development stage, users easily attain one-key recovery via button called iTons.



There are diverse SKUs in the DeviceEdge Mini Series. For M1, it features Powered Device(PD) support. In other words, the M1 can receive electricity from Ethernet equipment without an adapter. By doing so, users are able to simplify installation, saving space, reducing the material and labor cost as well.


Application

Smart City


Smart Factory


Smart Retail



Specifications

Model Number
AIE-CN11
Processor
CPU
6-core NVIDIA Carmel ARM®v8.2 64-bit CPU 6MB L2 + 4MB L3
GPU
384-core NVIDIA Volta™ GPU and 48 Tensor Cores
Memory
8 GB 128-bit LPDDR4
Storage
16GB eMMC 5.1 Flash
AI Performance
14 TOPS (INT8) at 10W
21 TOPS (INT8) at 15W
System
AI Button
Button "a" on top of the system called "iTons"
one step for system recovery
Front I/O
2x USB 3.2 Gen1 TypeA
1x Power button
1x RJ45(Support PoE PD 802.3 at)
Rear I/O
1x USB Type-C (OTG only)
1x DB15 female connector (5x GPIO, 1x UART, 1x I2C, 1x CAN bus)
1x RJ45 10/100/1000 Gigabit Ethernet
1x HDMI 1.4 with Micro HDMI D-Type connector
1x 4pin connector for DC-in
Side I/O
1x Recovery button
1x Reset button
2x Antenna(optional)
Expansion (Standard)
1x M.2 M-key 2242 : NVMe 128G SSD
Expansion (Optional)
1x M.2 E-key 2230 : wifi/BT function
OS Support
Ubuntu 18.04
Power Supply
Power Requirement
DC-in 12V~24V(DC Jack 4pin)
Mechanical
Dimensions(W x D x H)
132.6 x88.7 x 63.55mm
Weight
970g
Mounting
VESA
Environmental
Operating Temperature
-20°C ~ +50°C
Storage Temperature
-40°C ~ +85°C
Operating Humidity
10% ~ 90%
Cerification
CE / FCC

Ordering Information

Model Number Description

AIE-CN11-1-A1

AIE-CN11 Fanless system with Jetson Xavier NX 8G including DB15 Cable, 128G SSD, -20°C to +50°C
AIE-CN21-1-A1 AIE-CN21 Fanless system with Jetson Xavier NX 16G including DB15 Cable, 128G SSD, -20°C to +50°C

AIE-CT41-1-A1

AIE-CT41 Fanless system with Jetson TX2 NX including DB15 Cable, 128G SSD, -20°C to +50°C



Peripherals

Communication Module

/upload/Peripherals/F_20200904111678dDu8p4.PNG

Wireless-AC Products

Dual Band Wireless-AC M.2 2230

Downloads

Model Name File Name OS Version Update Date Download
AIE-CN11 / AIE-CT41 Aetina_DeviceEdege_Mini_M1_datasheet v1.2 2022-09-21 View
Mini_M1 Aetina_DeviceEdege_Mini_M1_user manual v1.0 2022-02-16 View
Model Name File Name OS Version Update Date Download
Mini_M1 R32_7_1_XAVIER-NX_AIE-CN11_1 L4T R32.7.1-Jetpack 4.6.1 2022-06-30 View
NVIDIA® Jetson Xavier™ NX
NVIDIA® Jetson TX2™ NX
Model Number
Model Number
AIE-CN11
AIE-CT41
Processor
CPU
6-core NVIDIA Carmel ARM®v8.2 64-bit CPU 6MB L2 + 4MB L3
Dual-core NVIDIA Denver 2 64-bit CPU and quad-core Arm® Cortex®-A57 MPCore processor complex
GPU
384-core NVIDIA Volta™ GPU and 48 Tensor Cores
NVIDIA Pascal architecture with 256 NVIDIA® CUDA® cores
Memory
8 GB 128-bit LPDDR4
4 GB 128-bit LPDDR4
Storage
16GB eMMC 5.1 Flash
16GB eMMC 5.1 Flash
AI Performance
14 TOPS (INT8) at 10W
21 TOPS (INT8) at 15W
1.33 TFLOPS at 7.5-15W
System
AI Button
Button "a" on top of the system called "iTons"
one step for system recovery
Button "a" on top of the system called "iTons"
one step for system recovery
Front I/O
2x USB 3.2 Gen1 TypeA
1x Power button
1x RJ45(Support PoE PD 802.3 at)
2x USB 3.2 Gen1 TypeA
1x Power button
1x RJ45(Support PoE PD 802.3 at)
Rear I/O
1x USB Type-C (OTG only)
1x DB15 female connector (5x GPIO, 1x UART, 1x I2C, 1x CAN bus)
1x RJ45 10/100/1000 Gigabit Ethernet
1x HDMI 1.4 with Micro HDMI D-Type connector
1x 4pin connector for DC-in
1x USB Type-C (OTG only)
1x DB15 female connector (5x GPIO, 1x UART, 1x I2C, 1x CAN bus)
1x RJ45 10/100/1000 Gigabit Ethernet
1x HDMI 1.4 with Micro HDMI D-Type connector
1x 4pin connector for DC-in
Side I/O
1x Recovery button
1x Reset button
2x Antenna(optional)
Expansion (Standard)
1x M.2 M-key 2242 : NVMe 128G SSD
1x M.2 M-key 2242 : NVMe 128G SSD
Expansion (Optional)
1x M.2 E-key 2230 : wifi/BT function
1x M.2 E-key 2230 : wifi/BT function
OS Support
Ubuntu 18.04
Ubuntu 18.04
Power Supply
Power Requirement
DC-in 12V~24V(DC Jack 4pin)
DC-in 12V~24V(DC Jack 4pin)
Mechanical
Dimensions(W x D x H)
132.6 x88.7 x 63.55mm
132.6 x88.7 x 63.55mm
Construction
Weight
970g
970g
Mounting
VESA
VESA
Environmental
Operating Temperature
-20°C ~ +50°C
-20°C ~ +50°C
Storage Temperature
-40°C ~ +85°C
-40°C ~ +85°C
Operating Temperature
10% ~ 90%
10% ~ 90%
Cerification
CE / FCC
CE / FCC
