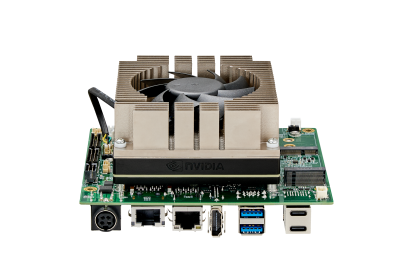

AIB-MX13/23
• 搭載NVIDIA Jetson AGX Orin™ 32GB/64GB運算核心
• 最高可達275 TOPS的AI算力
• 寬輸入電壓設計：9至36VDC
• 具有一組B-Key、一組E-Key、一組M-Key插槽
• 具有一組GbE及一組10GbE區域網路連接埠
• 作業溫度：-25°C至+80°C
 |
產品介紹
| •八倍AI算力實現低延遲AI推論 |
| NVIDIA Jetson AGX Orin運算核心提供最高275 TOPS算力，是NVIDIA® Jetson AGX Xavier™ 32GB運算模組的八倍以上。此平台內建2048 NVIDIA® CUDA® cores及64 Tensor Cores，能在邊緣端實現伺服器等級、低延遲的AI推論。 |
| •完善的M.2擴充及一組10GbE區域網路連接埠 |
| AIB-MX13/23作為具有高擴充性的平台，內建一組支援LTE/5G的M.2 B-Key、一組支援儲存硬體擴充的M.2 M-Key、一組支援Wifi/藍牙/GPS的M.2 E-Key。在網路方面，該平台搭載一組10GbE連接埠，提供了最高100億位元/秒的高速數據傳輸功能，比傳統GbE標準高了10倍。 |
| •寬輸入電壓及寬作業溫度設計，適用多種嵌入式應用 |
|
為了能適用於多種嵌入式應用，特別是如智慧工廠、智慧城市、智慧交通等涉及嚴苛環境的場域，AIB-MX13/23能夠在-25°C至+80°C內正常運行，並支援9至36VDC的寬輸入電壓。 |
產品規格
| Model Number | AIB-MX13 | AIB-MX23 |
| Module Compatibility | NVIDIA Jetson AGX ORIN 32GB | NVIDIA Jetson AGX ORIN 64GB |
| AI Performance | 200 TOPS | 275 TOPS |
| GPU | 1792-core NVIDIA Ampere GPU with 56 Tensor Cores | 2048-core NVIDIA Ampere GPU with 64 Tensor Cores |
| CPU | 8-core Arm® Cortex®-A78AE v 8.2 64-bit CPU 2MB L2 + 4MB L3 | 12-core Arm® Cortex®-A78AE v 8.2 64-bit CPU 3MB L2 + 6MB L3 |
| Memory | 32 GB 256-bit LPDDR5 204.8 GB/s | 64GB 256-bit LPDDR5 204.8 GB/s |
| Storage | 64GB eMMC 5.1 | |
| Display | 1 x HDMI 2.0 Type A | |
| TPM | TPM v2.0 (optional) | |
| RTC | With super capacitor, battery (optional) | |
| Audio | Line-out/Line-in/Mic (optional with daughter board) | |
| Camera Input | 1x 16-Lane MIPI Expansion Connector | |
| LAN | 1 x RJ-45 GbE port, 1 x RJ-45 10GbE port | |
| USB | 2 x USB 3.2 Gen1 Type A, 1 x OTG Type-C, 1 x USB 3.2 Gen2 Type-C | |
| I/O Interfaces | 2 x I2C, 1 x I2S, 1 x SPI, 5 x GPIO, 1 x 3.3VDC/0.5A, 2 x 5VDC/0.5A, 1 x 12VDC/0.5A, 1 x USB 2.0, 2 x UART, 1 x UART (Debug only), 1 x RS-232, 1 x RS-422/485 (2-in-1), 2 x CAN 2.0b (isolation; support CAN FD) |
|
| Expansion | 1 x M.2 B-Key 3042/3052 (LTE/4G/5G) 1 x M.2 E-Key 2230 (WiFi/BT) 1 x M.2 M-Key 2280 (supports NVMe; PCIe x4 Gen4) 1 x microSD Card Slot |
|
| MISC. Function | 1 x Power / 1 x Recov ery / 1 x Reset button | |
| Power Consumption | Idle: 6.655 W Full Loading: 52.25* W |
Idle: 6.9 W Full Loading: 72.25* W |
| *For more test condition information, please refer to user manual | ||
| Power Input/Connector | DC-in 9 to 36 VDC / 4-pin DC Jack Power Connector | |
| Dimension (WxDxH) | 131 x 120 x 62.9 mm (5.16 x 4.72 x 2.47 in) | |
| Net Weight | 0.701 kg (1.54 lb) w/ Fansink | |
| Vibration | 1 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis | |
| Shock | 10 G, IEC 60068-2-27, half sine, 11 ms duration | |
| Temperature | Operating Temp.: -25°C ~ +80°C (-13°F ~ +176°F) Storage Temp.: -40°C ~ +85°C (-40°F ~ +185°F) |
|
| Humidity | 95% @ 40°C (104°F) (non-condensing) | |
| Software Support | Linux (Support Jetpack 5.0 above) | |
| Certification | CE / FCC Class A / UKCA | |
產品規格
Written in preliminary datasheet
Model Number
AIB-MX13/23
訂購訊息
| Model Number | Description |
|---|---|
|
AIB-MX13-1-A1 |
AGX Orin 32GB, 1 x HDMI, 1 x GbE, 1 x 10GbE, 3 x USB, B/E/M Key, 9 to 36 VDC input, -25°C~80°C |
|
AIB-MX23-1-A1 |
AGX Orin 64GB, 1 x HDMI, 1 x GbE, 1 x 10GbE, 3 x USB, B/E/M Key, 9 to 36 VDC input, -25°C~80°C |
相關下載
| Model Name | 檔名 | 作業系統 | 版本 | 更新時間 | 下載 |
|---|---|---|---|---|---|
| AIB-MX13/23 | Aetina_Success-Story_Trueflaw | v1.0 | 2024-05-22 | View | |
| Jetson Orin Series | Aetina_Peripherals List for Jetson Orin Series | v1.5 | 2024-02-19 | View | |
| AIB-MX13/23 | Aetina_AIB-MX13/23_user manual | v1.3 | 2023-11-02 | View | |
| AIB-MX13/23 | Aetina_AIB-MX13/23_datasheet | v1.2 | 2024-01-11 | View |
| Model Name | 檔名 | 作業系統 | 版本 | 更新時間 | 下載 |
|---|---|---|---|---|---|
| AIB-MX13/AIB-MX23 AIE-KX13/AIE-KX23 AIE-PX13/AIE-PX23 |
PATCH_R36_3_0_ORIN_AGX_AIB-MX03_v1.2.0_Standard | JetPack 6.0 | 2024-09-12 | View | |
| AIB-MX13/AIB-MX23 AIE-KX13/AIE-KX23 |
R35_3_1_ORIN_AGX_AIB-MX03_v8_STD | L4T R35.3.1-JetPack 5.1.1 | 2023-08-16 | View |
