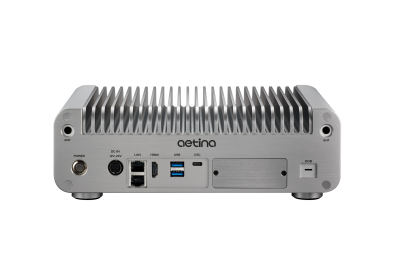

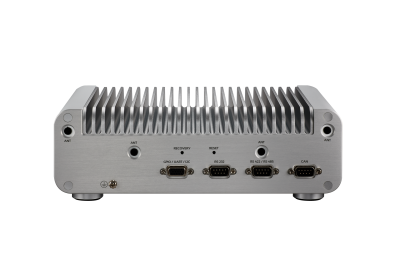

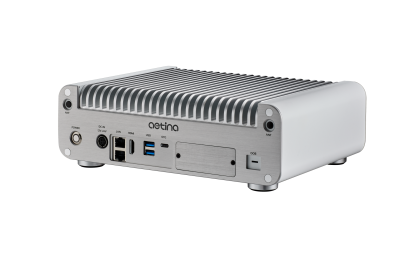

side front back
Prev
Next
side front back

AIE-PO23/33-3M | AIE-PN33/43-3M

• 支援NVIDIA Jetson Orin™ NX和Orin Nano™ (支援Super Mode) 模組

• 2 x RJ-45 GbE 連接埠

• 1 x M.2 B-Key、1 x M.2 E-Key

• 支援3 x M.2 M-Key插槽可擴充NVMe儲存, CAN 和 RS-232/RS-422/485

• 寬輸入電壓設計 12至24 VDC

• 作業溫度-25°C ~ +55°C

• 無風扇設計

• 支援安提國際EdgeEye簡化邊緣系統遠端管理

                                           
NVIDIA Preferred Partner NVIDIA Preferred Partner

產品介紹

作為可靠和強大的AI推論系統，安提國際的無風扇多功能擴展邊緣AI系統-AIE-PN33/43-3M設計並整合了廣泛的M.2擴充能力，配備多功能I/O和乙太網路連接埠，滿足AI部署的多元需求。搭載NVIDIA® Jetson Orin™ NX運算模組，驅動高達100 TOPS的AI效能。同時，該系統也兼容NVIDIA® Orin Nano™ 模組，例如安提所發布的AIE-PO23/33-3M。此兩款產品皆為客戶提供完整的頻寬和充裕的算力，以加速和擴展數據連接，在邊緣端實現即時AI推論。


● 高達100 TOPS的AI效能，實現低延遲AI推論
AIE-PN33/43-3M 和 AIE-PO23/33-3M 分別採用NVIDIA Jetson Orin NX和Orin Nano運算模組，實現卓越的AI效能和能源效率。憑藉NVIDIA Jetson Orin™ NX模組1024核心NVIDIA® Ampere架構GPU及32個Tensor Core，AIE-PN33/43-3M提供高達100 TOPS優越的人工智慧效能，可執行高解析度影像處理和實時推論。
● 豐富M.2介面，內外擴展兼備
AIE-PN33/43-3M 和 AIE-PO23/33-3M是擴充能力高的邊緣運算無風扇系統，支援彈性且豐富的 M.2 擴充能力。內置M.2 B-Key和 M.2 E-Key可支援LTE/5G和Wifi/BT模組彈性配置，以及3 組 M.2 M-Key用於 NVMe 高速存儲硬體或 CANBus，RS-232/422/485 的擴充。通過安提國際的 BSP整合服務與 NVIDIA Jetpack 工具套件，AIE-PN33/43-3M 和 AIE-PO23/33-3M是執行多種人工智慧演算法與實時AI視覺檢測和影像識別的理想方案，適用於道路旁、鐵路旁、農地、工廠或建築工地等進行實時的影像辨識。
● 支援EdgeEye便利遠程設備管理

AIE-PN33/43-3M和 AIE-PO23/33-3M支援EdgeEye遠端監控和控制功能，減輕邊緣系統遠端管理負擔。IT人員可透過EdgeEye雲端平台從中心位置便利地監控、控制和重新啟動位於不同地點的邊緣系統。

* AIE-PO23/33-3M 和 AIE-PN33/43-3M 目前是初步產品，因此規格如有更改，恕不另行通知。

Supercharge with NVIDIA Super Mode

  Orin Nano 4GB Orin Nano 4GB
(Super)		 Orin Nano 8GB Orin Nano 8GB
(Super)		 Orin NX 8GB Orin NX 8GB
(Super)		 Orin NX 16GB Orin NX 16GB
(Super)
GPU Cores 512 CUDA Cores

16 Tensor Cores		 512 CUDA Cores

16 Tensor Cores		 1024 CUDA Cores

32 Tensor Cores		 1024 CUDA Cores

32 Tensor Cores		 1024 CUDA Cores

32 Tensor Cores		 1024 CUDA Cores

32 Tensor Cores		 1024 CUDA Cores

32 Tensor Cores		 1024 CUDA Cores

32 Tensor Cores
GPU Max Frequency 625 MHz 1020 MHz 625 MHz 1020 MHz 765 MHz 1173 MHz 918 MHz 1173 MHz
Peak AI Performance INT8 20 TOPS 34 TOPS 40 TOPS 67 TOPS 70 TOPS 117 TOPS 100 TOPS 157 TOPS
GPU Performance (S/D) 20/10 TOPs 34/17 TOPs 40/20 TOPs 67/33 TOPs 50/25 TOPs 77/38 TOPs 60/30 TOPs 77/38 TOPs
CPU 6X A78

1.5 GHz		 6X A78

1.7 GHz		 6X A78

1.5 GHz		 6X A78

1.7 GHz		 6X A78

2.0 GHz		 6X A78

2.0 GHz		 8X A78

2.0 GHz		 8X A78

2.0 GHz
SPEC int rate 106 118 106 118 130 167 167 167
DLA Performance (S/D) N/A N/A N/A N/A 20/10 TOPs 40/20 TOPs 40/20 TOPs 80/40 TOPs
DRAM BW 34 GB/s 51 GB/s 68 GB/s 102 GB/s 102 GB/s 102 GB/s 102 GB/s 102 GB/s
Mechanical 70 x 45 mm

260 pins		 70 x 45 mm

260 pins		 70 x 45 mm

260 pins		 70 x 45 mm

260 pins		 70 x 45 mm

260 pins		 70 x 45 mm

260 pins		 70 x 45 mm

260 pins		 70 x 45 mm

260 pins
Module Power 7W | 10W 7W | 10W | 25W 7W | 15W 10W | 15W | 25W 10W | 15W | 20W 10W | 15W | 25W | 40W 10W | 15W | 25W 10W | 15W | 25W | 40W

產品規格

Model Number AIE-PO23-3M AIE-PO33-3M AIE-PN33-3M AIE-PN43-3M
Module Compatibility NVIDIA Jetson Orin Nano 4GB NVIDIA Jetson Orin Nano 8GB NVIDIA Jetson Orin NX 8GB NVIDIA Jetson Orin NX 16GB
AI Performance 20 TOPS 40 TOPS 70 TOPS 100 TOPS
GPU 512 Core NVIDIA Ampere, with 16 Tensor Cores 1024 Core NVIDIA Ampere, with 32 Tensor Cores 1024 Core NVIDIA Ampere, with 32 Tensor Cores
CPU 6-core Arm® Cortex®-A78AE v 8.2 64-bit 1.5MB L2 + 4MB L3 6-core Arm® Cortex®-A78AE v 8.2 64-bit 1.5MB L2 + 4MB L3 8-core Arm® Cortex®-A78AE v 8.2 64-bit 2MB L2 + 4MB L3
Memory 4GB 64-bit LPDDR5 34GB/s 8GB 128-bit LPDDR5 68GB/s 8GB 128-bit LPDDR5 102.4 GB/s 16GB 128-bit LPDDR5 102.4 GB/s
Storage 1 x M.2 NVMe M-Key 2242 (128GB built-in)
Display 1 x HDMI 2.0 Type A
TPM Not supported
LAN 2 x RJ-45 GbE ports
USB 2 x USB 3.2 Gen2 Type A (support up to 10 Gbps shared)
1 x OTG Type-C
I/O Interfaces 5 x GPIO,
1 x UART,
1 x I2C,
1 x RS-232,
1 x RS-422/485,
1 x CAN (isolation; support CAN FD)
Expansion 1 x M.2 B-Key 3042/3052 (LTE/5G)
1 x M.2 E-Key 2230 (WiFi/BT)
1 x M.2 M-Key 2242 (NVMe 128GB built-in)
2 x M.2 M-Key 2280 (PCIe)
MISC. Function 1 x Power Button / 1 x Recovery Button / 1 x Reset Button
Power Input/Connector DC-in 12-24VDC / 4-Pin DC Jack Power Connector
Power Consumption Idle: 6.413 W
Full Loading: 43.13* W		 Idle: 6.413 W
Full Loading: 43.13* W
  *For more test condition information, please refer to user manual
Dimension (WxDxH) 270 x 195 x 80 mm (10.63 x 7.67 x 3.15 in)
Mounting Wall Mount (optional) / Din Rail (optional)
Net Weight TBC kg (TBC lb)
Vibration 1 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
Shock 10 G, IEC 60068-2-27, half sine, 11 ms duration
Temperature

Operating Temp. -25°C ~ +55°C (-13°F ~ +131°F) with 0.5 m/s air flow
Storage Temp. -40°C ~ +85°C (-40°F ~ +185°F)
Humidity 95% @ 40°C (104°F) (non-condensing)
Software Support Linux (Support Jetpack 5.0 above)
Certification CE / FCC Class A / UKCA

*Product specifications are subject to change without prior notice

產品規格

開始比較
0

訂購訊息

Model Number Description

AIE-PO23-3M-1-A1

Orin Nano 4GB, 1 x HDMI, 2 x GbE, 2 x USB, 128GB SSD, B/E/M(x3) Key, 12 to 24 VDC input, -25°C ~ +55°C

AIE-PO33-3M-1-A1

Orin Nano 8GB, 1 x HDMI, 2 x GbE, 2 x USB, 128GB SSD, B/E/M(x3) Key, 12 to 24 VDC input, -25°C ~ +55°C

AIE-PN33-3M-1-A1

Orin NX 8GB, 1 x HDMI, 2 x GbE, 2 x USB, 128GB SSD, B/E/M(x3) Key, 12 to 24 VDC input, -25°C ~ +55°C

AIE-PN43-3M-1-A1

Orin NX 16GB, 1 x HDMI, 2 x GbE, 2 x USB, 128GB SSD, B/E/M(x3) Key, 12 to 24 VDC input, -25°C ~ +55°C

相關下載

Document
Model Name 檔名 作業系統 版本 更新時間 下載
Jetson Orin Series Aetina_Peripherals List for Jetson Orin Series v1.7 2024-12-16 View
Jetson Orin Series Aetina_Success Story_Dralle v1.0 2024-05-22 View
AIE-PO23/33-3M
AIE-PN33/43-3M		 Aetina_AIE-PO23_33_PN33_43-3M_datasheet v1.0 2024-04-02 View
