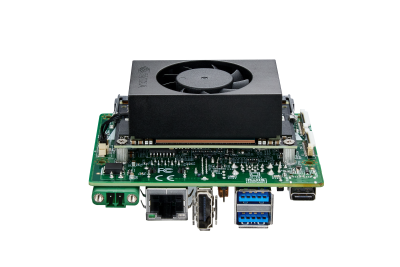

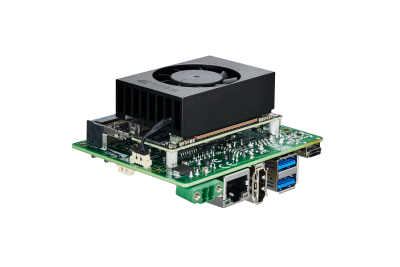

AIB-SO21_31_AIB-SN31_41_side2 AIB-SO21_31_AIB-SN31_41_front AIB-SO21_31_AIB-SN31_41_side
Prev
Next
AIB-SO21_31_AIB-SN31_41_side2 AIB-SO21_31_AIB-SN31_41_front AIB-SO21_31_AIB-SN31_41_side

AIB-SO21/31 | AIB-SN31/41

• 支援NVIDIA Jetson Orin™ NX /Orin Nano™模組
• 寬輸入電壓設計：12至24VDC
• 1 x M.2 E-Key, 1 x M-Key (內建NVMe 128GB)
• 支援宜鼎國際(Innodisk)頻外遠端管理模組
• 作業溫度-25°C ~ +80°C

NVIDIA Preferred Partner

產品介紹

● 體積最小的Jetson模組 高達80倍的AI效能可實現AI推理
NVIDIA Jetson Orin™ NX模組提供高達100 TOPS的效能，是NVIDIA Jetson AGX Xavier™模組的3倍多，NVIDIA Jetson Xavier™ NX模組的5倍左右；NVIDIA Jetson Orin Nano™提供高達40 TOPS的效能，是NVIDIA Jetson Nano™模組的80倍。換言之，NVIDIA Jetson Orin NX和Orin Nano模組為體積最小的Jetson模組建立了新的主流和入門級邊緣AI標準。

● 充足M.2介面 支援儲存擴充
AIB-SO21/31和AIB-SN31/41是邊緣運算平台，提供1組M.2 E-Key用於Wifi/BT和1組M.2 M-Key用於儲存。為避免邊緣運算的資料儲存空間不足，AIB-SO21/31和AIB-SN31/41更支援M.2 2242 NVMe的高速傳輸與擴充。
● 寬輸入電壓和作業溫度 適用於各種嵌入式應用

為滿足各種嵌入式應用，尤其是具有挑戰性的環境，如智慧工廠、智慧城市和智慧交通等，AIB-SO21/31和AIB-SN31/41支援作業溫度範圍從-25°C到80°C，寬輸入電源範圍則為12到24VDC。


產品規格

Model Number AIB-SO21 AIB-SO31 AIB-SN31 AIB-SN41
Module Compatibility NVIDIA Jetson Orin Nano 4GB NVIDIA Jetson Orin Nano 8GB NVIDIA Jetson Orin NX 8GB NVIDIA Jetson Orin NX 16GB
AI Performance 20 TOPS 40 TOPS 70 TOPS 100 TOPS
GPU 512 Core NVIDIA Ampere, with 16 Tensor Cores 1024 Core NVIDIA Ampere, with 32 Tensor Cores 1024 Core NVIDIA Ampere, with 32 Tensor Cores
CPU 6-core Arm® Cortex®-A78AE v 8.2 64-bit CPU 1.5MB L2 + 4MB L3 6-core Arm® Cortex®-A78AE v 8.2 64-bit CPU 1.5MB L2 + 4MB L3 8-core Arm® Cortex®-A78AE v 8.2 64-bit CPU 2MB L2 + 4MB L3
Memory 4GB 64-bit LPDDR5 34GB/s 8GB 128-bit LPDDR5 68GB/s 8GB 128-bit LPDDR5 102.4 GB/s 16GB 128-bit LPDDR5 102.4 GB/s
Storage 1 x M.2 M-Key 2242 (NVMe 128GB built-in)
Display 1 x HDMI 2.0 Type A
Audio Line-out / Line-in / Mic (optional with daughter board)
RTC With super capacitor, battery (optional)
MIPI Camera Input 2 x 4-Lane MIPI CSI-2 22-Pin Connector
LAN 1 x RJ-45 GbE ports
USB 2 x USB 3.2 Gen2 Type A (supports up to 10Gbps shared)
1 x OTG Type-C
I/O Interfaces 5 x GPIO,
1 x I2C,
1 x I2S,
1 x RS-232,
1 x UART,
1 x UART (Debug Only ),
1 x SPI, 1 x CAN (Isolation; support CAN FD)
Expansion 1 x M.2 E-Key 2230 (WiFi/BT)
1 x M.2 M-Key 2242 (NVMe 128GB built-in)
MISC. Function 1 x Power / 1 x Recovery / 1 x Reset Button
Power Consumption Idle: 5.4 W
Full Loading: 27.08* W		 Idle: 5.7 W
Full Loading: 37.5* W
  *For more test condition information, please refer to user manual
Power Input/Connector DC-in 12-24VDC / 2-Pin Terminal Block
Dimension (WxDxH) 87.4 x 67.4 x 28.45 mm (3.44 x 2.65 x 1.12 in)
Net Weight 0.144 kg (0.32 lb) w/ Fansink
Vibration 1 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
Shock 10 G, IEC 60068-2-27, half sine, 11 ms duration
Temperature

Operating Temp. -25°C ~ +80°C (-13°F ~ +176°F)
Storage Temp. -40°C ~ +85°C (-40°F ~ +185°F)
Humidity 95% @ 40°C (104°F) (non-condensing)
Software Support Linux (Support Jetpack 5.0 above)
Certification CE / FCC Class A / UKCA

產品規格

開始比較
0

訂購訊息

Model Number Description

AIB-SO21-1-A1

Orin Nano 4GB, 1 x HDMI, 1 x GbE, 2 x USB, 2 x 4 lane MIPI 22 pins, 128GB SSD, E/M Key, 12 to 24 VDC input, -20°C~80°C

AIB-SO31-1-A1

Orin Nano 8GB, 1 x HDMI, 1 x GbE, 2 x USB, 2 x 4 lane MIPI 22 pins, 128GB SSD, E/M Key, 12 to 24 VDC input, -20°C~80°C

AIB-SN31-1-A1

Orin NX 8GB, 1 x HDMI, 1 x GbE, 2 x USB, 2 x 4 lane MIPI 22 pins, 128GB SSD, E/M Key, 12 to 24 VDC input, -20°C~80°C

AIB-SN41-1-A1

Orin NX 16GB, 1 x HDMI, 1 x GbE, 2 x USB, 2 x 4 lane MIPI 22 pins, 128GB SSD, E/M Key, 12 to 24 VDC input, -20°C~80°C

相關下載

Document Driver & Software
Model Name 檔名 作業系統 版本 更新時間 下載
Jetson Orin Series Aetina_Peripherals List for Jetson Orin Series v1.5 2024-02-19 View
AIB-SO21/31
AIB-SN31/41		 Aetina_AIB-SO21/31_AIB-SN31/41_datasheet v1.1 2024-01-11 View
AIB-SO21/31
AIB-SN31/41		 Aetina_AIB-SO21/31_AIB-SN31/41_user manual v1.2 2023-11-02 View
Model Name 檔名 作業系統 版本 更新時間 下載
AIB-SO21/AIB-SO31
AIE-KO21/AIE-KO31
AIE-CO21/AIE-CO31
AIB-SN31/AIB-SN41
AIE-KN31/AIE-KN41
AIE-CN31/AIE-CN41		 PATCH_R36_3_0_Orin_NX-Nano_AIB-SO01-SN01_v1.2.0_Standard_STD JetPack 6.0 2024-09-12 View
AIB-SN31/AIB-SN41
AIE-KN31/AIE-KN41
AIE-CN31/AIE-CN41		 R35_3_1_Orin_NX_AIB-SO01-SN01_v6_STD L4T R35.3.1-JetPack 5.1.1 2023-08-17 View
AIB-SO21/AIB-SO31
AIE-KO21/AIE-KO31
AIE-CO21/AIE-CO31		 R35_3_1_Orin_Nano_AIB-SO01-SN01_v4_STD L4T R35.3.1-JetPack 5.1.1 2023-08-17 View
