AIB-SO21/31| AIB-SN31/41
• Supports NVIDIA Jetson Orin™ NX and Orin Nano™ module
• Wide input voltage range from 12 to 24VDC
• 1 x M.2 E-Key, 1 x M-Key (NVMe 128GB built-in)
• Supports Innodisk Out-of-Band Remote Management Module (optional)
• Operating temperature -25°C ~ +80°C
 |
Overview
| ● Up to 80 x AI performance enables AI inference in the smallest Jetson form factor |
| The NVIDIA Jetson Orin NX module offers up to 100 TOPS, 3 times more than the NVIDIA Jetson AGX Xavier™ module, and approximately 5 times the NVIDIA Jetson Xavier™ NX module; NVIDIA Jetson Orin Nano offers up to 40 TOPS, 80 times the NVIDIA Jetson Nano™ module. In other words, NVIDIA Jetson Orin NX and Orin Nano module set new standard for mainstream and entry-level edge AI in the smallest Jetson form factor. |
| ● Sufficient M.2 for internal and external storage expansion |
| AIB-SO21/31 and AIB-SN31/41 are edge computing platforms, built in 1x M.2 E-Key for Wifi/BT and 1x M.2 M-Key for storage. To avoid insufficient data storage for edge computing, AIB-SO31/41 and AIB-SN31/41 support external M.2 2242 NVMe with fast data transmission. |
| ● Wide input power and operating temperature for various embedded applications |
|
To meet various embedded applications, especially challenging environments in smart factory, smart city, and smart transportation, AIB-SO21/31 and AIB-SN31/41 support operating temperature ranging from -25°C to 80°C and wide input power from 12 to 24VDC. |
Specifications
| Model Number | AIB-SO21 | AIB-SO31 | AIB-SN31 | AIB-SN41 |
| Module Compatibility | NVIDIA Jetson Orin Nano 4GB | NVIDIA Jetson Orin Nano 8GB | NVIDIA Jetson Orin NX 8GB | NVIDIA Jetson Orin NX 16GB |
| AI Performance | 20 TOPS | 40 TOPS | 70 TOPS | 100 TOPS |
| GPU | 512 Core NVIDIA Ampere, with 16 Tensor Cores | 1024 Core NVIDIA Ampere, with 32 Tensor Cores | 1024 Core NVIDIA Ampere, with 32 Tensor Cores | |
| CPU | 6-core Arm® Cortex®-A78AE v 8.2 64-bit CPU 1.5MB L2 + 4MB L3 | 6-core Arm® Cortex®-A78AE v 8.2 64-bit CPU 1.5MB L2 + 4MB L3 | 8-core Arm® Cortex®-A78AE v 8.2 64-bit CPU 2MB L2 + 4MB L3 | |
| Memory | 4GB 64-bit LPDDR5 34GB/s | 8GB 128-bit LPDDR5 68GB/s | 8GB 128-bit LPDDR5 102.4 GB/s | 16GB 128-bit LPDDR5 102.4 GB/s |
| Storage | 1 x M.2 M-Key 2242 (NVMe 128GB built-in) | |||
| Display | 1 x HDMI 2.0 Type A | |||
| Audio | Line-out / Line-in / Mic (optional with daughter board) | |||
| RTC | With super capacitor, battery (optional) | |||
| MIPI Camera Input | 2 x 4-Lane MIPI CSI-2 22-Pin Connector | |||
| LAN | 1 x RJ-45 GbE ports | |||
| USB | 2 x USB 3.2 Gen2 Type A (supports up to 10Gbps shared) 1 x OTG Type-C |
|||
| I/O Interfaces | 5 x GPIO, 1 x I2C, 1 x I2S, 1 x RS-232, 1 x UART, 1 x UART (Debug Only ), 1 x SPI, 1 x CAN (Isolation) |
|||
| Expansion | 1 x M.2 E-Key 2230 (WiFi/BT) 1 x M.2 M-Key 2242 (NVMe 128GB built-in; PCIe x4 Gen3) |
1 x M.2 E-Key 2230 (WiFi/BT) 1 x M.2 M-Key 2242 (NVMe 128GB built-in; PCIe x4 Gen4) |
||
| MISC. Function | 1 x Power / 1 x Recovery / 1 x Reset Button | |||
| Power Consumption | Idle: 5.4 W Full Loading: 27.08* W |
Idle: 5.7 W Full Loading: 37.5* W |
||
| *For more test condition information, please refer to user manual | ||||
| Power Input/Connector | DC-in 12-24VDC / 2-Pin Terminal Block | |||

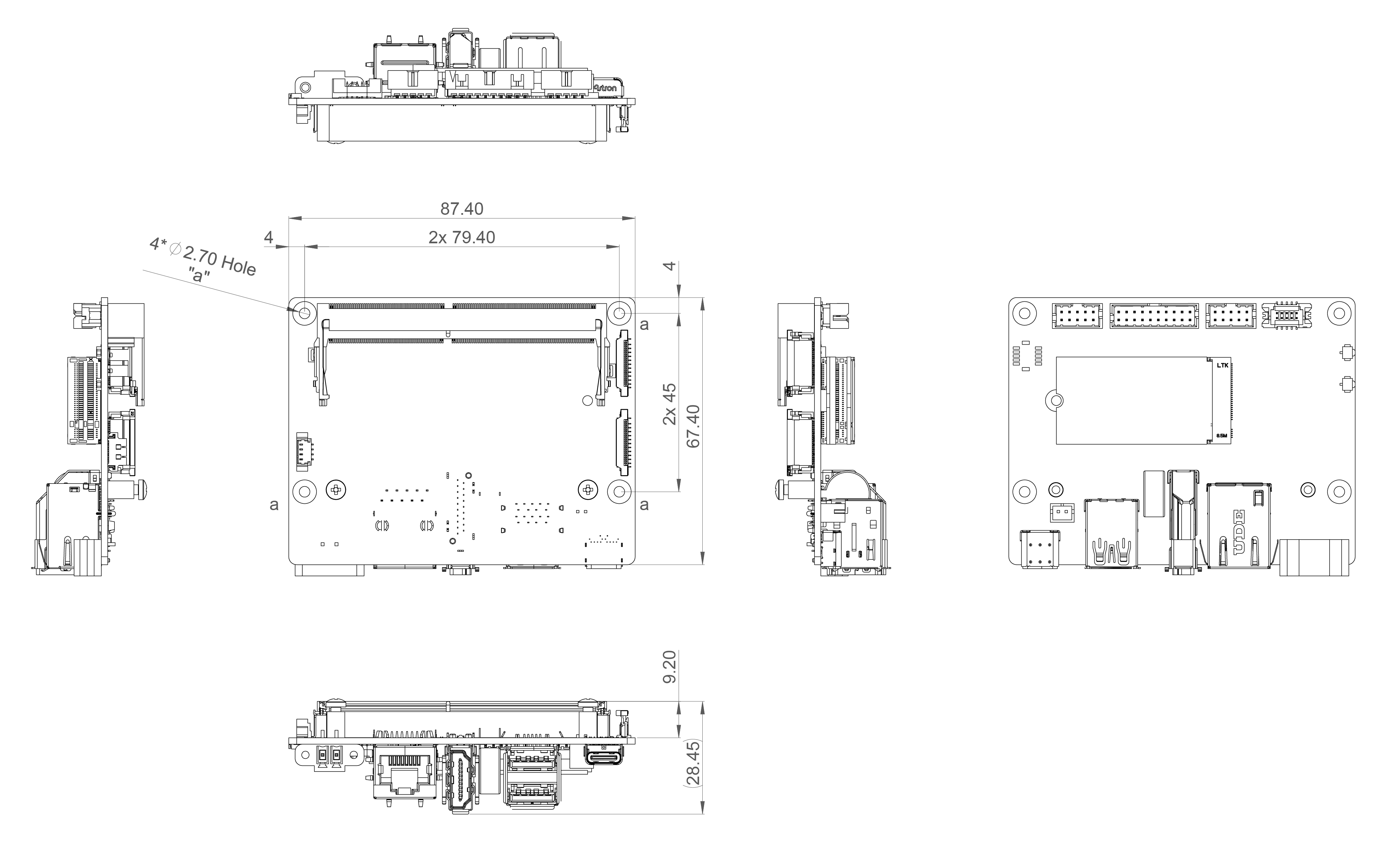

| Dimension (WxDxH) | 87.4 x 67.4 x 28.45 mm (3.44 x 2.65 x 1.12 in) | |||
| Net Weight | 0.144 kg (0.32 lb) w/ Fansink | |||
| Vibration | 1 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis | |||
| Shock | 10 G, IEC 60068-2-27, half sine, 11 ms duration | |||
| Temperature |
Operating Temp. -25°C ~ +80°C (-13°F ~ +176°F) |
|||
| Humidity | 95% @ 40°C (104°F) (non-condensing) | |||
| OS Support | Ubuntu 20.04 | |||
| Certification | CE / FCC Class A / UKCA | |||
Specifications
Ordering Information
| Model Number | Description |
|---|---|
|
AIB-SO21-1-A1 |
Orin Nano 4GB, 1 x HDMI, 1 x GbE, 2 x USB, 2 x 4 lane MIPI 22 pins, 128GB SSD, E/M Key, 12 to 24 VDC input, -20°C~80°C |
|
AIB-SO31-1-A1 |
Orin Nano 8GB, 1 x HDMI, 1 x GbE, 2 x USB, 2 x 4 lane MIPI 22 pins, 128GB SSD, E/M Key, 12 to 24 VDC input, -20°C~80°C |
|
AIB-SN31-1-A1 |
Orin NX 8GB, 1 x HDMI, 1 x GbE, 2 x USB, 2 x 4 lane MIPI 22 pins, 128GB SSD, E/M Key, 12 to 24 VDC input, -20°C~80°C |
|
AIB-SN41-1-A1 |
Orin NX 16GB, 1 x HDMI, 1 x GbE, 2 x USB, 2 x 4 lane MIPI 22 pins, 128GB SSD, E/M Key, 12 to 24 VDC input, -20°C~80°C |
Downloads
| Model Name | File Name | OS | Version | Update Date | Download |
|---|---|---|---|---|---|
|
AIB-SO21/31 AIB-SN31/41 |
Aetina_AIB-SO21/31_AIB-SN31/41_user manual | v1.2 | 2023-11-02 | View | |
| Jetson Orin Series | Aetina_Peripherals List for Jetson Orin Series | v1.0 | 2023-09-20 | View | |
|
AIB-SO21/31 AIB-SN31/41 |
Aetina_AIB-SO21/31_AIB-SN31/41_datasheet | v1.1 | 2023-11-02 | View |
| Model Name | File Name | OS | Version | Update Date | Download |
|---|---|---|---|---|---|
|
AIB-SN31/AIB-SN41 AIE-KN31/AIE-KN41 AIE-CN31/AIE-CN41 |
R35_3_1_Orin_NX_AIB-SO01-SN01_v6_STD | Ubuntu 20.04 | L4T R35.3.1-JetPack 5.1.1 | 2023-08-17 | View |
|
AIB-SO21/AIB-SO31 AIE-KO21/AIE-KO31 AIE-CO21/AIE-CO31 |
R35_3_1_Orin_Nano_AIB-SO01-SN01_v4_STD | Ubuntu 20.04 | L4T R35.3.1-JetPack 5.1.1 | 2023-08-17 | View |
