AIE-CO21/31 | AIE-CN31/41
• Supports NVIDIA Jetson Orin™ NX and Orin Nano™ (Super Mode-enabled) module
• 1 x M.2 E-Key, 1 x M.2 M-Key (128GB built-in)
• 1 x RJ-45 GbE port
• Wide input voltage range from 12 to 24 VDC
• Operating temperature -25°C ~ +55°C
• Fanless Design
 |
 |
Overview
| ● Up to 80 x AI performance enables AI inference in the smallest Jetson form factor |
| The NVIDIA Jetson Orin NX module offers up to 100 TOPS, 3 times more than the NVIDIA Jetson AGX Xavier™ module, and approximately 5 times the NVIDIA Jetson Xavier™ NX module; NVIDIA Jetson Orin Nano offers up to 40 TOPS, 80 times the NVIDIA Jetson Nano™ module. In other words, NVIDIA Jetson Orin NX and Orin Nano module set new standard for mainstream and entry-level edge AI in the smallest Jetson form factor. |
| ● Sufficient M.2 for internal and external storage expansion |
| AIE-CO21/31 and AIE-CN31/41 are fanless systems, built in 1x M.2 E-Key for Wifi/BT and 1x M.2 M-Key for storage. To avoid insufficient data storage for edge computing, AIE-CO21/31 and AIE-CN31/41 support external M.2 2242 NVMe with fast data transmission. |
| ● Wide input power and fanless design for smart city and smart agriculture |
|
To cater to diverse applications, such as smart city and smart agriculture, where cost-effective maintenance and improved reliability are crucial, AIE-CO21/31 and AIE-CN31/41 have been specifically designed with a fanless and silent mechanism. These systems are capable of operating within a wide temperature range of -25°C to 55°C. Additionally, they support a wide input power range from 12 to 24 VDC, enabling flexible power supply options. |
Supercharge with NVIDIA Super Mode
| Orin Nano 4GB | Orin Nano 4GB (Super) |
Orin Nano 8GB | Orin Nano 8GB (Super) |
Orin NX 8GB | Orin NX 8GB (Super) |
Orin NX 16GB | Orin NX 16GB (Super) |
|
|---|---|---|---|---|---|---|---|---|
| GPU Cores | 512 CUDA Cores 16 Tensor Cores |
512 CUDA Cores 16 Tensor Cores |
1024 CUDA Cores 32 Tensor Cores |
1024 CUDA Cores 32 Tensor Cores |
1024 CUDA Cores 32 Tensor Cores |
1024 CUDA Cores 32 Tensor Cores |
1024 CUDA Cores 32 Tensor Cores |
1024 CUDA Cores 32 Tensor Cores |
| GPU Max Frequency | 625 MHz | 1020 MHz | 625 MHz | 1020 MHz | 765 MHz | 1173 MHz | 918 MHz | 1173 MHz |
| Peak AI Performance INT8 | 20 TOPS | 34 TOPS | 40 TOPS | 67 TOPS | 70 TOPS | 117 TOPS | 100 TOPS | 157 TOPS |
| GPU Performance (S/D) | 20/10 TOPs | 34/17 TOPs | 40/20 TOPs | 67/33 TOPs | 50/25 TOPs | 77/38 TOPs | 60/30 TOPs | 77/38 TOPs |
| CPU | 6X A78 1.5 GHz |
6X A78 1.7 GHz |
6X A78 1.5 GHz |
6X A78 1.7 GHz |
6X A78 2.0 GHz |
6X A78 2.0 GHz |
8X A78 2.0 GHz |
8X A78 2.0 GHz |
| SPEC int rate | 106 | 118 | 106 | 118 | 130 | 167 | 167 | 167 |
| DLA Performance (S/D) | N/A | N/A | N/A | N/A | 20/10 TOPs | 40/20 TOPs | 40/20 TOPs | 80/40 TOPs |
| DRAM BW | 34 GB/s | 51 GB/s | 68 GB/s | 102 GB/s | 102 GB/s | 102 GB/s | 102 GB/s | 102 GB/s |
| Mechanical | 70 x 45 mm 260 pins |
70 x 45 mm 260 pins |
70 x 45 mm 260 pins |
70 x 45 mm 260 pins |
70 x 45 mm 260 pins |
70 x 45 mm 260 pins |
70 x 45 mm 260 pins |
70 x 45 mm 260 pins |
| Module Power | 7W | 10W | 7W | 10W | 25W | 7W | 15W | 10W | 15W | 25W | 10W | 15W | 20W | 10W | 15W | 25W | 40W | 10W | 15W | 25W | 10W | 15W | 25W | 40W |
Specifications
| Model Number | AIE-CO21 | AIE-CO31 | AIE-CN31 | AIE-CN41 | ||||
| Module Compatibility | NVIDIA Jetson Orin Nano 4GB | NVIDIA Jetson Orin Nano 4GB (Super) | NVIDIA Jetson Orin Nano 8GB | NVIDIA Jetson Orin Nano 8GB (Super) | NVIDIA Jetson Orin NX 8GB | NVIDIA Jetson Orin NX 16GB | ||
| AI Performance | 20 TOPS | 34 TOPS | 40 TOPS | 67 TOPS | 70 TOPS | 100 TOPS | ||
| GPU | 512 Core NVIDIA Ampere, with 16 Tensor Cores | 1024 Core NVIDIA Ampere, with 32 Tensor Cores | 1024 Core NVIDIA Ampere, with 32 Tensor Cores | |||||
| CPU | 6-core Arm® Cortex®-A78AE v 8.2 64-bit 1.5MB L2 + 4MB L3 | 6-core Arm® Cortex®-A78AE v 8.2 64-bit 1.5MB L2 + 4MB L3 | 8-core Arm® Cortex®-A78AE v 8.2 64-bit 2MB L2 + 4MB L3 | |||||
| Memory | 4GB 64-bit LPDDR5 34GB/s | 4GB 64-bit LPDDR5 51 GB/s | 8GB 128-bit LPDDR5 68GB/s | 8GB 128-bit LPDDR5 68 GB/s | 8GB 128-bit LPDDR5 102.4 GB/s | 16GB 128-bit LPDDR5 102.4 GB/s | ||
| Storage | 1 x M.2 M-Key 2242 (128GB built-in) | |||||||

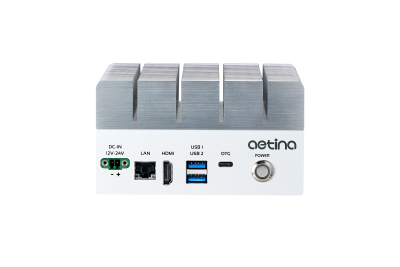

| Display | 1 x HDMI 2.0 Type A | |||||||
| RTC | With super capacitor, battery (optional) | |||||||
| LAN | 1 x RJ-45 GbE ports | |||||||
| USB | 2 x USB 3.2 Gen2 Type A (supports up to 10Gbps shared) 1 x OTG Type-C |
|||||||

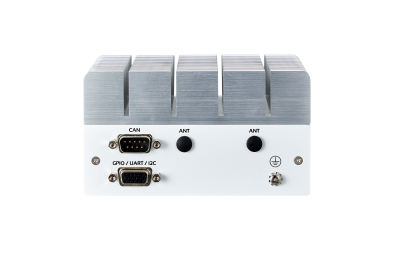

| I/O Interfaces | 5 x GPIO, 1 x UART, 1 x I2C, 1 x CAN (isolation; support CAN FD) |
|||||||
| Expansion | 1 x M.2 E-Key 2230 (WiFi/BT) 1 x M.2 M-Key 2242 (NVMe 128GB built-in) |
|||||||

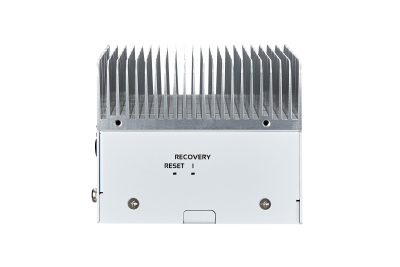

| MISC. Function | 1 x Power / 1 x Recovery Button / 1 x Reset Button 1 x CAN 2.0b with isolation |
|||||||
| Power Input/Connector | DC-in 12-24VDC / 2-Pin Terminal Block | |||||||
| Power Consumption | Idle: 6.4 W Full Loading: 25.08* W |
Idle: 6.4 W Full Loading: 40* W |
Idle: 6.4 W Full Loading: 25.08* W |
Idle: 6.4 W Full Loading: 40* W |
Idle: 3.7 W Full Loading: 35.5* W |
|||
| Dimension (WxDxH) | 130 x 90.2 x 72 mm (5.11 x 3.55 x 2.83 in) | |||||||
| Mounting | Wall Mount (optional) / Din Rail (optional) | |||||||
| Net Weight | 0.927 kg (2.044 lb) | |||||||
| Vibration | 1 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis | |||||||
| Shock | 10 G, IEC 60068-2-27, half sine, 11 ms duration | |||||||
| Temperature |
Operating Temp. -25°C ~ +55°C (-13°F ~ +131°F) with 0.5 m/s air flow |
|||||||
| Humidity | 95% @ 40°C (104°F) (non-condensing) | |||||||
| Software Support | Linux (Support Jetpack 5.0 above) | |||||||
| Certification | CE / FCC Class A / UKCA | |||||||
Specifications
Ordering Information
| Model Number | Description |
|---|---|
|
AIE-CO21-1-A1 |
Orin Nano 4GB, 1 x HDMI, 1 x GbE, 2 x USB, 128GB SSD, E/M Key, 12 to 24 VDC input, -25℃~ +55℃ |
|
AIE-CO31-1-A1 |
Orin Nano 8GB, 1 x HDMI, 1 x GbE, 2 x USB, 128GB SSD, E/M Key, 12 to 24 VDC input, -25℃~ +55℃ |
|
AIE-CN31-1-A1 |
Orin NX 8GB, 1 x HDMI, 1 x GbE, 2 x USB, 128GB SSD, E/M Key, 12 to 24 VDC input, -25℃~ +55℃ |
|
AIE-CN41-1-A1 |
Orin NX 16GB, 1 x HDMI, 1 x GbE, 2 x USB, 128GB SSD, E/M Key, 12 to 24 VDC input, -25℃~ +55℃ |
| AIE-CO21-1-S1 (Super Mode) |
Orin Nano 4GB, 1 x HDMI, 1 x GbE, 2 x USB, 128GB SSD, E/M Key, 12 to 24 VDC input, -25°C ~ +55°C |
| AIE-CO31-1-S1 (Super Mode) |
Orin Nano 8GB, 1 x HDMI, 1 x GbE, 2 x USB, 128GB SSD, E/M Key, 12 to 24 VDC input, -25°C ~ +55°C |
