MX5000A-WP

NVIDIA RTX 5000 Ada Generation Embedded GPU based on NVIDIA Ada Lovelace architecture
9728 CUDA cores, 76 RT cores and 304 Tensor cores
41.15 TFLOPS peak FP32 performance
16GB GDDR6 memory
PCIe Gen 4 x16 interface
Support Error Correction Code(ECC)


Overview

The MX5000A-WP MXM 3.1 Type B module features an NVIDIA RTX 5000 Ada Generation Embedded GPU based on the NVIDIA Ada Lovelace architecture. This architecture delivers revolutionary ray tracing and AI performance for graphics and neural networks. With dramatically higher baseline performance tailored for ray tracing and neural graphics workloads, it marks a major advancement in capabilities. The module enables outstanding gaming, content creation, professional graphics, AI acceleration, and compute power.

● Advanced GPU engine compared to Ampere Architecture
Powered by the NVIDIA RTX 5000 Ada Generation Embedded GPU featuring the NVIDIA Ada Lovelace architecture, the MX5000A-WP module delivers higher performance from its Ray Tracing and Tensor cores compared to GPUs built on the previous architecture. This enables more advanced ray traced graphics and AI capabilities.
● Supports Error Correction Code(ECC)
ECC provides higher reliability for compute applications that are sensitive to data corruption, especially important in large-scale cluster computing environments where GPUs process extremely large datasets and/or run applications for extended periods.
● PCIe Gen 4 x16 interface
PCIe Gen 4 interface in Ada Lovelace Architecture GPUs delivers faster sequential data transfer than PCIe Gen 3 interface. The increased throughput unlocks higher performance, lower latency and better scalability in Ada Lovelace architecture over previous generations.
● Conformal coating optional service for rugged applications
For all series of MXM modules, Aetina offers conformal coating optional service, suitable for harsh environments such as massive-computing embedded applications.
● 5-year long-term supply
During long development period, Aetina ensures MXM modules with 5-year availability and exclusive technical support, helping customers to save maintenance cost and time.

Specifications

Model Number
MX5000A-WP
Bus Type
PCI Express 4.0 x16
Form Factor
MXM graphics module version 3.1, Type B
GPU Engine
GPU Architecture
NVIDIA Ada Lovelace
Graphics Processing Unit
NVIDIA RTX™ 5000 Ada Generation Embedded GPU
NVIDIA CUDA Cores
9728
Graphics Clock (MHz)
1425 / 2115
Floating Point
41.15 TFLOPS
Memory
Memory Size
16GB GDDR6
Memory Clock
18 Gbps
Memory Interface Width
256-bit
Memory Bandwidth
576 GB/sec
Feature Support
DirectX
12 Ultimate
Vulkan
1.2
OpenGL
4.6
Operation System
Windows 10/11 64-bit
Display
Max. Displays per Board
Max: 4x DisplayPort 1.4a
Max. Digital Resoultion
7680 x 4320
Outputs
Outputs
DisplayPort 1.4a
Power
Total Graphics Power (TGP)
115 W
Mechanical & Environment
Dimensions (mm)
82.0 x 105.0
Operation Temperature(Standard)
0℃ ~ +55℃ (32°F ~ 131°F)
Storage Temperature
-40°C ~ +85℃ (-40℉ ~ +185℉)
Humidity
10~90%, Non-condensing
Start to compare
0

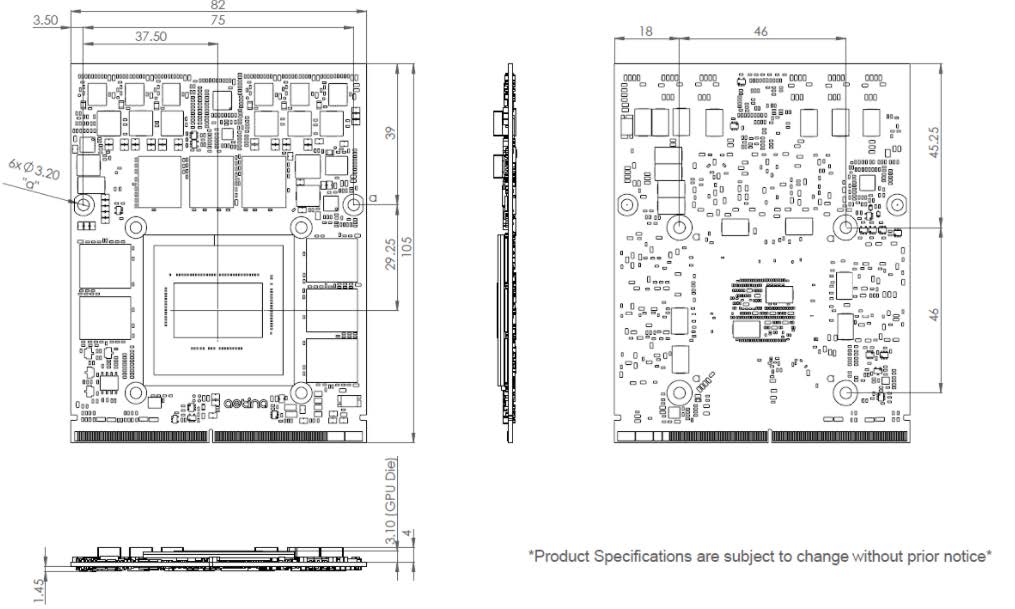

Dimensions

MX5000A-WPA-A1

Ordering Information

Model Number Description

MX5000A-WPA-A1

MXM-B, NVIDIA RTX 5000 ADA, Gen4.0 x16, 16GB GDDR6, DP, 115W, 0℃ to +55℃

Downloads

Model Name File Name OS Version Update Date Download
PCIe Series/MXM Series Aetina_AI Accelerator& GPU_brochure v2.0 2024-05-21 View
MX5000A-WP Aetina_MX5000A-WP_user manual v1.0 2024-02-05 View
MX5000A-WP Aetina_MX5000A-WP_datasheet v1.1 2024-02-01 View
