MX2000A-VA
• NVIDIA RTX 2000 Ada Generation Embedded GPU based on NVIDIA Ada Lovelace architecture
• 3072 CUDA cores, 24 RT cores and 96 Tensor cores, 8GB GDDR6 memory
• PCIe Gen 4 x16 interface via golden finger
• 12.99 TFLOPS peak FP32 performance
Overview
The MX2000A-VA MXM 3.1 Type A module features an NVIDIA RTX 2000 Ada Generation Embedded GPU based on the NVIDIA Ada Lovelace architecture. This architecture delivers revolutionary ray tracing and AI performance for graphics and neural networks. With dramatically higher baseline performance tailored for ray tracing and neural graphics workloads, it marks a major advancement in capabilities. The module enables outstanding gaming, content creation, professional graphics, AI acceleration, and compute power.
| ● Advanced GPU engine compared to Ampere Architecture |
| Powered by the NVIDIA RTX 2000 Ada Generation Embedded GPU featuring the NVIDIA Ada Lovelace architecture, the MX2000A-VA module delivers higher performance from its Ray Tracing and Tensor cores compared to GPUs built on the previous architecture. This enables more advanced ray traced graphics and AI capabilities. |
| ● Supports Error Correction Code(ECC) |
| ECC provides higher reliability for compute applications that are sensitive to data corruption, especially important in large-scale cluster computing environments where GPUs process extremely large datasets and/or run applications for extended periods. |
| ● PCIe Gen 4 x8 signal |
| PCIe Gen 4 interface in Ada Lovelace Architecture GPUs delivers faster sequential data transfer than PCIe Gen 3 interface. The increased throughput unlocks higher performance, lower latency and better scalability in Ada Lovelace architecture over previous generations. |
| ● Conformal coating optional service for rugged applications |
| For all series of MXM modules, Aetina offers conformal coating optional service, suitable for harsh environments such as massive-computing embedded applications. |
| ● 5-year long-term supply |
| During long development period, Aetina ensures MXM modules with 5-year availability and exclusive technical support, helping customers to save maintenance cost and time. |
Specifications
Model Number
MX2000A-VA
Bus Type
PCI Express 4.0 x8
Form Factor
MXM graphics module version 3.1, Type A
GPU Engine
GPU Architecture
NVIDIA Ada Lovelace
Graphics Processing Unit
NVIDIA RTX™ 2000 Ada Generation Embedded GPU
NVIDIA CUDA Cores
3072
Graphics Clock (MHz)
1635 / 2115
Floating Point
12.99 TFLOPS
Memory
Memory Size
8GB GDDR6
Memory Clock
16 Gbps
Memory Interface Width
128-bit
Memory Bandwidth
256 GB/sec
Feature Support
DirectX
12 Ultimate
Vulkan
1.2
OpenGL
4.6
Operation System
Windows 10/11 64-bit /Linux 64-bit
Display
Max. Displays per Board
Max: 3x DisplayPort 1.4a
Max. Digital Resoultion
7680 x 4320
Outputs
Outputs
DisplayPort 1.4a
Power
Total Graphics Power (TGP)
60 W
Mechanical & Environment
Dimensions (mm)
82.0 x 70.0
Operation Temperature(Standard)
0℃ ~ +55℃ (32°F ~ 131°F)
Operation Temperature(Extended)
-40 to + 85°C (-40°F ~185°F)
Storage Temperature
-40°C ~ +85℃ (-40℉ ~ +185℉)
Humidity
40°C@ 95%, Non-condensing
Certification
CE/FCC/UKCA

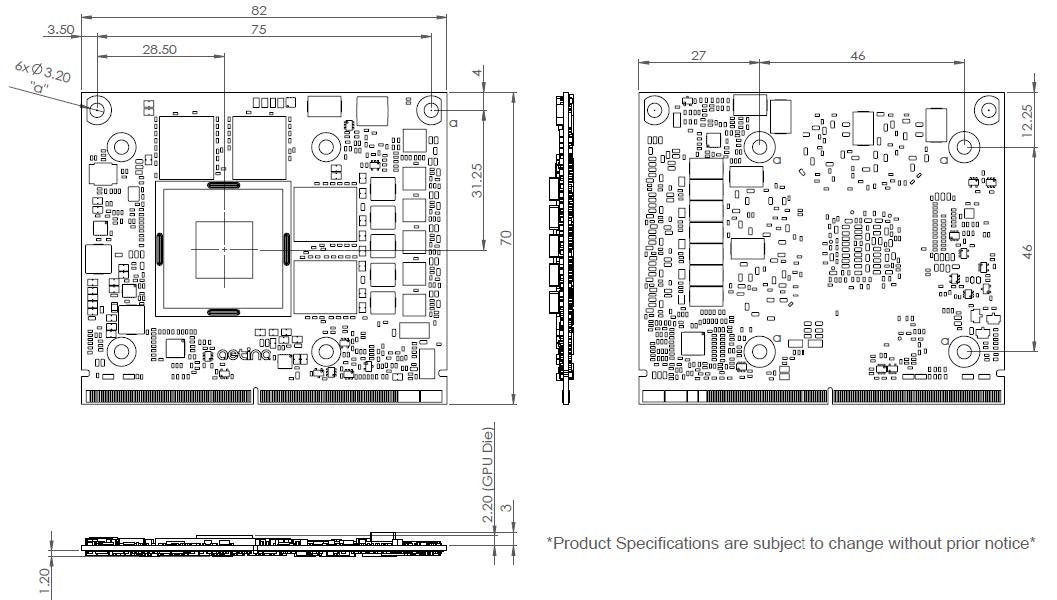

Dimensions
Ordering Information
| Model Number | Description |
|---|---|
|
MX2000A-VAA-A1 |
MXM-A, NVIDIA RTX 2000 ADA, Gen4.0 x8, 8GB GDDR6, 3xDP, 60W, 0°C to +55°C |
|
MX2000A-VAW-A1 |
MXM-A, NVIDIA RTX 2000 ADA, Gen4.0 x8, 8GB GDDR6, 3xDP, 60W, -40°C to +85°C |
