N4060-VSFX
• Powered by NVIDIA RTX 4060 Ada Lovelace architecture
• 3072 CUDA cores, 24 RT cores and 96 Tensor cores, 8GB GDDR6 memory
• PCIe Gen 4 x16 interface via golden finger
• 15.11 TFLOPS peak FP32 performance
Overview
| The Aetina N4060-VSFX enables exceptional performance, seamless multitasking, and stunning visuals within a remarkably compact PCIe card. Powered by the NVIDIA GeForce RTX 4060 GPU and the state-of-the-art Ada Lovelace, the N4060-VSFX offers realistic graphics acceleration and AI-powered ray tracing, driving up to 15.11 TFLOPS of performance at peak FP32. Built-in 3x DisplayPort 1.4a, 1x HDMI 2.1 connectors, and a rear-side 8-pin power supply interface, making it ideal for space-constrained small form factor PC systems, supporting up to four ultra-large displays for 8K video output. This card is a perfect fit for demanding gaming tasks and creative endeavors in various settings, from industry equipment to gaming consoles and desktops. |
| ● Compact, Mighty, and Versatile |
| The N4060-VSFX balances power and compact design, delivering peak performance of 15.11 TFLOPS in a compact form factor that fits any setup. The rear-mounted power supply design eliminates wasted space from top-mounted power cables, maximizing internal space utilization. This makes it ideal for small form factor PC systems, ensuring your gaming experience is never limited by space constraints. |
| ● Next-Gen Ray Racing and AI Graphics |
| The N4060-VSFX is powered by the NVIDIA GeForce RTX 4060, which is based on the NVIDIA Ada Lovelace architecture. With 4th-Gen Tensor Cores and 3rd-Gen RT Cores, it provides supercharged ray tracing, shading, rendering and AI features, including DLSS 3 and AI-driven graphics. Revel in the detail and fluidity that transform your games and creative tasks into hyper-realistic experiences. |
| ● Elevate Ultra-HD 8K Across a Multi-display Workplace |
| The N4060-VSFX features 3x DisplayPort and 1x HDMI connectors, supporting multiple ultra-large displays. It enables optimal 8K video output, delivering striking image quality and a truly immersive visual experience and enhanced workflow efficiency. |
| ● Power Pixels with 8GB GDDR6 |
| The N4060-VSFX is designed with an onboard 8GB GDDR6 large-capacity memory. Its 272 GB/sec memory bandwidth animates higher- speed data throughput and seamlessly displays up to 8K. |
Specifications
Model Number
N4060-VSFX
Bus Type
PCIe 4.0 x8
Form Factor
ATX
GPU Engine
GPU Architecture
NVIDIA Ada Lovelace
Graphics Processing Unit
NVIDIA GeForce RTX 4060
NVIDIA CUDA Cores
3072
Tensor Cores
96
RT Cores
24
Graphics Clock (MHz)
1830 (Base) / 2460 (Boost)
Floating Point
15.11 TFLOPS
Memory
Memory Size
8GB GDDR6
Memory Clock
17 Gbps
Memory Interface Width
128-bit
Memory Bandwidth
272 GB/Sec
Feature Support
DirectX
12 Ultimate
Vulkan
1.2
OpenGL
4.6
Operation System
Windows 10/11 64-bit / Linux
Display
Max. Displays per Board
4
Max. Digital Resoultion
7680 x 4320
Outputs
Outputs
DisplayPort 1.4a / HDMI 2.1 FRL
Power
Total Graphics Power (TGP)
115W
Min. System Power Requirement
550W
Supplementary Power Connectors
8-PIN
Thermal
Cooling
Active Fan
Mechanical & Environment
Dimensions (mm)
152.05 mm x 114.15 mm
Operation Temperature(Standard)
0℃ ~ +55℃ (32°F ~ 131°F)
Storage Temperature
-40 to + 85°C (- 40°F ~ 185°F)
Humidity
10~90% , Non-condensing
Certification
CE/FCC/UKCA

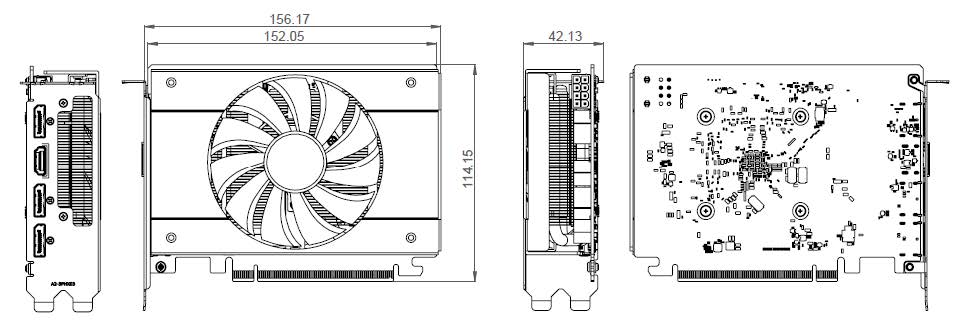

Dimensions
Ordering Information
| Model Number | Description |
|---|---|
| N4060-VSFX-A1 | PCIE Gen4.0 x8, NVIDIA GeForce RTX 4060, 8GD6, 3x DP/HDMI, Full-Height, 2 Slot, Active Thermal, 115W, 0°C to +55°C |
