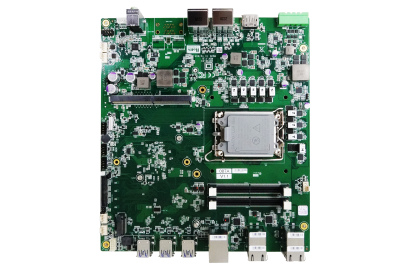

AIB-SQ67-A1
• Supports Intel® 12th/13th/14th Gen Core™ i7/i5/i3 processors, TDP 125W
• Intel® Q670E Chipset
• 5x DP++(Support MST), 1 from Integrated Graphic, 4 from MXM graphic card
• 5x 2.5G RJ45 LAN Ports
• 6x USB 3.2 Gen2 x1 Type-A
• 1x USB 3.2 Gen2 x2 Type-C
• 2x M.2 M-Key NVME Gen 4x4 SATA
Overview
The AIB-SQ67-A1 represents a significant advancement in our product portfolio, engineered to meet the demands of cutting-edge AI applications and complex data processing tasks. Powered by Intel® 12th/13th/14th Generation Core™ processors and the Intel® Q670E chipset, this motherboard features an MXM PCIe Gen4 x16 expansion slot for flexible integration of MXM module AI accelerator cards. Supporting up to 65W TDP, it enables customers to deploy intensive AI inference applications with an optimal balance of cost-effectiveness and high-performance computing.
| ● Enhanced Connectivity and Performance |
|
The AIB-SQ67-A1 delivers exceptional graphics capabilities through compatibility with NVIDIA® Ada GPU embedded MXM modules, supporting high-resolution multi-display configurations and graphics-intensive tasks. With its comprehensive connectivity suite - featuring 5x DP++ ports and extensive USB options, including a USB 3.2 Gen2 x2 Type-C port - this motherboard offers unparalleled flexibility for peripheral connectivity and system expansion, elevating both user experience and integration possibilities. |
| ● Networking and Expansion Capabilities |
|
Equipped with five 2.5G RJ45 LAN ports, the AIB-SQ67-A1 excels in environments demanding high-speed networking and data transfer. The dual M.2 M-Key slots support the latest 2280 NVME Gen 4x4 and SATA interfaces, providing ultra-fast storage solutions with future expansion potential for increased storage capacity. |
| ● Superior Visual AI Inference Applications |
|
The AIB-SQ67-A1 is particularly well-suited for smart city infrastructure, industrial automation, machine vision, and image recognition applications. Its robust processing capabilities and extensive I/O options make it the ideal choice for developers focused on AI inference, deep learning, and automated systems development requiring reliable and continuous operation. |
| ● Expansion Kit I/O & Peripheral Extension Function |
Specification
| Model Number | AIB-SQ67-A1 | |
| CPU | Intel LGA 1700 Socket Alder Lake-S processors. Support up to 125W processor | |
| Chipset | Intel® Q670E Chipset | |
| GPU Card(Optional) | MXM Type A、Type B、Type B+ | |
| System Memory | DDR5 SO-DIMM up to 32GB/Per DIMM , up to 4800MHz 64G | |
| Graphics | Controller: Intel UHD Graphics 770 driven by Xe Architecture DP++: 5 x DP++ (1 from CPU, 4 from MXM), resolution up to 4K @ 60Hz |
|
| Front I/O | 6 x USB3.2 Gen2x1 Type-A 1 x USB 3.2 Gen2x2 (20G) USB Type C Connector 5 x RJ45 LAN Connector(1+4),2.5G bps |
|
| Rear I/O | 4 x Display Port (DP++, From MXM Port A/B/C/D) 1 x Display Port(DP++, From CPU) 1 x Line Out. 1x Mic-In |
|
| Internal I/O | 4 x USB2.0 (Pin Header 2x5P,2.54mm pitch) 2 x SATA 3.0 (up to 6Gb/s) 4 x RS232/RS485/RS422 (COM1~4) , default RS232 by bios setting 2 x M.2 M Key for storage 1 x 8-bit GPIO |
|
| Expansion | 1 x MXM type B+ 2 x M.2 2280 M Key(PCIe/SATA) |
|
| Watchdog Timer | Output: System reset Interval: Programmable from 1 to 255 Seconds |
|
| Security | TPM 2.0 | |
| Power Input /Connector | DC-in 24V / 4-pin Terminal Block | |
| Dimension (Wx Dx H) |
248 x 222mm |
|
| Net Weight | 0.6 kg | |
| Temperature | Operating: 0 to 60°C Storage: -40 to 85°C |
|
| Humidity | Operating: 5 to 90% RH Storage: 5 to 90% RH |
|
| OS Support | Ubuntu 22.04、Windows 11 | |
| Certification | CE/FCC Class A/UKCA | |
Specifications
Ordering Information
| Model Number | Description |
|---|---|
| AIB-SQ67-A1 | Q670E MXM M/B, Support 5x LAN, 6x USB, 5x DP,1x Type-C USB, Audio, DC 24V, 0~60°C(W/ Terminal Plug、MXM Screws and SATA Cable) |
Downloads
| Model Name | File Name | OS | Version | Update Date | Download |
|---|---|---|---|---|---|
| AIB-SQ67-A1 | Aetina_AIB-SQ67-A1_datasheet | v3.0 | 2024-12-30 | View |
