• Powered by Rockchip RK3588 8-Core 64-bit processor
• LPDDR4X 8/16GB, eMMC 32GB
• AI-expansion ARM-based system, supporting multiple M.2 AI accelerators
• 2 x M.2 M-Key, one w/ PCIe 3.0 x4 for AI ASIC Accelerator, one w/SATA for Storage
• 1 x M.2 E-Key for WIFI/BT, 1 x Mini PCIe for LTE
• 1 x USB 3.2 Gen1, 1 x USB 2.0, 2 x GbE, 2 x COM, 1 x HDMI 2.1
The rapid growth in generative AI and edge computing has driven the demand for compact ARM-based edge AI platforms and drives continuous iteration of AI chips.
However, the time-intensive development of ARM devices with built-in neural processing units (NPUs) struggles to keep up with the fast-evolving AI chip technology, making it difficult for these platforms to stay aligned with the latest advancements in AI.
Aetina AI on ARM edge AI system, the AIE-KR1B-B1, powered by the Rockchip RK3588, seamlessly integrates with various AI acceleration cards, offering inference power from 13 TOPS for entry-level to 214 TOPS for high-performance edge applications. It is designed to boost real-time video analysis and object detection performance for varying AI acceleration demands, while the ability to swap AI modules without redevelopment ensures a quicker time to market.
Support diverse M.2 AI accelerators：Axelera, EdgeCortix, DeepX, MemryX, Hailo. Unlock inference performance from 13 TOPS to 214 TOPS for various AI acceleration demands in compact devices. Flexible & Cost-effective ARM-based solution for real-time object detection and video analysis. Unleash full potential of AI accelerator：M.2 Key M slot with PCIe Gen3 x4 signal, offering uncompromised bandwidth and faster data transfers.The AIE-KR1B-B1 enables seamless real-time video analytics, making it the go-to platform for accelerating smart security and retail applications, including multi-camera surveillance and customer behavior insights.
Support 32 Live 1080P Video Streams at 30 FPSAIE-KR1B-B1 significantly outperforms similarly priced x86 platforms that support only 7 to 13 channels.
Up to 8K video decoding and encoding AIE-KR1B-B1 features high resolution and precision for video analytics by 8K video processing.
Versatile Networking Connectivity & Ample StorageWith support for WiFi, Bluetooth, 4G/LTE, and Gigabit Ethernet (GbE), the AIE-KR1B-B1 ensures reliable connectivity for both wired and wireless communication in dynamic or remote edge environments. It also comes with 32GB of storage and an M.2 Key M slot that supports SATA, providing ample and versatile storage for various data processing needs.
Comprehensive Customization ServiceAetina offers comprehensive customization service including chip down design service, BSP customization for 3rd party devices, 3rd party software pre-installation and device integration service to accelerate the AI project development.
Compact & Low Power ConsumptionThe AIE-KR1B-B1 platform, with its compact M.2 form factor, offers a small footprint, low power consumption, and powerful AI computing, making it perfect for edge environments with space and power constraints.
| Model Number | AIE-KR1A-B1 | AIE-KR1B-B1 |
| CPU | Rockchip RK3588 | |
| Memory | LPDDR4X 8GB | LPDDR4X 16GB |
| Storage | 32GB eMMC 1 x Micro-SD slot 1 x M.2 M-Key 2280 (SATA3) for Storage (Bottom Side) |
|
| Display | 1 x HDMI 2.1 Type A (TMDS 3840x2160@60Hz) | |
| Audio | 1 x MIC-In, 1 x Line-Out, 1 x Line-In (Optional with daughter board) | |
| LAN | 2 x RJ45 GbE | |
| USB | 1 x USB 3.2 Gen1 (Type A) 1 x USB 2.0 (Type A) 1 x Type C for Programming |
|
| COM | 1 x DB9 for RS-232 (TXD/RXD/CTS/RTS) / RS-485 | |
| Expansion Slot | 1 x M.2 M-Key 2280 (PCIe 3.0 x4) for AI Accelerator (Top Side) 1 x M.2 E-Key 2230 (PCIe 2.1 x1+USB 2.0) for WIFI/BT 1 x Mini PCIe full-size (USB 2.0) for LTE w/micro SIM card holder |
|
| MISC. Function | 1 x Power Button 1 x Reset Button 1 x Maskrom Button 1 x OOB function (Optional with OOB module) |
|
| Power Input /Connector | DC-in 12V / Terminal block 2-pin | |

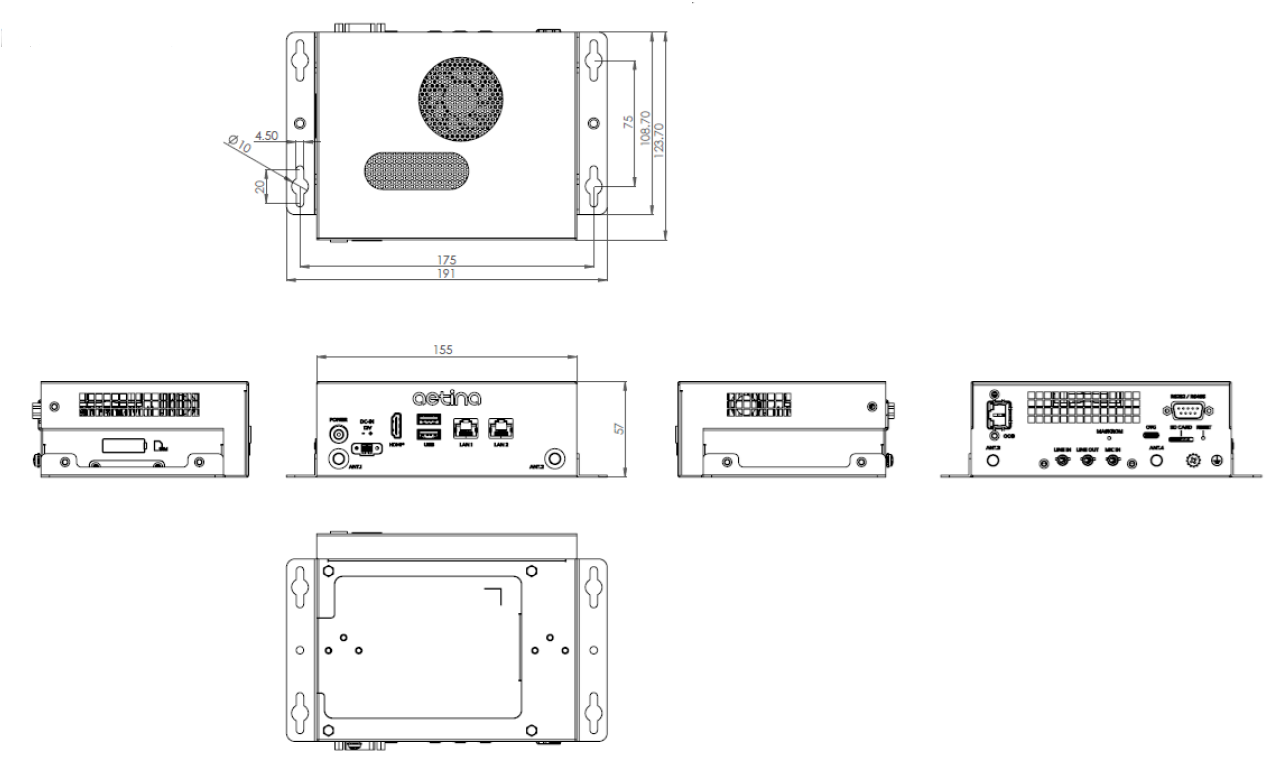

| Dimension (W x D x H) | 155 x 123 x 51mm (6.10”x 4.84”x 2.01”) | |
| Net Weight | 0.88 KG (1.94 lb) | |
| Temperature | Operating Temperature: 0°C ~ +65°C (32°F~ 140°F) Storage Temperature: -40°C ~ +85°C (-40°F ~ 185°F) |
|
| Humidity | 95% @ 40°C (Non-condensing) | |
| OS Support | Debian 11 | |
| Certification | CE/FCC | |
| Model Number | Description |
|---|---|
| AIE-KR1A-B1 | ROCKCHIP RK3588, 8GB LPDDR4X, 32GB eMMC, 1 x HDMI, 2 x GbE, 2 x USB, 2 x M KEY, 12 VDC INPUT, 0°C ~ +65°C |
| AIE-KR1B-B1 | ROCKCHIP RK3588, 16GB LPDDR4X, 32GB eMMC, 1 x HDMI, 2 x GbE, 2 x USB, 2 x M KEY, 12 VDC INPUT, 0°C ~ +65°C |
| Model Name | File Name | OS | Version | Update Date | Download |
|---|---|---|---|---|---|
| AIE-KR1A-B1 / AIE-KR1B-B1 | Aetina_AIE-KR1A-B1 / AIE-KR1B-B1_datasheet | v1.0 | 2025-03-25 | View |
