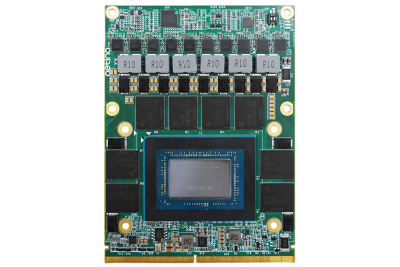

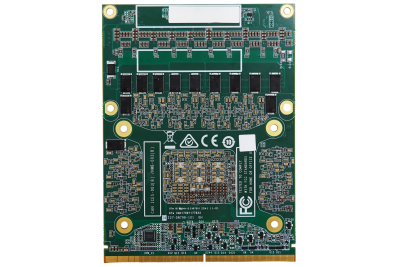

MX5000B-XA
• NVIDIA RTX PRO 5000 Blackwell Embedded GPU
•10,496 CUDA cores, 80 RT cores and 320 Tensor cores, 24GB GDDR7 memory
•PCIe Gen 4 x16 interface via golden finger
• 40.62 TFLOPS peak FP32 performance
Overview
Accelerate the Next Wave of AI with Aetina CoreEdge MX5000B-XA—Powered by NVIDIA RTX PRO 5000 Blackwell
The MX5000B-XA MXM 3.1 Type B GPU module built on NVIDIA RTX PRO 5000 Blackwell Embedded GPU, featuring NVIDIA CUDA and Ray Tracing technologies. Delivering exceptional AI performance, larger memory capacity, and greater throughput—perfect for high-performance edge AI applications. Aetina backs this solution with a 5-year product lifecycle, ensuring long-term reliability and support.Unlock Next-Gen AI Performance for Physical AI and Humanoid Robots
Purpose-built to accelerate demanding edge workloads and sophisticated graphics processing, such as multimodal AI, agentic AI, simulation, 3D graphics and multi-scenario rendering, advanced generative AI and complex real-time computing tasks.
Product Highlight — Aetina CoreEdge MX5000B-XA
| ● Up to 40.62 TFLOPS of FP32 Performance, plus Larger 24GB GDRR7 Memory, Driving Next-Gen Robotics |
| Accelerated by NVIDIA RTX PRO 5000 Blackwell embedded GPU, featuring 4th Gen RT Cores and 5th Gen Tensor Cores, the MX5000B-XA powers up real time edge AI performance and added support with FP4 precision, and NVIDIA DLSS 4 Multi-Frame Generation—enabling faster AI model computation and immersive AI-driven graphics. |
| ● Robust Durability with Enhanced Shock Resistance and Optional Conformal Coating |
| Compared with standard PCIe, the MXM form factor provides greater durability and SWaP optimization. The MX5000B-XA features four mounting holes on the MXM Type B module, ensuring secure installation and stable performance in high-vibration or space-constrained environments—ideal for robotics, autonomous systems and industrial deployments. For added protection in harsh conditions, all MXM modules in Aetina CoreEdge series also offer optional conformal coating services to guard against moisture, dust, and contaminants. |
| ● Support Wide Temp(-40°C to +70°C) & Configurable TGP Options, Flexible Deployment in Harsh Environments |
| The MX5000B-XA MXM supports industrial-grade extended temperatures (-40°C~+70°C) with high-reliability components and packaging. It passes comprehensive thermal tests, including thermal cycling and cold boot/start, with each unit verified in CHAMBER testing. Customizable power cap services enable flexible deployment in outdoor, in-vehicle, and industrial environments, delivering high performance and reliability. |
| ● Supports 4x DisplayPort 2.1a outputs for High-Res Display up to 8K — along with flexible customization options for specialized deployment scenarios. |
| 4x DP 2.1a ports enables multi-monitor setups with high resolution display for high-end 3D design and advanced graphics workloads. |
| ● Supports Error Correction Code (ECC) |
| ECC provides higher reliability for compute applications that are sensitive to data corruption, especially important in large-scale cluster computing environments where GPUs process extremely large datasets and/or run applications for extended periods. |
| ● Developer Evaluation Kits for MXM Modules |
| Aetina’s evaluation kits simplify early-stage AI development by offering a ready-to-use platform with PCIe Gen4 x16, 4x HDMI outputs, and support NVIDIA Blackwell, Ada Generation , Ampere and Turing architecture—ideal for quick testing of performance, compatibility, and application feasibility. |
Specifications
Model Number
MX5000B-XA (Preliminary)
Bus Type
PCI Express 4.0 x16 interface
Form Factor
MXM graphics module version 3.1, Type B
GPU Engine
GPU Architecture
NVIDIA Blackwell
Graphics Processing Unit
NVIDIA RTX PRO™ 5000 Blackwell Embedded GPU
NVIDIA CUDA Cores
10,496
Tensor Cores
320
RT Cores
80
Graphics Clock (MHz)
Base= 1402 / Boost= 1935
Floating Point
40.62 FP32 TFLOPS
Memory
Memory Size
24GB GDDR7
Memory Clock
28 Gbps
Memory Interface Width
256-bit
Memory Bandwidth
896 GB/sec
Feature Support
DirectX
12 Ultimate
Vulkan
1.2
OpenGL
4.6
Operation System
Windows 10-64bit / Windows 11 / Linux 64-bit
Display
Max. Displays per Board
Max: 4x DisplayPort 2.1a
Max. Digital Resoultion
7680 x 4320
Outputs
Outputs
DisplayPort 2.1a
Power
Total Graphics Power (TGP)
115W
Mechanical & Environment
Dimensions (mm)
82.0 x 110.0
Operation Temperature(Standard)
0℃ ~ +55℃ (32°F ~ 131°F)
Operation Temperature(Extended)
-40°C ~ +70°C (T.B.D)
Storage Temperature
-40°C ~ +85℃ (-40℉ ~ +185℉)
Humidity
40°C@ 95%, Non-condensing
Form Factor
MXM Graphics Module Version 3.1, Type B
Certification
CE/FCC/UKCA
Notes
*Display Resolution - 7680x4320：Up to 4k 12-bit HDR at 240Hz with DP1.4a+DSC. Up to 8k 12-bit HDR at 60Hz with DP 1.4a+DSC or HDMI2.0+DSC. With dual DP1.4a+DSC, up to 8K HDR at 120Hz. HDCP 1.2/1.4. (eDP, LVDS, VGA, USB-C display output are not supported)
Ordering Information
| Model Number | Description |
|---|---|
|
MX5000B-XAA-A1 |
MXM-B, NVIDIA RTX PRO 5000 Blackwell, Gen4.0 x16, 24GB GDDR7, 4xDP, 115W, 0°C to +55°C |
|
MX5000B-XAA-A2 (T.B.D.) |
MXM-B, NVIDIA RTX PRO 5000 Blackwell, Gen4.0 x16, 24GB GDDR7, 4xDP, 95W, 0°C to +55°C |
