MX2000B-VA
• NVIDIA® RTX PRO™ 2000 Blackwell Embedded GPU
•3328 CUDA cores, 26 RT cores and 104 Tensor cores, 8GB GDDR7 memory
•PCIe Gen 4 x8 interface via golden finger
• 13.78 TFLOPS peak FP32 performance
Overview
Accelerate the Next Wave of AI with Aetina CoreEdge MX2000B-VA—Powered by NVIDIA RTX PRO 2000 Blackwell

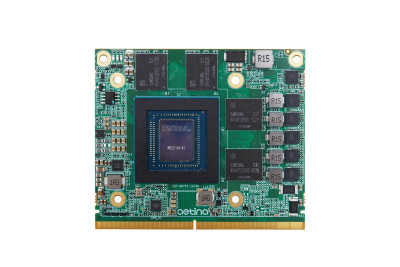

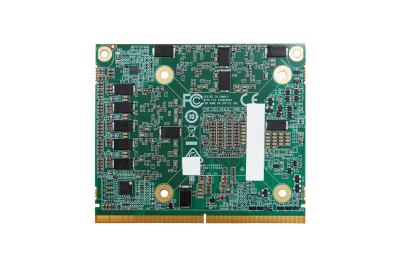

The MX2000B-VA MXM 3.1 Type A GPU module integrates NVIDIA RTX PRO 2000 Blackwell Embedded GPU, featuring NVIDIA CUDA and Ray Tracing technologies. Delivering exceptional AI performance, larger memory capacity, and greater throughput—perfect for high-performance edge AI applications. Aetina backs this solution with a 5-year product lifecycle, ensuring long-term reliability and support.New Addition：Professional Embedded GPU for Efficient Edge AI
In Aetina MXM series powered by NVIDIA RTX PRO Blackwell Embedded GPUs, the MX2000B-VA delivers essential acceleration for AI workloads and image processing tasks, perfect for lightweight edge AI applications for comparative low-power, space-limited deployments.
Product Highlight — Aetina CoreEdge MX2000B-VA
| ● Up to 13.78 TFLOPS of FP32 performance, plus larger 8GB GDRR7 memory |
| Accelerated by NVIDIA RTX PRO 2000 Blackwell Embedded GPU, featuring 4th Gen RT Cores and 5th Gen Tensor Cores, the MX2000B-VA powers up real time edge AI performance and added support with FP4 precision, and NVIDIA DLSS 4 Multi-Frame Generation—enabling faster AI model computation and immersive AI-driven graphics. |
| ● Support Wide Temp(-40°C to +85°C) & Protective Coating Options for Flexible Deployment in Harsh Environments |
| The MX2000B-VA MXM AI module supports industrial-grade extended temperatures (-40°C~+85°C) with high-reliability components and packaging. It passes comprehensive thermal tests, including thermal cycling, and cold boot/start, with each unit verified in CHAMBER testing. In addition, optional conformal coating provides an extra layer of protection, ensuring dependable performance in demanding and harsh environments. |
| ● Configurable TGP Service for Efficiency Optimization |
| Aetina’s CoreEdge MXM series offers optional configurable TGP (power cap) services — ideal for thermal-constrained deployments, power-constrained systems as well as scenarios requiring precise performance-to-power optimization. |
| ● Supports 3x DisplayPort 2.1a outputs for High-Res Display up to 8K — along with flexible customization options for specialized deployment scenarios. |
| 3x DP 2.1a ports enables multi-monitor setups with high resolution display for visual workloads. For applications where display output is unnecessary, a no-display option is also available. |
| ● Developer Evaluation Kits for MXM Modules |
| Aetina’s evaluation kits simplify early-stage AI development by offering a ready-to-use platform with PCIe Gen4 x16, 4x HDMI outputs, and support NVIDIA Blackwell, Ada Generation, Ampere and Turing architecture—ideal for quick testing of performance, compatibility, and application feasibility. |
Specifications
Model Number
MX2000B-VA (Preliminary)
Bus Type
PCI Express 4.0 x8
Form Factor
MXM graphics module version 3.1, Type A
GPU Engine
GPU Architecture
NVIDIA Blackwell
Graphics Processing Unit
NVIDIA RTX PRO™ 2000 Blackwell Embedded GPU
NVIDIA CUDA Cores
3328
Tensor Cores
104
RT Cores
26
Graphics Clock (MHz)
Base= 1522 / Boost= 2070
Floating Point
13.78 FP32 TFLOPS
Memory
Memory Size
8GB GDDR7
Memory Clock
24 Gbps
Memory Interface Width
128-bit
Memory Bandwidth
384 GB/sec
Feature Support
DirectX
12 Ultimate
Vulkan
1.2
OpenGL
4.6
Operation System
Windows 10-64bit / Windows 11 / Linux 64-bit
Display
Max. Displays per Board
Max: 3x DisplayPort 2.1a
Max. Digital Resoultion
7680 x 4320
Outputs
Outputs
DisplayPort 2.1a
Power
Total Graphics Power (TGP)
60W
Mechanical & Environment
Dimensions (mm)
82.0 x 70.0
Operation Temperature(Standard)
0℃ ~ +55℃ (32°F ~ 131°F)
Operation Temperature(Extended)
-40 to + 85°C (-40°F ~185°F) (T.B.D)
Storage Temperature
-40 to + 85°C (- 40°F ~ 185°F)
Humidity
40°C@ 95%, Non-condensing
Form Factor
MXM Graphics Module Version 3.1, Type A
Certification
CE/FCC/UKCA
Notes
*Display Resolution - 7680x4320：Up to 4k 12-bit HDR at 240Hz with DP1.4a+DSC. Up to 8k 12-bit HDR at 60Hz with DP 1.4a+DSC or HDMI2.0+DSC. With dual DP1.4a+DSC, up to 8K HDR at 120Hz. HDCP 1.2/1.4. (eDP, LVDS, VGA, USB-C display output are not supported)
Ordering Information
| Model Number | Description |
|---|---|
|
MX2000B-VAA-A1 |
MXM-A, NVIDIA RTX PRO 2000 Blackwell, Gen4.0 x8, 8GB GDDR7, 3xDP, 60W, 0°C to +55°C |
|
MX2000B-VAA-A2 (T.B.D.) |
MXM-A, NVIDIA RTX PRO 2000 Blackwell, Gen4.0 x8, 8GB GDDR7, 3xDP, 45W, 0°C to +55°C |
