Example:​

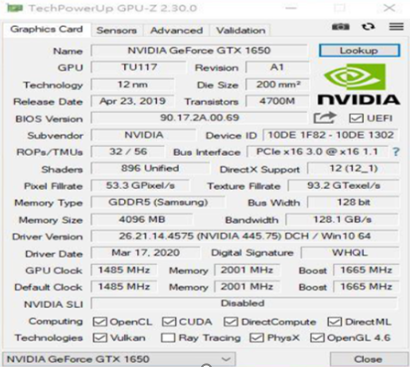

[1650 GDDR5]​

*Data Rate (Gbps/pin) = Clock Frequency (MHz) × 4 ​

8 Gbps/pin = 2000 MHz X 4​

*Bandwidth (GB/s) = (Data Rate per Pin (Gbps/pin) × Memory Bus Width (bit))/ 8 (bits/Byte)​

128 GB/s = 8 Gbps/pin X 128 bit/8 bits/Byte​



Example:​

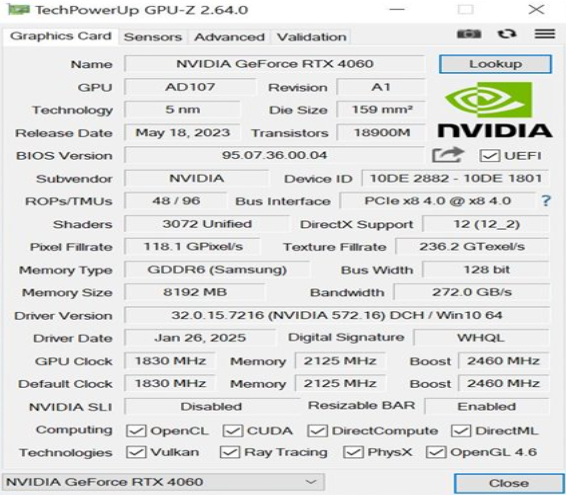

[4060 GDDR6]​

*Data Rate (Gbps/pin) = Clock Frequency (MHz) × 8 ​

17 Gbps/pin = 2125 MHz X 8​

*Bandwidth (GB/s) = (Data Rate per Pin (Gbps/pin) × Memory Bus Width (bit))/ 8 (bits/Byte) ​

272 GB/s = 17 Gbps/pin X 128 bit/8 bits/Byte​
