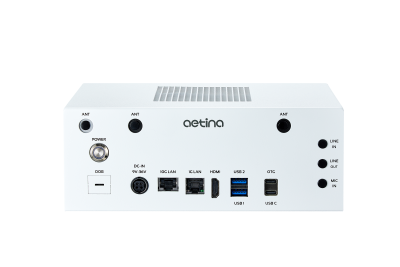

• Supports NVIDIA Jetson AGX Orin™ 32GB/64GB module
• Up to 275 TOPS of AI performance
• Wide input voltage range from 9 to 36VDC
• 1 x M.2 B-Key/1 x E-Key/1 x M-Key slot
• 1 x GbE, 1 x 10GbE LAN port
• Operating Temperature -25°C ~ +70°C
● 8 x AI performance enables AI inference with low latency |
The NVIDIA Jetson AGX Orin modules offer up to 275 TOPS, 8 times more than NVIDIA Jetson AGX Xavier™ 32GB module. Built in 2048 NVIDIA CUDA cores and 64 Tensor Cores, NVIDIA Jetson AGX Orin 64GB module enables server-class AI inference at the edge with low latency. |
● Comprehensive M.2 expansion and 1x10GbE LAN port |
AIE-KX13/23 is a system with high expansion ability, built in 1x M.2 B-Key for LTE/5G, 1x M.2 M-Key for storage and 1x M.2 E-Key for Wifi/Bluetooth/GPS. For network, on-board 1x10GbE port offers data speeds up to 10 billion bits per second, 10 times faster than traditional GbE standard. |
● Wide input power and operating temperature for various embedded applications |
To meet various embedded applications, especially challenging environments in smart factory, smart city, and smart transportation, AIE-KX13/23 supports operating temperature ranging from -25°C to 70°C and wide input power from 9 to 36VDC. |
Model Number | AIE-KX13 | AIE-KX23 |
Module Compatibility | NVIDIA Jetson AGX Orin 32GB | NVIDIA Jetson AGX Orin 64GB |
AI Performance | 200 TOPS | 275 TOPS |
GPU | 1792-core NVIDIA Ampere GPU with 56 Tensor Cores | 2048-core NVIDIA Ampere GPU with 64 Tensor Cores |
CPU | 8-core NVIDIA Arm Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 | 12-core NVIDIA Arm Cortex A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3 |
Memory | 32 GB 256-bit LPDDR5 204.8 GB/s | 64GB 256-bit LPDDR5 204.8 GB/s |
Storage | 64GB eMMC 5.1 | |
Display | 1 x HDMI 2.0 Type A | |
Audio | Line-out/Line-in/Mic (optional with daughter board) | |
LAN | 1 x RJ-45 GbE port, 1 x RJ-45 10GbE port | |
USB | 2 x USB 3.2 Gen1 Type A, 1 x USB 2.0 (DB-15), 1 x OTG Type-C, 1 x USB 3.2 Type-C Gen 2 | |
I/O Interfaces | 2 x I2C, 1 x SPI, 5 x GPIO 1 x RS-232, 1 x RS-422 / RS-485 2 x CAN 2.0b (isolation; support CAN FD) 1 x microSIM Card Slot |
|
Expansion | 1 x M.2 B-Key 3042/3052 (LTE/4G/5G, USB 3.2/USB 2.0) 1 x M.2 E-Key 2230 (Wifi/BT, PCIe/USB 2.0) 1 x M.2 M-Key 2280 (support NVMe, PCIe x2 Gen4) 1 x MicroSD Card Slot |
|
MISC. Function | 1 x Power / Recovery / Reset Button 2 x UART, 1 x UART (Debug only) |
|
Power Input/Connector | DC-IN 9 to 36 VDC / 4-Pin DC Jack Power Connector | |
Power Consumption | 32GB Idle: 9.655 W Full Loading: 55.25 W 64GB Idle: 9.9 W Full Loading: 75.25 W |
|
Dimension (WxDxH) | 210 x 124.7 x 79 mm | |
Mounting | Wall Mount / Din Rail (Optional) | |
Net Weight | 1969g | |
Vibration | 1 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis | |
Shock | 10 G, IEC 60068-2-27, half sine, 11 ms duration | |
Temperature | Operating Temp.-25 ~ +70°C / Storage Temp.-40 ~ +85°C | |
Humidity | 95% @ 40°C (104°F) (non-condensing) | |
Software Support | Linux (Support Jetpack 5.0 above) | |
Certification | CE/FCC Class A |
Model Number | Description |
---|---|
AIE-KX13-1-A1 |
AGX Orin 32GB, 1 x HDMI, 1 x GbE, 1 x 10GbE, 3 x USB, 1 x OTG, B/E/M Key, 1 x Fan, 9 to 36 VDC input, -25°C ~ +70°C |
AIE-KX23-1-A1 |
AGX Orin 64GB, 1 x HDMI, 1 x GbE, 1 x 10GbE, 3 x USB, 1 x OTG, B/E/M Key, 1 x Fan, 9 to 36 VDC input, -25°C ~ +70°C |
