AIP-SQ67-A1
• Supports Intel 12/13th Gen Core™ i7/i5 processors, TDP up to 65W
• 5 x DP++ (4 from MXM GPU Card, 1 from CPU)
• 1 x MXM PCIe Gen4 x16 slot for AI acceleration
• 2 x M.2 M-Key NVMe/SATA
• Swappable hard drive bay for 2 x 2.5" SATAIII SSD
• Built-in out-of-band (OOB) remote management module
• Supports device remote monitoring via EdgeEye
Overview
MegaEdge AIP-SQ67-A1 is an expandable AI inference platform that gives AI developers and system integrators superior graphics and edge AI capabilities. Benefiting from 12/13th Gen Intel Core™ processors and one extension AI accelerator MXM module slot built for boosting superlative AI acceleration, driving massive performance-driven tasks with up to 65W TDP. Low power profiles also reduce electrical consumption, which can help developers meet AI-multitasking and product sustainability goals.
| ● Precision AI Vision at the Edge, Boosting Efficiency, Ensuring Safety |
| AIP-SQ67-A1 is an ideal choice for seamless integration into vision-related AI applications, supporting various tasks such as object inspection, defect detection, graphics enhancement, and video analysis across a wide range of AI inference deployments at the edge. It excels in applications like Automated Optical Inspection (AOI) and advanced 3D virtual fence systems for workplace safety. When integrated with appropriate sensors and AI models, AIP-SQ67-A1 can efficiently execute real-time inference tasks, enhancing the efficiency of production workflows for management teams. |
| ● Expand Possibilities with Abundant I/O Extension |
| This x86 AI computer is designed to be built for any vision-based AI application that involves multiple sensors, heavy AI workloads, and fast image data analytics tasks. It includes one MXM extension slot that better leverages an advanced NVIDIA® GPU or Hailo-8TM MXM module for supercharged AI performance. The support of 5x DisplayPort (DP++) ports, 5x 2.5G RJ45 LAN ports, 6x USB 3.2 Gen2, and 1x USB 3.2 Type C, allowing users to integrate multiple and different cameras to get more data of image or video for analytics tasks. It also includes two M.2 M-Key slots enabling two 2280 NVMe SATA for expanded storage capacity supplementing from the inherent two 2.5" SATAIII SSD/HDD. |
| ● Using EdgeEye to Be A Pinnacle of Remote Management |
| With EdgeEye, the Aetina Device Remote Management Platform, AIP-SQ67-A1 can function as the central server of an AI-powered system for users to monitor all connected edge devices. Every AIP-SQ67-A1 has built-in a proven out-of-band (OOB) remote management module, tackling remote recovery challenges and making the edge device's maintenance swift, convenient, and effortless. |
Unleash AI Brilliance with MXM Module
Harnessing the strength of Aetina MXM GPU modules, the MegaEdge AIP-SQ67-A1 breaks through traditional limitations. These MXM modules, designed with robust, slim, and low power consumption align with unparalleled AI performance. This powerful combination empowers developers to deploy sophisticated AI applications right at the edge. Experience optimized AI performance that translates to faster processing, quicker insights, and enhanced decision-making in your AI operations.
Extended AI Power
Thin & Robust
Ready-to-Use
Conformal Coating
Compatible MXM series
MXM Powered by NVIDIA
-
M3A2000-VY
NVIDIA RTX A2000 Embedded GPU
Up to 8.25 TFLOPS peak FP32 performance -
M3A4500-WP
NVIDIA RTX A4500 Embedded GPU
Up to 18.55 TFLOPS peak FP32 performance -
M3T1000-PN
NVIDIA Quadro T1000 Embedded GPU
Up to TFLOPS peak FP32 performance
MXM Powered by Hailo-8™ Hailo
Specifications
| Model Number | AIP-SQ67-A1 | |
| CPU | Supports Intel® 12th Gen Core™ i7/i5 processors, TDP under 65W | |
| Chipset | Intel® Q670E Chipset | |
| GPU Card(Optional) | MXM Type A、Type B、Type B+ (Supports MXM PCIe Gen4 x16) | |
| System Memory | 2 x 262-pin Socket Support DDR5 SO-DIMM, Up To 32 GB Per DIMM | |
| Storage | 2x 2.5" SATAIII SSD/HDD 2x M.2 M Key Slot, Support PCIe x4 for NVME, Size 2280/SATA |
|

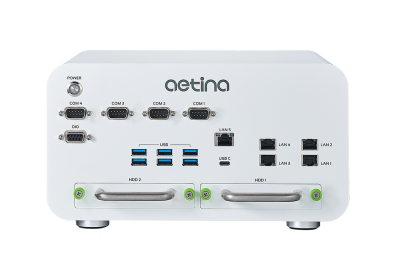

| Front I/O | 6 x USB3.2 Gen2 (10G) 1 x USB C (20G) 5 x RJ45 LAN Connector(1+4),2.5G bps 4 x RS-232/RS-422/RS-485 (COM1~4) 1 x DIO |
|

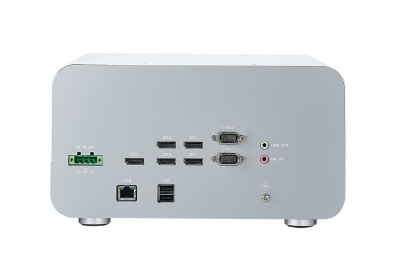

| Rear I/O | 4 x Display Port (DP++, From MXM Port A/B/C/D) 1 x Display Port(DP++, From CPU) 1 x Audio Jack, Support Line Out/Mic In 2 x CAN Bus-Isolation 2.0B(optional) 2x USB2.0 1x OOB |
|
| Expansion | 1 x MXM Slot 2 x M.2 M Key Slot, Support PCIe Gen4x4+ SATA Interface for NVME, Size 2280 (w/ Type B/B+ GPU Card needs to use wide temp. M.2 SSD) |
|
| RemoteManagement Function | OOB (out of band) | |
| Power Consumption | Full loading(Turbo-mode): 361 Watts(w/o MXM) | |
| Power Input /Connector | DC-in 24V / 4-pin Terminal Block | |
| Dimension (Wx Dx H) | 270 x 253 x 149 mm | |
| Mounting | Desk mount/Wall mount | |
| Net Weight | 5.5 kg (12.13 lb) | |
| Vibration | (OP)3 Grms ,IEC60068-2-64,Random,5 ~ 500 Hz ,1Hr / Axis | |
| Shock | (OP)10 G, IEC 60068-2-27, Half Sine, 11 ms Duration | |
| Temperature | Operating Temp.:0°C ~ + 50°C (With Expansion Kit)(32°F ~ 122°F) / Storage Temp.: -40°C ~ + 85°C (- 40°F ~185°F) |
|
| Humidity | 95% @ 40°C Related Humidity, Non-condensing | |
| OS Support | Ubuntu 22.04、Windows 10 | |
| Certification | CE/FCC Class B | |
Specifications
Ordering Information
| Model Number | Description |
|---|---|
|
AIP-SQ67-A1 |
Q670E MXM System(Barebone), 2x DDR5, 5x LAN, 8x USB, 4x COM, 5x DP, 8bit DIO,1x Type-C USB, 2x 2.5”SSD, OOB, |
|
AIP-SQ67-A1 |
Q670E MXM System, 2x DDR5, 5x LAN, 8x USB, 4x COM, 5x DP, 8bit DIO,1x Type-C USB, 2x 2.5”SSD, OOB, Audio, DC |
|
AIP-SQ67-A1 |
Q670E MXM System, 2x DDR5, 5x LAN, 8x USB, 4x COM, 5x DP, 8bit DIO,1x Type-C USB, 2x 2.5”SSD, OOB, Audio, DC |
