M3T1000-PN

NVIDIA Quadro T1000 embedded graphics based on NVIDIA Turing architecture
896 CUDA cores, 4GB GDDR6 memory
2.6 TFLOPS peak FP32 performance
Support up to 4x DisplayPort 1.4 displays
Support CUDA Compute version 7.5, OpenCL 1.2, OpenGL 4.6, DirectX 12 and Vulkan 1.1 API
5 year life cycle availability


Overview

From stunning industrial design to advanced special effects to complex scientific visualization, Quadro is the best visual computing platform. M3T1000-PN MXM module features advanced NVIDIA Quadro graphics cards with Turing Architecture technology in the MXM 3.1 Type A form, bringing amazing visual computing performance and power-efficiency into every embedded system.

▼ Read More ▼

M3T1000-PN is a powerful MXM GPU module based on 4GB GDDR6 memory, providing 12.0 Gbps memory clock and 192 GB/sec high memory bandwidth. M3T1000-PN not only brings 896 CUDA cores and 2.6 TFLOPS of computing ability, but also supports 8K(7680x4320) or 4x FHD displays, which offering the most flexible solution for high-performance computing demands embedded applications.

● Advanced NVIDIA Quadro graphics cards with Turing Architecture technology
M3T1000-PN is powered by NVIDIA Quadro T1000 GPU, with core of NVIDIA Turing TU117 which is driven by groundbreaking NVIDIA Turing GPU architecture. Built with the high-speed and high bandwidth memory technology to deliver more I/O throughput, better performance and higher power efficiency, M3T1000-PN delivers ultimate performance to tackle new possibilities in massive-computing workstation applications.
● DisplayPort 1.4 ready, supports 8K(7680x4320) or 4 FHD displays
M3T1000-PN pushes the image quality to new heights with supporting up to 8K(7680x4320) resolution, 4 FHD displays and NVEncode/NVDecode.
● Robust industrial-grade design with extended temperature and conformal coating service for option
Aetina embedded MXM modules are designed with industrial-grade components used, ensures its high-quality data transferring even at wide temperature ranging from -40°C to 85°C. Additionally, Aetina offers conformal coating service on its complete range of MXM module to meet the rigors of harsh industrial. Those advantages make it ideally suitable for massive-computing embedded applications in rugged environments.
● Your Longevity Industrial Partner
Longevity is Aetina's promise to the customers. MXM modules have 5 years long-term supply, help the clients to overcome the problem of the long development period and exclusive engineering support team is available for each customer. Also, Aetina provides industrial components that can extend the lifespan of the product, helping customers to reduce costing and time from maintaining.

Specifications

Model Number
M3T1000-PN
Bus Type
PCI Express 3.0
Form Factor
MXM graphics module version 3.1, Type A
GPU Engine
GPU Architecture
NVIDIA Turing™ TU117
Graphics Processing Unit
NVIDIA Quadro T1000
Nvidia CUDA Cores
896
Memory
Memory Size
4GB GDDR6
Memory Clock
12.0 Gbps
Memory Interface Width
128 bit
Feature Support
DirectX
12
Vulkan
1.1 API
OpenCL
1.2
Operation System
Windows 10 64 bit
Linux 64 bit
Display
Max. Displays per Board
4
Max. Digital Resoultion
7680 x 4320
Power
Max.Board Power Consumption
50 W
Mechanical & Environment
Dimensions (mm)
82 x 70 mm
Operation Temperature(Standard)
0℃ ~ +55℃ (32°F ~ 131°F)
Operation Humidity
5% ~ 90%

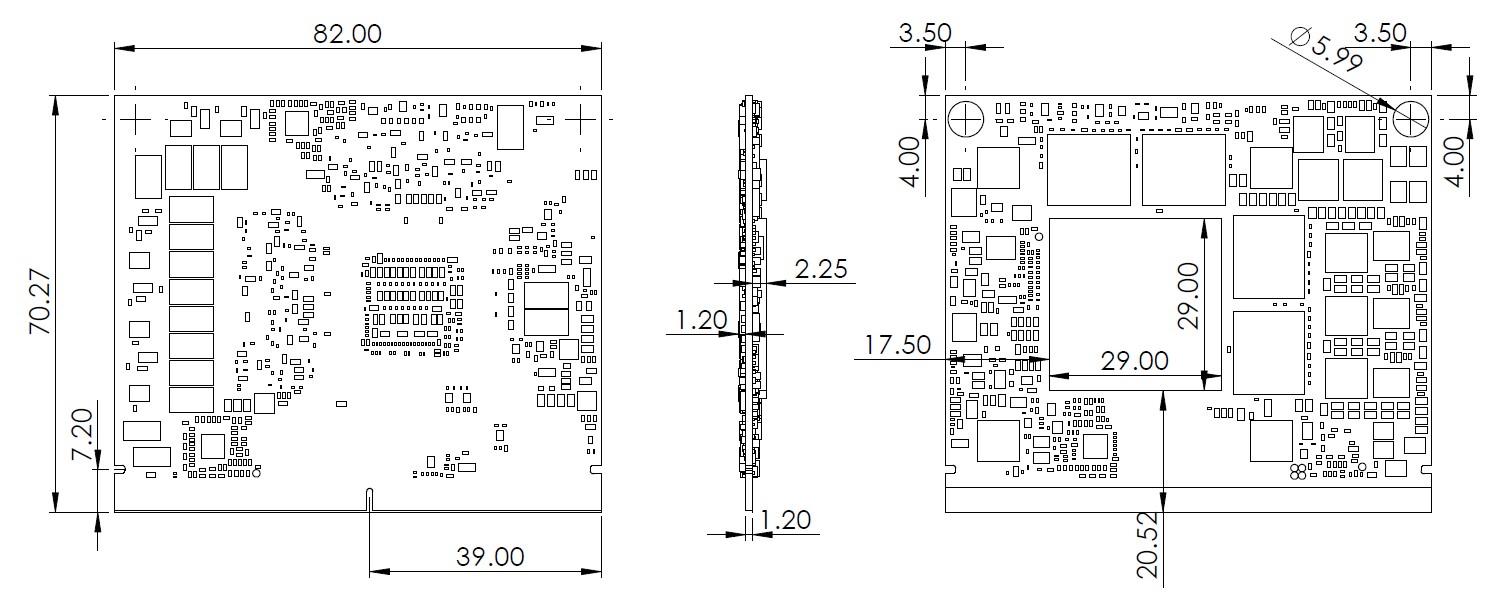

Dimensions

M3T1000-PN dimension

Ordering Information

Model Number Description
M3T1000-PN MXM3.1 Type A, NVIDIA Quadro T1000, 4GB GDDR6, 0°C to +55°C
M3T1000-PN-A MXM3.1 Type A, NVIDIA Quadro T1000, 4GB GDDR6, -40°C to +85°C

Downloads

Model Name File Name OS Version Update Date Download
M3T1000-PN Aetina_MXM_M3T1000-PN_datasheet v2.1 2023-04-24 View
Model Name File Name OS Version Update Date Download
M3T1000-PN 537.99-quadro-rtx-desktop-notebook-win10-win11-64bit-international-dch-whql Win10/11 64bit 537.99 2023-12-13 View
