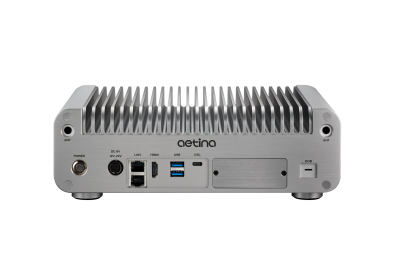

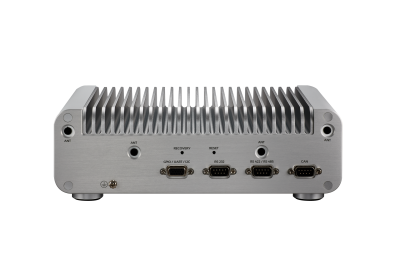

AIE-PO22/32-S2 | AIE-PN32/42-S2

• Supports Super Mode for NVIDIA® Jetson Orin Nano™ /Orin™ NX
• 1 x M.2 B-Key/E-Key/M-Key (NVMe 128GB built-in)
• 2 x RJ-45 GbE Ports
• Wide Input Voltage Range 12 to 24 VDC
• Operating temperature -25°C ~ +55°C
• Fanless Design

                                           
NVIDIA Preferred Partner

Overview

Unlock Superior Vision AI with with Super Mode for NVIDIA Jetson Orin NX / Orin Nano
Designed for Sensor fusion, precise positioning, real-time transmission


AIE-PO22/32-S2 | AIE-PN32/42-S2 is a fanless edge AI computing system that activates Super Mode for NVIDIA Jetson Orin Nano/ Orin NX module with NVIDIA Jetpack 6.2. It delivers 2X generative AI model performance and 50% higher memory bandwidth, enabling demanding vision AI and Gen AI workloads. Engineered to handle the increased thermal and voltage demands of more AI power, this system ensures stable operation while supporting flexible camera connectivity, precise positioning, and customized system integration. Backed by a 5-year product lifecycle, Aetina ensures long-term reliability and support.

This product is available in the following configurations:

  • AIE-PN32/42-S2, powered by NVIDIA Jetson Orin NX with Super Mode 8GB/16GB, delivers up to 157 TOPS (from 100 TOPS)
  • AIE-PO22/32-S2, powered by NVIDIA Jetson Orin Nano with Super Mode 4GB/8GB, delivers up to 67 TOPS (from 40 TOPS)

Product Benefits

Product Benefits Description
Accelerated GenAI Performance, Lower TCO NVIDIA Jetson Orin NX/Orin Nano with Super Mode enables a AI performance leap while reducing TCO (total cost of ownership)：
▪ Up to 70% increase in AI compute
▪ Up to 50% increase in memory bandwidth
▪ Up to 2x gain in generative AI model performance
Connectivity and Positioning Precise Positioning & Extensive Wired and Wireless Networking
▪ Support M.2 B-Key for 4G / 5G / LTE with GPS 1PPS function for precise time synchronization at 1.8V / 3.3V
▪ Support M.2 E-key for Wi-Fi/BT
▪ Support 2 x RJ-45 GbE Ports

Integrated Peripherals, Plug & Play A wide selection of validated peripherals, including cameras, Wi-Fi, 4G, 5G shortens development time and speeds up AI adoption.
OOB and TPM2.0 for Secure, Scalable Device Management ▪ Support OOB (out-of-band) management with Aetina EdgeEye platform for remote monitoring and system maintenance
▪ Built-in TPM 2.0 for hardware-based security against firmware attacks and physical tempering.

Edge Ready Industrial Design ▪ Wide voltage input：12-24 VDC
▪ Wide operating temperature：-25°C ~ +55°C
NVIDIA Jetpack™ 6.2 Support Available from NVIDIA Jetpack™ 6.2 and above
Long-Term Product Longevity 5-year product life cycle, backed by Aetina’s decade-plus expertise in edge AI and software integration and strong technical and R&D team
Targeted Applications ▪ Smart cities and traffic analysis
▪ Smart security and defense
▪ Smart retail and operations
▪ Logistics robots and AMRs
▪ Precision agriculture
▪ Smart manufacturing and automation
▪ Autonomous robotics


Supercharge with Super Mode for NVIDIA Jetson Orin NX/ Orin Nano

Aetina_NVIDIA Elite partner_Super Mode Comparison
  Orin Nano 4GB Orin Nano 4GB
(Super)		 Orin Nano 8GB Orin Nano 8GB
(Super)		 Orin NX 8GB Orin NX 8GB
(Super)		 Orin NX 16GB Orin NX 16GB
(Super)
GPU Cores 512 CUDA Cores

16 Tensor Cores		 512 CUDA Cores

16 Tensor Cores		 1024 CUDA Cores

32 Tensor Cores		 1024 CUDA Cores

32 Tensor Cores		 1024 CUDA Cores

32 Tensor Cores		 1024 CUDA Cores

32 Tensor Cores		 1024 CUDA Cores

32 Tensor Cores		 1024 CUDA Cores

32 Tensor Cores
GPU Max Frequency 625 MHz 1020 MHz 625 MHz 1020 MHz 765 MHz 1173 MHz 918 MHz 1173 MHz
Peak AI Performance INT8 20 TOPS 34 TOPS 40 TOPS 67 TOPS 70 TOPS 117 TOPS 100 TOPS 157 TOPS
GPU Performance (S/D) 20/10 TOPs 34/17 TOPs 40/20 TOPs 67/33 TOPs 50/25 TOPs 77/38 TOPs 60/30 TOPs 77/38 TOPs
CPU 6X A78

1.5 GHz		 6X A78

1.7 GHz		 6X A78

1.5 GHz		 6X A78

1.7 GHz		 6X A78

2.0 GHz		 6X A78

2.0 GHz		 8X A78

2.0 GHz		 8X A78

2.0 GHz
SPEC int rate 106 118 106 118 130 167 167 167
DLA Performance (S/D) N/A N/A N/A N/A 20/10 TOPs 40/20 TOPs 40/20 TOPs 80/40 TOPs
DRAM BW 34 GB/s 51 GB/s 68 GB/s 102 GB/s 102 GB/s 102 GB/s 102 GB/s 102 GB/s
Mechanical 70 x 45 mm

260 pins		 70 x 45 mm

260 pins		 70 x 45 mm

260 pins		 70 x 45 mm

260 pins		 70 x 45 mm

260 pins		 70 x 45 mm

260 pins		 70 x 45 mm

260 pins		 70 x 45 mm

260 pins
Module Power 7W | 10W 7W | 10W | 25W 7W | 15W 10W | 15W | 25W 10W | 15W | 20W 10W | 15W | 25W | 40W 10W | 15W | 25W 10W | 15W | 25W | 40W

Specifications

Model Number AIE-PO22-1-S2 AIE-PO32-1-S2 AIE-PN32-1-S2 AIE-PN42-1-S2
Module Compatibility NVIDIA Jetson Orin Nano with Super Mode 4GB NVIDIA Jetson Orin Nano with Super Mode 8GB NVIDIA Jetson Orin NX with Super Mode 8GB NVIDIA Jetson Orin NX with Super Mode 16GB
AI Performance 34 TOPS 67 TOPS 117 TOPS 157 TOPS
GPU 512 Core NVIDIA Ampere, with 16 Tensor Cores 1024 Core NVIDIA Ampere, with 32 Tensor Cores 1024 Core NVIDIA Ampere, with 32 Tensor Cores
CPU 6-core Arm® Cortex®-A78AE v8.2 64-bit 1.5MB L2 + 4MB L3 6-core Arm® Cortex® -A78AE v8.2 64-bit 2MB L2 + 4MB L3 8-core Arm® Cortex® -A78AE v8.2 64-bit 2MB L2 + 4MB L3
Memory 4GB 64-bit LPDDR5 51 GB/s 8GB 128-bit LPDDR5 68 GB/s 8GB 128-bit LPDDR5 102.4 GB/s 16GB 128-bit LPDDR5 102.4 GB/s
Storage 1 x M.2 M-Key 2242 (NVMe 128GB built-in)
Display 1 x HDMI 2.0 Type A
RTC RTC Battery 2032
LAN 2 x RJ-45 GbE Ports
USB 2 x USB 3.2 Gen2 Type A (supports up to 10Gbps shared)
1 x OTG Type-C
I/O Interfaces 5 x GPIO,
1 x UART,
1 x I2C,
1 x RS-232,
1 x RS-422/485 (2-in-1),
1 x CAN (isolation; support CAN FD)
Expansion 1 x M.2 B-Key 3042/3052 (LTE/4G/5G) with 1PPS function supported at 1.8V / 3.3V)
1 x M.2 E-Key 2230 (WiFi/BT)
1 x M.2 M-Key 2242 (NVMe 128GB built-in)
MISC. Function 1 x Power Button, 1 x Recovery Button, 1 x Reset Button
Power Input/Connector DC-in 12-24VDC / 4-Pin DC Jack Power Connector
Power Consumption Idle: 6.413 W
Full Loading: 43.13* W		 Idle: 6.413 W
Full Loading: 43.13* W
*For more test condition information, please refer to user manual
Dimension (WxDxH) 270 x 195 x 80 mm (10.63 x 7.67 x 3.15 in)
Mounting Wall Mount (optional) / Din Rail (optional)
Net Weight 4.2 kg (9.7 lb)
Vibration 1 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
Shock 10 G, IEC 60068-2-27, half sine, 11 ms duration
Temperature Operating Temp.: -25°C ~ +55°C (-13°F ~ +131°F) with 0.5 m/s air flow
Storage Temp.: -40°C ~ +85°C (-40°F ~ +185°F)
*With full CPU+GPU stressing: System non-throttling at 50C with 40W (MAXN Mode)
Humidity 95% @ 40°C (104°F) (non-condensing)
Software Support Linux (Support NVIDIA JetPack 6.2 and above)
Certification CE / FCC Class A / UKCA

*Product specifications are subject to change without prior notice

Why Aetina

Value-Added Points Description
NVIDIA Elite Partner Priority access to NVDIA technologies and Jetson products, helping clients innovate faster and scale within the NVIDIA ecosystem.
End-to-End Customization and Integration From chassis and thermal design to BSP integration, Aetina partners with customers throughout solution planning and system validation, providing tailored solutions with detailed test reports to meet every unique deployment requirement.
Collaborative AI Deployments With over a decade of edge AI expertise and a robust ecosystem, Aetina provides comprehensive technical and team support to simplify integration and accelerate time to deployment.

Rich Set of Validated
Peripherals		 Backed by NVIDIA ecosystem partners and the Innodisk Group, Aetina offers a wide range of fully validated peripherals—including storage, cameras, Wi-Fi, and 4G/5G—reducing integration time and overall system cost.


FAQ

Question Answer
What is Super Mode for NVIDIA Jetson Orin NX/Orin Nano? Super Mode is a performance-boosting mode available via NVIDIA JetPack 6.2 that increases AI compute performance on NVIDIA Jetson Orin NX/Orin Nano.
▪ Up to 70% increase in AI compute
▪ Up to 50% increase in memory bandwidth
▪ Up to 2x gain in generative AI model performance
How much performance improvement can I expect? ▪ NVIDIA Jetson Orin NX with Super Mode 16GB:  AI performance from 100 TOPS to 157 TOPS
▪ NVIDIA Jetson Orin NX with Super Mode 8GB:  AI performance from 70 TOPS to 117 TOPS
▪ NVIDIA Jetson Orin Nano with Super Mode 8GB:  AI performance from 40 TOPS to 67 TOPS
▪ NVIDIA Jetson Orin Nano with Super Mode 4GB:  AI performance from 20 TOPS to 34 TOPS

How do I enable Super Mode for NVIDIA Jetson Orin NX/Orin Nano? ▪ If you have purchased Aetina systems powered by NVIDIA Jetson Orin NX/Orin Nano, click here to update JetPack 6.2.
▪ If you haven’t purchased Aetina’s systems, please read Aetina's jetson product list to find you system that support Super Mode.
Which hardware platforms support Super Mode? Here are Aetina featured edge AI system powered by NVIDIA Jetson Orin NX with Super Mode：
1. Fanless：AIE-PO22/32-S2 | AIE-PN32/42-S2
2. Fan-based：AIE-KN32/42-S2 | AIE-KO22/32-S2
3. Platform：AIB-MO22/32-S2 | AIB-MN32/42-S2

Specifications

Start to compare
0

Ordering Information

Model Number Description

AIE-PO22-1-S2

NVIDIA Jetson Orin Nano 4GB, 1 x HDMI, 2 x GbE, 2 x USB, 128GB SSD, B/E/M Key, 12 to 24 VDC input, -25°C ~ +55°C

AIE-PO32-1-S2

NVIDIA Jetson Orin Nano 8GB, 1 x HDMI, 2 x GbE, 2 x USB, 128GB SSD, B/E/M Key, 12 to 24 VDC input, -25°C ~ +55°C

AIE-PN32-1-S2

NVIDIA Jetson Orin NX 8GB, 1 x HDMI, 2 x GbE, 2 x USB, 128GB SSD, B/E/M Key, 12 to 24 VDC input, -25°C ~ +55°C

AIE-PN42-1-S2

NVIDIA Jetson Orin NX 16GB, 1 x HDMI, 2 x GbE, 2 x USB, 128GB SSD, B/E/M Key, 12 to 24 VDC input, -25°C ~ +55°C
