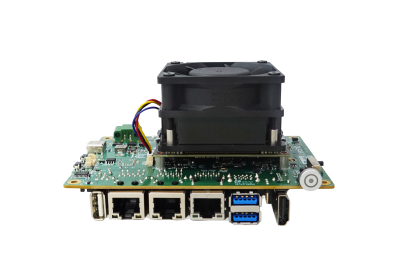

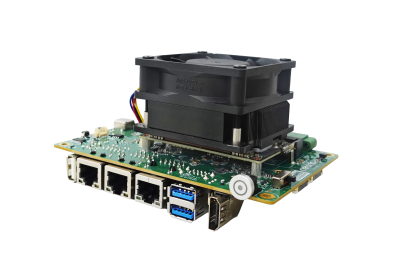

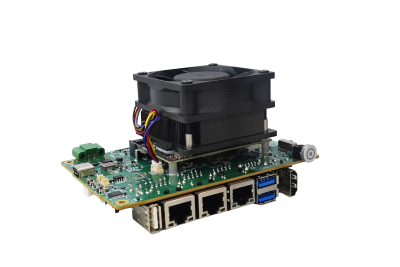

AIB-MO23/33-S1 | AIB-MN33/43-S1 side AIB-MO23/33-S1 | AIB-MN33/43-S1 front AIB-MO23/33-S1 | AIB-MN33/43-S1 side2
Prev
Next
AIB-MO23/33-S1 | AIB-MN33/43-S1 side AIB-MO23/33-S1 | AIB-MN33/43-S1 front AIB-MO23/33-S1 | AIB-MN33/43-S1 side2

AIB-MO23/33-S1 | AIB-MN33/43-S1

• Supports NVIDIA® Jetson Orin Nano™ /Orin™ NX with Super Mode
• 1 x M.2 B-Key/ E-Key/ M-Key (NVMe 128GB built-in)
• 1 x RJ-45 for GbE
• 2 x IEEE 802.3af GbE PSE Ports
• Power Input Voltage Range 12 to 24 VDC
• Operating temperature -25°C ~ +80°C

                                           
NVIDIA Preferred Partner

Overview

Mini AI. Mighty Vision.
Palm-Sized Edge AI, Built for Real-World Vision Intelligence


Aetina AIB-MO23/33∣AIB-MN33/43 is a powerful palm-sized edge AI system in a compact 127 x 85.75 x 28.45 mm form factor. Powered by NVIDIA Jetson Orin Nano / Orin NX with Super Mode, it delivers high-performance Vision AI with up to 157 TOPS. The system supports dual MIPI/PoE cameras and full wired/wireless connectivity including 4G/5G/LTE, Wi Fi, and Bluetooth, making it ideal for diverse edge applications. With a reliable 5 year product lifecycle, it ensures long-term support and stability.

Available configurations:

  • AIB-MO23/33 powered by NVIDIA Jetson Orin Nano with Super Mode 4GB/8GB, delivers up to 67 TOPS
  • AIB-MN33/43, powered by NVIDIA Jetson Orin NX with Super Mode 8GB/16GB, delivers up to 157 TOPS

Product Benefits

Product Benefits Description
Palm-Sized Design, Mighty AI Power

▪Ultra-compact 127 x 85.75 x 28.45 mm form factor, optimized for space-constrained edge AI deployments.

▪Despite its small form factor, the platform accelerated by NVIDIA Jetson Orin NX with Super Mode delivers up to 157 TOPS of AI performance.
Dual PoE & MIPI Camera Support

▪Supports MIPI and PoE dual-camera Vision AI for real-time image capture and edge AI inference.

▪Up to 2x PoE / MIPI cameras, enabling high-performance multi-camera deployments.

4G/5G/LTE, Wi-Fi/BT Connectivity

▪Equipped with 1 × M.2 B-Key / E-Key / M-Key slot with built-in NVMe 128GB storage.

▪Wired and wireless connectivity ensures always-on edge intelligence in diverse deployment scenarios.
One-Stop Integration & Peripherals Support

▪Integrated peripherals, BSP customization, and dedicated technical support accelerate AI deployment.

▪A wide selection of validated peripherals, including cameras, Wi-Fi, 4G, 5G shortens development time and simplifies edge AI adoption.

Industrial-Grade Reliability

▪Wide voltage input: 12–24 VDC

▪Operating temperature: -25°C ~ +80°C
NVIDIA Jetpack™ 6.2 Support ▪Available from NVIDIA Jetpack™ 6.2 and above
Long-Term Product Longevity ▪5-year product life cycle, backed by Aetina’s decade-plus expertise in edge AI and software integration and strong technical and R&D team
Targeted Applications ▪ Smart cities and traffic analysis
▪ Smart security and defense
▪ Smart retail and operations
▪ Logistics robots and AMRs
▪ Precision agriculture
▪ Smart manufacturing and automation
▪ Autonomous robotics

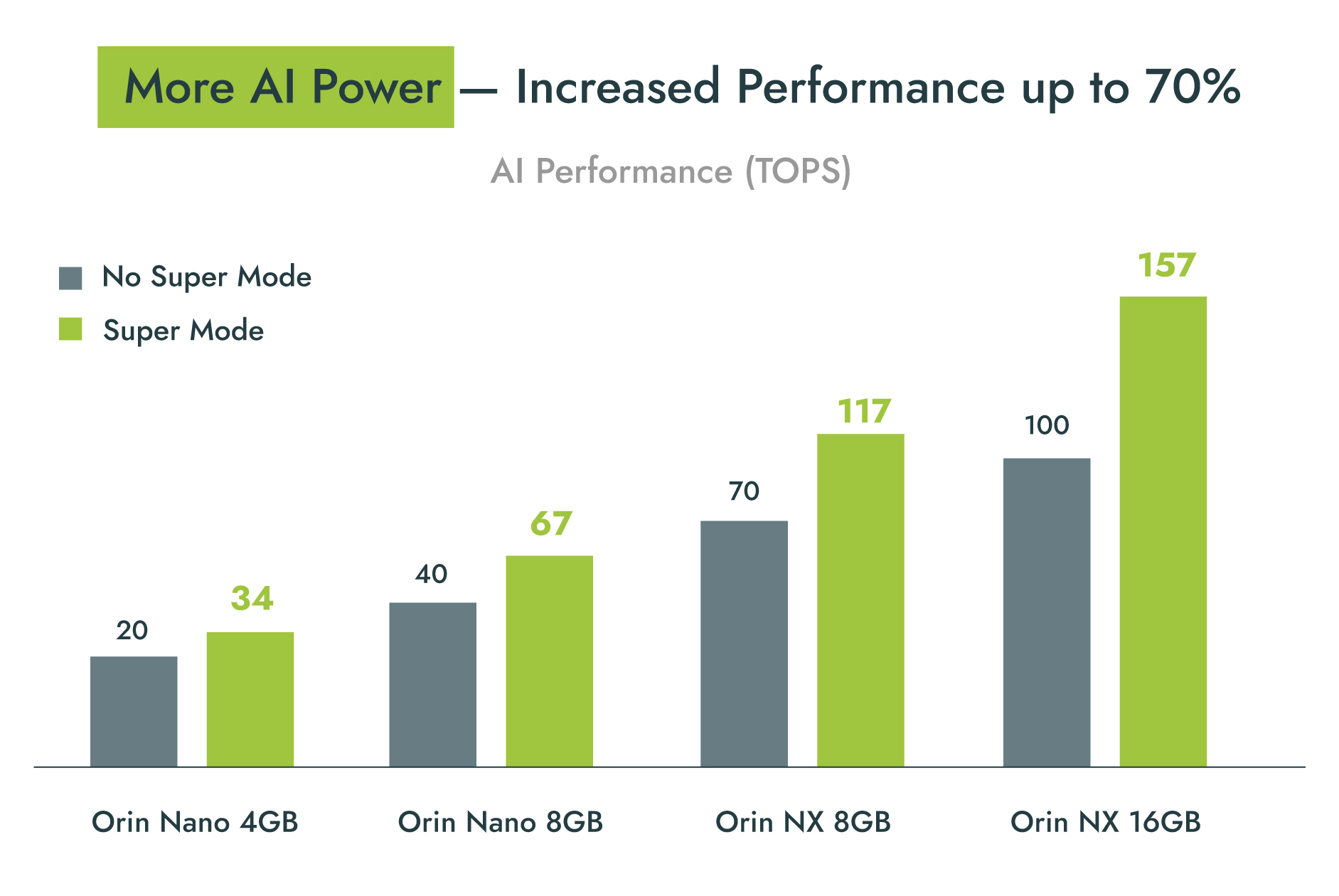

Supercharge with Super Mode for NVIDIA Jetson Orin NX/ Orin Nano

Aetina_NVIDIA Elite partner_Super Mode Comparison
  Orin Nano 4GB Orin Nano 4GB
(Super)		 Orin Nano 8GB Orin Nano 8GB
(Super)		 Orin NX 8GB Orin NX 8GB
(Super)		 Orin NX 16GB Orin NX 16GB
(Super)
GPU Cores 512 CUDA Cores

16 Tensor Cores		 512 CUDA Cores

16 Tensor Cores		 1024 CUDA Cores

32 Tensor Cores		 1024 CUDA Cores

32 Tensor Cores		 1024 CUDA Cores

32 Tensor Cores		 1024 CUDA Cores

32 Tensor Cores		 1024 CUDA Cores

32 Tensor Cores		 1024 CUDA Cores

32 Tensor Cores
GPU Max Frequency 625 MHz 1020 MHz 625 MHz 1020 MHz 765 MHz 1173 MHz 918 MHz 1173 MHz
Peak AI Performance INT8 20 TOPS 34 TOPS 40 TOPS 67 TOPS 70 TOPS 117 TOPS 100 TOPS 157 TOPS
GPU Performance (S/D) 20/10 TOPs 34/17 TOPs 40/20 TOPs 67/33 TOPs 50/25 TOPs 77/38 TOPs 60/30 TOPs 77/38 TOPs
CPU 6X A78

1.5 GHz		 6X A78

1.7 GHz		 6X A78

1.5 GHz		 6X A78

1.7 GHz		 6X A78

2.0 GHz		 6X A78

2.0 GHz		 8X A78

2.0 GHz		 8X A78

2.0 GHz
SPEC int rate 106 118 106 118 130 167 167 167
DLA Performance (S/D) N/A N/A N/A N/A 20/10 TOPs 40/20 TOPs 40/20 TOPs 80/40 TOPs
DRAM BW 34 GB/s 51 GB/s 68 GB/s 102 GB/s 102 GB/s 102 GB/s 102 GB/s 102 GB/s
Mechanical 70 x 45 mm

260 pins		 70 x 45 mm

260 pins		 70 x 45 mm

260 pins		 70 x 45 mm

260 pins		 70 x 45 mm

260 pins		 70 x 45 mm

260 pins		 70 x 45 mm

260 pins		 70 x 45 mm

260 pins
Module Power 7W | 10W 7W | 10W | 25W 7W | 15W 10W | 15W | 25W 10W | 15W | 20W 10W | 15W | 25W | 40W 10W | 15W | 25W 10W | 15W | 25W | 40W

Specifications

Model Number

AIB-MO23-S1

AIB-MO33-S1

AIB-MN33-S1

AIB-MN43-S1
AI Performance 34 TOPS 67 TOPS 117 TOPS 157 TOPS
Module Compatibility NVIDIA Jetson Orin Nano with Super Mode 4GB NVIDIA Jetson Orin Nano with Super Mode  8GB

NVIDIA Jetson Orin NX with Super Mode 8GB

 NVIDIA Jetson Orin NX with Super Mode 16GB
GPU 512 Core NVIDIA Ampere, with 16 Tensor Cores 1024 Core NVIDIA Ampere, with 32 Tensor Cores 1024 Core NVIDIA Ampere, with 32 Tensor Cores
CPU 6-core Arm® Cortex® -A78AE v8.2 64-bit 1.5MB L2 + 4MB L3 6-core Arm® Cortex® -A78AE v8.2 64-bit 2MB L2 + 4MB L3 8-core Arm® Cortex® -A78AE v8.2 64-bit 2MB L2 + 4MB L3
Memory 4GB 64-bit LPDDR5 51 GB/s 8GB 128-bit LPDDR5 68 GB/s 8GB 128-bit LPDDR5 102.4 GB/s 16GB 128-bit LPDDR5 102.4 GB/s
Storage 1 x M.2 M-Key 2242 (NVMe 128GB built-in)
Display 1 x HDMI 1.4 Type A 1 x HDMI 2.0 Type A
MIPI Camera Input 2 x 4 lane MIPI CSI-2, 22 pin FPC Connector
TPM TPM
RTC RTC Battery
LAN 1 x RJ-45 GbE Ports

PoE Interface

2 x RJ-45 GbE PSE
(IEEE 802.3af compliant, Power Output 15W/Port, Total PSE ports support up to 30W )
USB 2 x USB 3.2 Gen2 Type A (supports up to 10Gbps shared)
1 x USB 2.0 Gen2 Type A
1 x OTG Type-C
I/O Interfaces

7 x GPIO, 1 x SPI, 3 x I2C, 1 x UART, 1 x UART (Debug Only),
1 x CAN (Isolation; support CAN FD), 1 x RS-422/485/232 (switch 3-in1)
Expansion

1 x M.2 B-Key 3052 (LTE/4G/5G)
1 x M.2 E-Key 2230 (WiFi/BT)
1 x M.2 M-Key  2242 (NVMe 128GB built-in)
MISC. Function 1 x Recovery / 1 x Reset Button
Power Consumption Idle: 15 W
FullLoading: 77* W		 Idle: 16 W
Full Loading: 78* W
  *For more test condition information, please refer to user manual
Power Input/Connector DC-in 12 to 24 VDC / 2-Pin Terminal Block
Dimension (WxDxH) 128.00 x 96.75 x 27.44 (5.04 x 3.81 x 1.08 in) without Fansink
128.00 x 96.75 x 73.28 (5.04 x 3.81 x 2.89 in) with Fansink
Net Weight 164 g (0.362 lb) ) without Fansink
348 g (0.767 lb) with Fansink
Vibration

1 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
Shock

10 G, IEC 60068-2-27, half sine, 11 ms duration
Temperature

Operating Temp.: -25°C ~ +80°C (-13°F ~ +176°F)
Storage Temp.: -40°C ~ +85°C (-40°F ~ +185°F
*With full CPU+GPU stressing: System non-throttling at 70C with 40W (MAXN Mode)
Humidity 95% @ 40°C (104°F) (non-condensing)
Software Support Linux (Support NVIDIA JetPack 6.2 and above)
Certification CE / FCC Class A / UKCA

*Product specifications are subject to change without prior notice

Why Aetina

Value-Added Points Description
NVIDIA Elite Partner Priority access to NVDIA technologies and Jetson products, helping clients innovate faster and scale within the NVIDIA ecosystem.
End-to-End Customization and Integration From chassis and thermal design to BSP integration, Aetina partners with customers throughout solution planning and system validation, providing tailored solutions with detailed test reports to meet every unique deployment requirement.
Collaborative AI Deployments With over a decade of edge AI expertise and a robust ecosystem, Aetina provides comprehensive technical and team support to simplify integration and accelerate time to deployment.

Rich Set of Validated
Peripherals		 Backed by NVIDIA ecosystem partners and the Innodisk Group, Aetina offers a wide range of fully validated peripherals—including storage, cameras, Wi-Fi, and 4G/5G—reducing integration time and overall system cost.


FAQ

Question Answer
What cameras and connectivity options do the system support? The Mini platform supports dual-camera configurations via MIPI and PoE, with total PSE power up to 30W for high-performance multi-camera deployments. Wired and wireless connectivity options include LTE, Wi-Fi, and Bluetooth, ensuring reliable, always-on edge intelligence in diverse deployment scenarios.
What AI performance can I expect from this compact system? Despite its palm-sized form factor (127 x 85.75 x 28.45 mm), the platform accelerated by NVIDIA Jetson Orin NX with super mode, delivers up to 157 TOPS of AI compute. It enables real-time Vision AI and generative AI inference directly at the edge.

What other palm‑sized edge AI computing platforms are available? 1. Platform：AIB-MO23/33 | AIB-MN33/43
2. System：AIE-CO23/33 l CO33/43
3.Explore more on our Edge AI Product list

Specifications

Start to compare
0

Ordering Information

Model Number Description

AIB-MO23-1-S1

Orin Nano 4GB, 1 x HDMI, 3 x GbE, 3 x USB, 128GB SSD, E/M Key, 9 to 36 VDC input, -25°C ~ +80°C

AIB-MO33-1-S1

NVIDIA Jetson Orin Nano 8GB, 1 x HDMI, 3 x GbE, 3 x USB, 128GB SSD, E/M Key, 9 to 36 VDC input, -25°C ~ +80°C

AIB-MN33-1-S1

NVIDIA Jetson Orin NX 8GB, 1 x HDMI, 3 x GbE, 3 x USB, 128GB SSD, E/M Key, 9 to 36 VDC input, -25°C ~ +80°C

AIB-MN43-1-S1

NVIDIA Jetson Orin NX 16GB, 1 x HDMI, 3 x GbE, 3 x USB, 128GB SSD, E/M Key, 9 to 36 VDC input, -25°C ~ +80°C
