AN110-XNX-EN70
• Smallest design for NVIDIA Jetson Xavier NX Module
• Specifically designed for high performance and low-power envelope AI computing
• Support fan-less conduction-cooled
• Extended temperature range -20°C to 55°C
• Suitable for general robotics, AOI, AI gate entrance and smart gateway
 |
Overview
At just 120 x 100 x 72.7 mm, AN110-XNX-EN70 is the smallest Jetson-based device, based on NVIDIA® Jetson Xavier™ NX. In the same time, AN110-XNX-EN70 provides great power consumption at 10 to 15 watts. This smallest Jetson system delivers big performance when it comes to deploying AI to devices at the edge, especially for the application of AI gate entrance.
▼ Read More ▼
AN110-XNX-EN70 is designed in small footprint and support wide temperature range from -20°C to 55°C to meet challenging environments and space-constrained systems. Integrated with NVIDIA Jetson Xavier NX to deliver over 21 TOPS computing performance. This smallest system design helps you to develop a machine vision application in general robotics, AOI, medical imaging and AI gate entrance.
| ● Taking advantage of 21 TOPS computational performance from NVIDIA Jetson Xavier NX super-computing modules for unmatched GPGPU solutions |
| ● Designed for various embedded applications with extended temperature support |
| AN110-XNX-EN70 was designed in compact and small form factor (120mm x 100mm x 72.7mm) with solid components used, ensures its high-quality data transferring even at extended temperature ranging from -20°C to 55°C. This make it ideally suitable for space-constrained embedded applications in challenging environments. |
Specifications
Model Number
AN110-XNX-EN70
Processor
CPU
Architecture
6-core NVIDIA Carmel ARM®v8.2
64-bit CPU 6MB L2 + 4MB L3
64-bit CPU 6MB L2 + 4MB L3
GPU
Architecture
NVIDIA Volta™
NVIDIA CUDA® Cores
384 CUDA cores and 48 Tensor cores
Floating Point
14 TOPS (INT8) 10W
21 TOPS (INT8) 15W
21 TOPS (INT8) 15W
Memory
Memory Size
8 GB LPDDR4x
Memory Interface Width
128-bit
Networking
Networking
10/100/1000
BASE-T Ethernet
BASE-T Ethernet
Mass Storage
Storage
16 GB eMMC 5.1
Feature Support
DirectX
12.0 (12_1)
Vulkan
1.2.131
OpenGL
4.6
CUDA Compute Capability
7.2
Mechanical & Environment
Power Requirement
12V / 5A DC
Dimensions (mm)
120 mm x 100 mm x 72.7mm
Operation Temperature
- 20 ~ + 55 ℃
Operation Humidity
10% ~90%

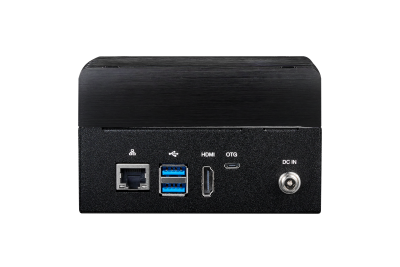

I/O
Storage
1x Micro SD card slot
Video Outputs
1x HDMI Type A
LAN
1x RJ-45 (Internal)
Extension Slots
1x M.2 E Key 2230
USB
2x USB3.2 Gen1 Type A
1x USB2.0 AB OTG
1x USB2.0 AB OTG
Serial
1x RS-232
Others
2x UART (1x Debug UART)
1x I2C
5x GPIO
1x I2C
5x GPIO
Dimensions
Ordering Information
| Model Number | Description |
|---|---|
| AN110-XNX-EN70 | AN110+Jetson Xavier NX Module+Chassis+Power Adapter, -20°C to +55°C |
Downloads
Document
| File Name | Size | Version | OS | Model Name | Update Date | Download |
|---|---|---|---|---|---|---|
| Aetina_System_AN110-XNX-EN70_datasheet_v1.0 | 396.85 KB | v.1.0 | - | AN110-XNX-EN70 | 2020-10-27 | View |
| Aetina_AN110_User manual_V1.0 | 718.82 KB | v1.0 | - | AN110 | 2020-08-11 | View |
Driver & Software
| File Name | Size | Version | OS | Model Name | Update Date | Download |
|---|---|---|---|---|---|---|
| R32_4_3_Xavier-NX_AN110_Camera_IMX290_Dual_1 | 24.00 KB | L4T R32.4.3 - JetPack 4.4 | - | AN110-XNX | 2020-10-27 | View |
