M3T5000-WN

NVIDIA Quadro RTX5000 embedded graphics based on NVIDIA Turing architecture
3072 CUDA cores, 48 RT cores and 384 Tensor cores, 16GB GDDR6 memory
9.4 TFLOPS peak FP32 performance
Support up to 4 DisplayPort 1.4 displays
Support CUDA Compute version 7.5, OpenCL 1.2, OpenGL 4.6, DirectX 12 and Vulkan 1.1 API
5 year life cycle availability


Overview

From stunning industrial design to advanced special effects to complex scientific visualization, Quadro is the best visual computing platform. M3T5000-WN module features advanced NVIDIA Quadro graphics cards with Turing Architecture technology in the MXM 3.1 Type B+ form, bringing amazing visual computing performance, power-efficiency and real-time raytracing into every embedded system.

▼ Read More ▼

M3T5000-WN is a powerful MXM GPU module based on 16GB GDDR6 memory, providing 14.0 Gbps memory clock and 448 GB/sec high memory bandwidth. M3T5000-WN not only brings 3072 CUDA cores and 9.4 TFLOPS of computing ability, but also supports 8K(7680x4320) resolution or up to 4x FHD displays, offering the most flexible solution for high performance computing demands embedded application.

● Advanced NVIDIA Quadro graphics cards with Turing Architecture technology
M3T5000-WN is powered by NVIDIA Quadro RTX5000 GPU, with core of NVIDIA Turing TU104 which is driven by groundbreaking NVIDIA Turing GPU architecture. Built with the high-speed and high bandwidth memory technology to deliver more I/O throughput, better performance and higher power efficiency, M3T5000-WN delivers ultimate performance to tackle new possibilities in massive-computing workstation applications.
● The revolutionary NVIDIA Turing architecture fuses together real-time ray tracing and programmable shading
NVIDIA Turing GPU supports real-time ray tracing in the embedded environment, not only showing realistic lighting, shadowing and reflection, but also immediately perform a movie-grade rendering. This new architecture dives AI enhanced graphics and provides Tensor cores, brings an x30 faster procession time compared to CPU calculation, reducing the time from working with a tremendous amount of image data and efficiently show the verisimilitude of image analysis. Moreover, Turing GPUs feature new advanced shading technologies that are more powerful and flexible than the previous version.
● DisplayPort 1.4 ready, supports 8K(7680x4320) resolution or 4 FHD displays
M3T5000-WN pushes the image quality to new heights, with supporting up to 8K(7680x4320) resolution, 4 FHD displays and NVEncode/NVDecode.
● Robust industrial-grade design with conformal coating for option
Aetina embedded MXM modules are designed with industrial-grade components used, offering conformal coating service on its complete range of MXM module to meet the rigors of harsh industrial. Those advantages make it ideally suitable for massive-computing embedded applications in rugged environments.
● Your Longevity Industrial Partner
Longevity is Aetina's promise to the customers. MXM modules have 5 years long-term supply, help the clients to overcome the problem of the long development period and exclusive engineering support team is available for each customer. Also, Aetina provides industrial components that can extend the lifespan of the product, helping customers to reduce costing and time from maintaining.

Specifications

Model Number
M3T5000-WN
Bus Type
PCI Express 3.0
Form Factor
MXM graphics module version 3.1, Type B+
GPU Engine
GPU Architecture
NVIDIA Turing™ TU104
Graphics Processing Unit
NVIDIA Quadro RTX5000
NVIDIA CUDA Cores
3072
Memory
Memory Size
16GB GDDR6
Memory Clock
14 Gbps
Memory Interface Width
256 bit
Feature Support
DirectX
12
Vulkan
1.1 API
OpenCL
1.2
Operation System
Windows 10 64-bit
Linux 64-bit
Other Technology
Real-time ray-tracing
Display
Max. Displays per Board
4
Max. Digital Resoultion
7680 x 4320
Power
Total Graphics Power (TGP)
110 W
Mechanical & Environment
Dimensions (mm)
82 x 110 mm
Operation Temperature(Standard)
0℃ ~ +55℃ (32°F ~ 131°F)
Operation Humidity
5% to 90%
Start to compare
0

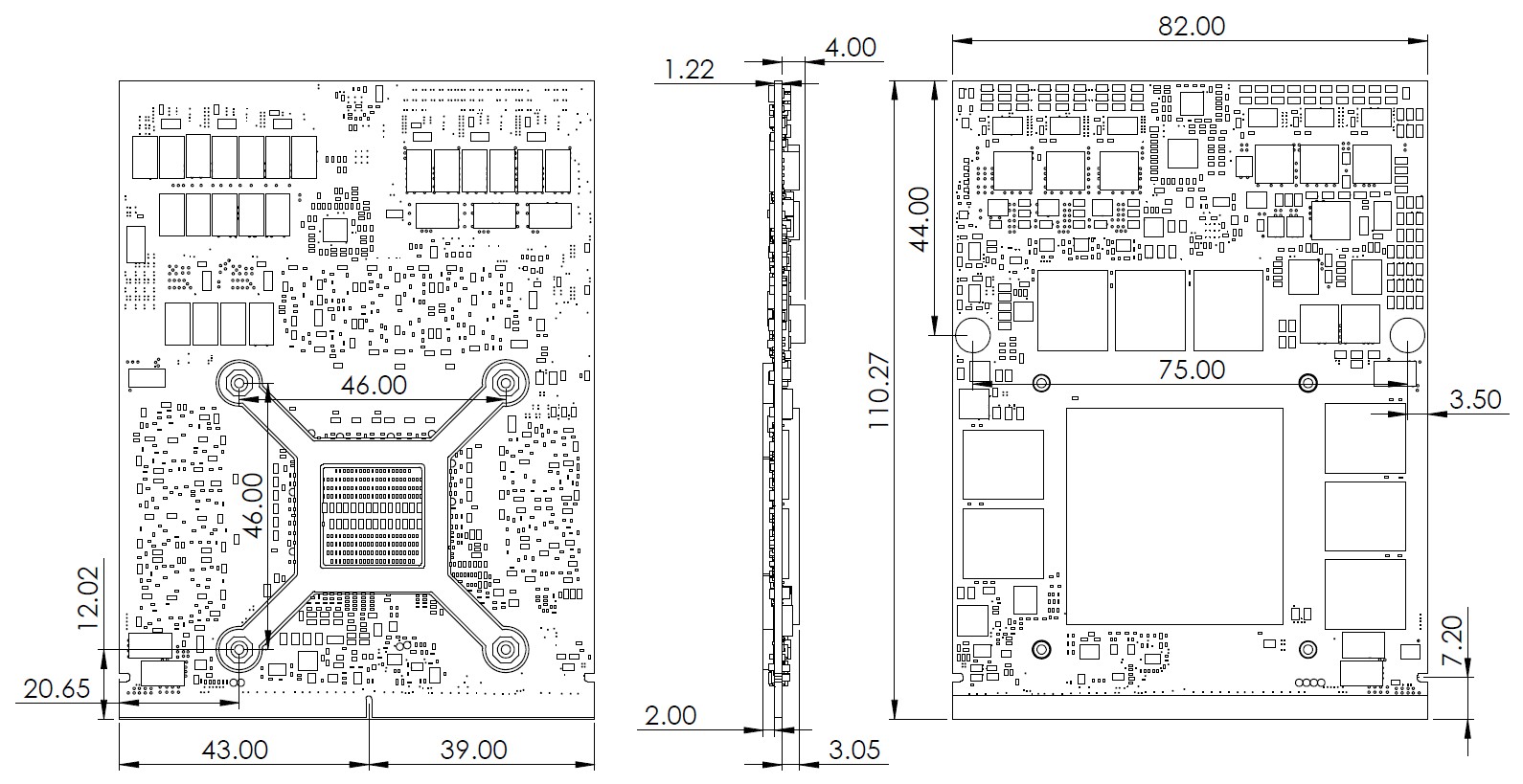

Dimensions

M3T5000-WN dimension

Ordering Information

Model Number Description
M3T5000-WN MXM3.1 Type B+, NVIDIA Quadro RTX5000, 16GB GDDR6, 0°C to +55°C

Downloads

Model Name File Name OS Version Update Date Download
M3T5000-WN Aetina_MXM_M3T5000-WN_datasheet 1.0 2022-07-29 View
