AIB-MX11-NV
• Powered by NVIDIA Jetson AGX Xavier™ SOM
• Designed for high-performance and low-power envelope AI computing
• Supports multiple I/Os
• Extended temperature range from -25°C to 80°C
• 60-pins extension slot for PCIe /104
• Suitable for general robotics, UAV, AOI and deep learning applications
Overview
AIB-MX11-NV is a multiple-functional platform based on NVIDIA® Jetson AGX Xavier™, featuring high performance and energy-efficient AI computing. With 120-pin MIPI CSI-II connector and PCIe/104 slot, AIB-MX11-NV captures high-resolution images and transmits the inference results to server or cloud. These two benefits not only increase the inference accuracy but reduce the latency between edge and cloud.
▼ Read More ▼
AIB-MX11-NV fully supports M.2 device and 10G LAN module, allowing developers to integrate peripherals through extension slots. Besides, with driver-ready MIPI cameras and diverse peripheral interface modules, AIB-MX11-NV expands system connectivity and implements video image detection(VID) flexibly.
Designed with a small form factor, AIB-MX11-NV supports extended temperature to meet challenging environments such as space-constrained systems. Integrated with NVIDIA Jetson AGX Xavier, AIB-MX11-NV is capable of delivering over 32 TOPS computing performance and supporting high quality real-time analytics on edge devices. AIB-MX11-NV makes it easy for developers to achieve high resolution demand-VID applications in robotics, AOI, warehouse logistics, inspection, healthcare, retail and intelligent systems.
| ● Over 32 TOPs computational performance from NVIDIA Jetson AGX Xavier super-computing modules |
| ● PCIe/104 extension slot for M.2 device and 10G LAN module |
| AIB-MX11-NV is designed with PCIe/104 extension slot for M.2 device and 10G LAN. Through the extension I/O connector of AIB-MX11-NV, developers can quickly and flexibly build systems’ I/O connectivity and communication. |
| ● Designed for various embedded applications with extended temperature support |
| AIB-MX11-NV is designed in small form factor with solid components. Capable of high-quality data transfer within an extreme temperature range from -25°C to 80°C, AIB-MX11-NV is ideal for space-constrained embedded applications. |
Specifications
Model Number
AIB-MX11-NV
Processor
CPU
Architecture
8-core ARM v8.2 64-bit CPU
8MB L2 + 4MB L3
8MB L2 + 4MB L3
GPU
Architecture
NVIDIA Volta™
NVIDIA CUDA® Cores
512 CUDA cores and 64 Tensor cores
Floating Point
11 TFLOPS (FP16)
32 TOPS (INT8)
32 TOPS (INT8)
Memory
Memory Size
32GB LPDDR4x
Memory Interface Width
256-bit
Networking
Networking
10/100/1000
Gigabit Ethernet
Gigabit Ethernet
Mass Storage
Storage
32GB eMMC 5.1
Feature Support
DirectX
12.0 (12_1)
Vulkan
1.2.131
OpenGL
4.6
CUDA Compute Capability
7.2
Mechanical & Environment
Power Requirement
9.0 ~ 19.6V / 5A DC
Dimensions (mm)
131mm x 120mm
Operation Temperature
-20℃ ~ +70℃
Operation Humidity
10% ~90%
I/O
Storage
1x Micro SD card slot
Video Outputs
2x HDMI Type A
LAN
1x RJ-45 (Internal)
2x RJ-45 (Extension daughter board)
2x RJ-45 (Extension daughter board)
Extension Slots
1x M.2 M Key
1x M.2 E Key
1x MIPI CSI-II Connector (120-pins)
1x PCIe/104 slot
1x M.2 E Key
1x MIPI CSI-II Connector (120-pins)
1x PCIe/104 slot
USB
2x USB3.2 Gen1 Type A
1x USB3.2 Gen2 Type C
1x USB2.0 AB OTG
1x USB3.2 Gen2 Type C
1x USB2.0 AB OTG
Serial
1x RS-232
Others
2x CAN Bus
1x Front Panel
5x GPIO
1x 4-pin FAN connector
1x 6-pin Power connector
3x UART
1x Front Panel
5x GPIO
1x 4-pin FAN connector
1x 6-pin Power connector
3x UART

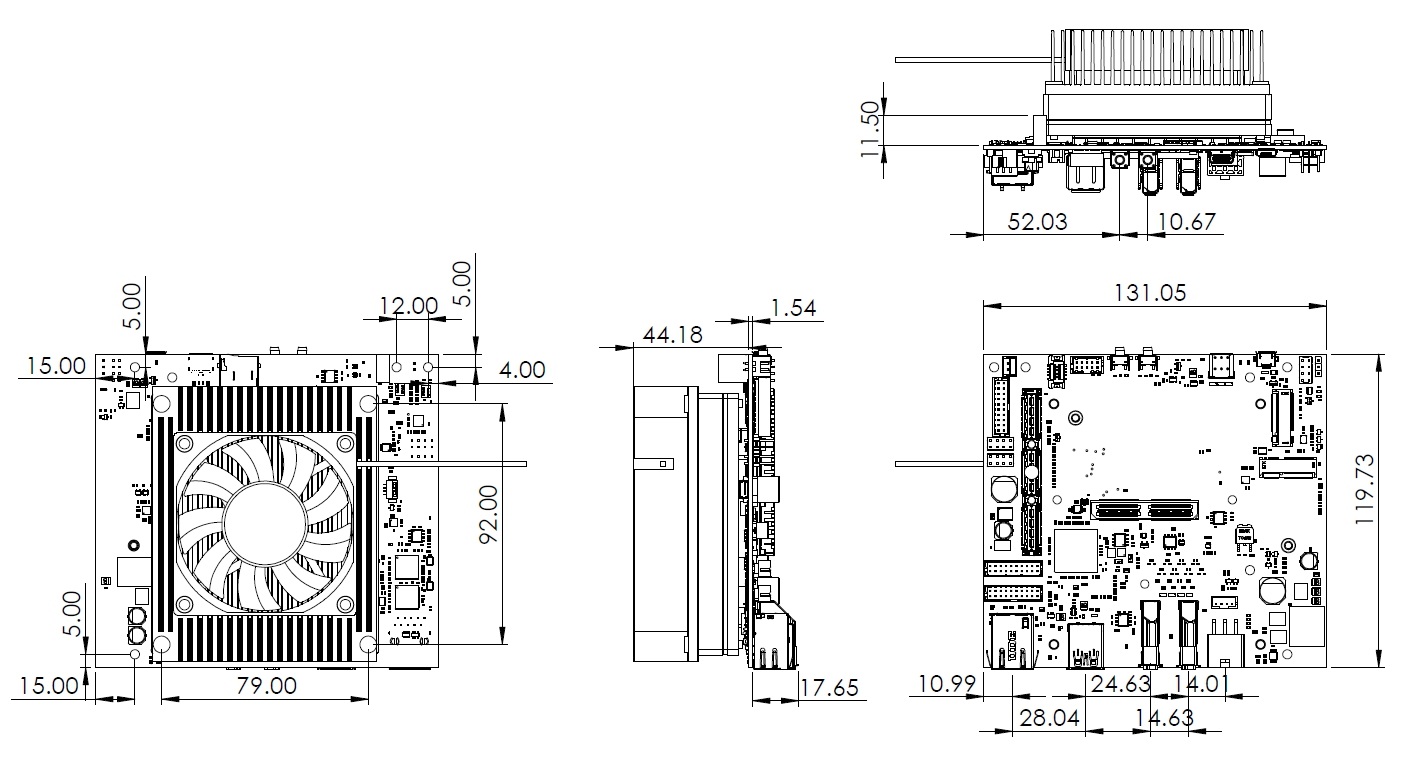

Dimensions
Ordering Information
| Model Number | Description |
|---|---|
AIB-MX11-1-NV |
AIB-MX11 + 32G AGX Xavier module+ Fan Cable kit + Power adapter + US Power cord |
AIB-MX11-2-NV |
AIB-MX11 + 32G AGX Xavier module+ Fan Cable kit + Power adapter + EU Power cord |
