AIB-SN11-NV
• Smallest design with NVIDIA Jetson Xavier™NX Module
• Specifically designed for edge AI computing
• The Camera Serial Interface (CSI) based on MIPI CSI 2.0 standard specification supports up to 2xFull HD or 1x4K camera
• Suitable for NVR (Single Machine), entry-level home robot and smart gateway
 |
 |
Overview
In the same size as Jetson Nano™, AIB-SN11-NV brings the NVIDIA Jetson Xavier™ NX advantage of high-performance computing into the small form factor platform. It combines outstanding performance with camera slots, supporting single 4K MIPI camera modules. Overall, AIB-SN11-NV features high expandability and fits diversified edge computing applications.
▼ Read More ▼
AIB-SN11-NV supports multiple power modes, delivering up to 21 TOPS with the performance of 384 NVIDIA CUDA® Cores, 48 Tensor Cores, and two NVIDIA Deep Learning Accelerators. It not only saves the power budget, but leaves sufficient space for peripherals when delivering 14 TOPs at 10 W. These features make it possible for AIB-SN11-NV to deliver edge computing applications, such as AGV, medical devices, security and AOI.
| ● Take advantage of 21 TOPS performance from NVIDIA Jetson Xavier NX modules |
| ● Collaborate with Microsoft Azure to accelerate IoT solutions |
| To help users accelerate IoT solution developments and target market arrangements, Microsoft Azure IoT services are ready for verification pretesting with its growing ecosystem. |
| ● Fit various edge AI computing applications with extended temperature support |
| AIB-SN11-NV is a compact module composed of solid components, suitable for space-constrained environments. It ensures high-quality data transfer while operating in temperatures ranging from -25°C to 80°C. |
Specifications
Model Number
AIB-SN11-NV
Processor
CPU
Architecture
6-core NVIDIA Carmel ARM®v8.2
64-bit CPU 6MB L2 + 4MB L3
64-bit CPU 6MB L2 + 4MB L3
GPU
Architecture
NVIDIA Volta™
NVIDIA CUDA® Cores
384 CUDA cores and 48 Tensor cores
Floating Point
14 TOPS (INT8) 10W
21 TOPS (INT8) 15W
21 TOPS (INT8) 15W
Memory
Memory Size
8 GB LPDDR4x
Memory Interface Width
128-bit
Networking
Networking
10/100/1000
BASE-T Ethernet
BASE-T Ethernet
Mass Storage
Storage
16 GB eMMC 5.1
Feature Support
DirectX
12.0 (12_1)
Vulkan
1.2.131
OpenGL
4.6
CUDA Compute Capability
7.2
Mechanical & Environment
Power Requirement
12V / 5A DC
Dimensions (mm)
87.4 mm x 67.4 mm
Operation Temperature
-20℃ ~ +70℃
Operation Humidity
10% ~90%
I/O
Storage
1x Micro SD card slot
Video Outputs
1x HDMI Type A
LAN
1x RJ-45 (Internal)
Extension Slots
1x 2-Lanes MIPI CSI-II FPC 15 pins
1x 4-Lanes MIPI CSI-II FPC 36 pins
1x M.2 E Key 2230
1x 4-Lanes MIPI CSI-II FPC 36 pins
1x M.2 E Key 2230
USB
2x USB3.2 Gen1 Type A
1x USB2.0 Micro AB
1x USB2.0 Micro AB
Serial
1x RS-232
Others
1x Front Panel
1x 4-pin FAN connector
2x UART (1x Debug UART)
5x GPIO
1x I2C
1x SPI
1x eDP (12V)
1x DC-in 12V (2 Pin Euroblock)
1x 4-pin FAN connector
2x UART (1x Debug UART)
5x GPIO
1x I2C
1x SPI
1x eDP (12V)
1x DC-in 12V (2 Pin Euroblock)

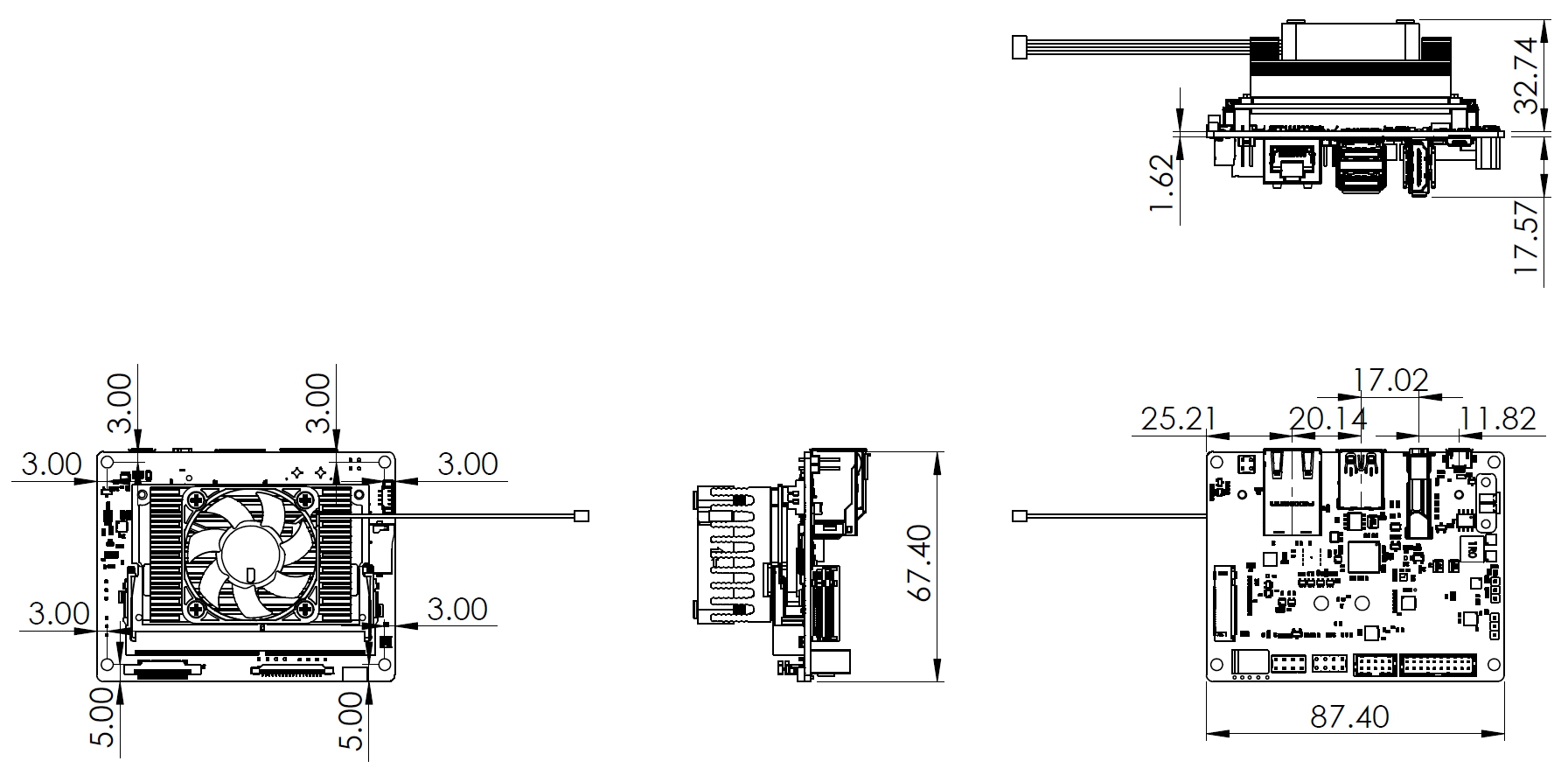

Dimensions
Ordering Information
| Model Number | Description |
|---|---|
|
AIB-SN11-1-NV |
AIB-SN11 + NX MODULE + FANSINK + POWER ADAPTER + US POWER CORD |
|
AIB-SN11-2-NV |
AIB-SN11 + NX MODULE + FANSINK + POWER ADAPTER + EU POWER CORD |
