• Powered by Rockchip RK3588 8-Core 64-bit processor with an 8nm advanced process
• LPDDR4X 8/16GB, eMMC 32GB
• Supports multiple AI accelerators
•2 x M.2 M-Key, one w/ PCIe 3.0 x4 for AI ASIC Accelerator, one w/SATA for Storage
•1 x M.2 E-Key for WIFI/BT, 1 x Mini PCIe for LTE
•1 x USB 3.2 Gen1, 1 x USB 2.0, 2 x GbE, 2 x COM, 1 x HDMI 2.1
As generative AI and edge computing evolve rapidly, there is a rising demand for edge AI applications, prompting the demands of small, low-power ARM-based platforms.
However, the time-consuming development of ARM edge devices with processors built in neural processing units (NPU) struggles to keep up with the rapid iteration of AI chips, making it challenging for them to keep up with AI advancements.
Aetina launches a new ARM edge devices that supports AI acceleration cards, offering various options for diverse applications. Switching AI on the ARM edge device does not require redevelopment!
Flexible Solution：Support Diverse 2280 M.2 AI Accelerators – Axelera, EdgeCortix, DeepX, MemryX, Hailo Powered by the Rockchip RK3588, the AIB-MR1A-B1 delivers exceptional AI performance with versatile 2280 M.2 AI accelerator options. This advanced ARM on ARM platform significantly boosts AI capabilities, scaling from entry 13 TOPS to an impressive 214 TOPS. Combining robust performance and flexibility in a sleek, compact design, it’s perfectly suited for real-time video analysis and seamless deployment in space-constrained edge environments.
Unleash Full Potential of AI Accelerator：M.2 Key M slot with PCIe Gen3 x4 Signal Compared with other ARM platforms utilizing PCIe Gen3x2, the AIB-MR1A-B1 features an M.2 Key M slot optimized with PCIe Gen3 x4 signals, offering extensive bandwidth and connectivity for high-speed data transfers.
Powered by Rockchip RK3588, Aetina AIB-MR1A-B1 empowers real-time video analytics, making ideal for accelerating smart security and smart retail, such as multi-camera monitoring and customer behavior analysis.
Support 32 Live 1080P Video Streams at 30 FPSAIB-MR1A-B1 significantly outperforms similarly priced x86 platforms that support only 7 to 13 channels.
Up to 8K video decoding and encoding AIB-MR1A-B1 features high resolution and precision for video analytics by 8K video processing.

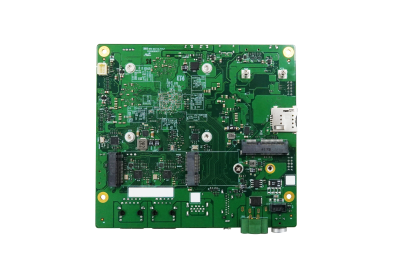

Diverse Networking Connectivity & Extensive Storage Capability, Catering to Edge AI ApplicationsThe AIB-MR1A-B1 platform can be configured with WiFi, Bluetooth, 4G/LTE and Gigabit Ethernet (GbE), satisfying the networking connectivity requirements for wired or wireless, stable or mobile communication in remote or dynamic edge environments. In addition, the platform is built with 32GB of storage, providing extensive storage capacity. It includes an M.2 Key M slot on the bottom side that supports SATA, offering versatility for customers requiring substantial storage for their data processing needs.
Comprehensive Customization ServiceAetina offers comprehensive customization service including chip down design service, BSP customization for 3rd party devices, 3rd party software pre-installation and device integration service to accelerate the AI project development.
Compact & Low Power ConsumptionThe AIB-MR1A-B1 platform, designed in the compact M.2 form factor, features a small footprint and low power consumption while delivering powerful AI computing capabilities. This makes it an ideal choice for edge environments with limited space and power.
| Model Number | AIB-MR1A-B1 | AIB-MR1B-B1 | |
| CPU | Rockchip RK3588 | ||
| Memory | LPDDR4X 8GB | LPDDR4X 16GB | |
| Storage | 32GB eMMC 1 x Micro-SD slot 1 x M.2 M-Key 2280 (SATA) for Storage (Bottom Side) |
||
| Display | 1 x HDMI 2.1 Type A (TMDS 3840X2160 60Hz) | ||
| LAN | 2 x RJ45 GbE | ||
| Audio | 1 x MIC-In, 1 x Line-Out, 1 x Line-In (Optional with daughter board) | ||
| USB | 1 x USB 3.2 Gen1 Type A 1 x USB 2.0 Type A 1 x Type C for Programming |
||
| COM | 1 x RS-232 (TXD/RXD/CTS/RTS) 1 x RS-485 |
||
| GPIO | 3 x GPIO | ||
| Expansion Slot | 1 x M.2 M-Key 2280 (PCIe Gen3 x4) for AI Accelerator (Top Side) 1 x M.2 E-Key 2230 (PCIe 2.1 x1+USB 2.0) for WIFI/BT 1 x Mini PCIe full-size (USB 2.0) for LTE w/micro SIM card holder |
||
| MISC. Function | 1 x Power Button 1 x Reset Button 1 x Maskrom Button 1 x OOB function (Optional with OOB module) |
||
| Power Input /Connector | DC-in 12V / Terminal Block 2-pin | ||
| Dimension (W x D) | 131 x 120mm (5.16” x 4.72”) | ||
| Net Weight | 0.236 Kg (0.521 lb) | ||
| Temperature | Operating Temperature: 0°C ~ 70°C (32°F ~ 158°F) Storage Temperature: -40°C ~ 85°C (-40°F ~ 185°F) |
||
| Humidity | 95% @ 40°C (Non-condensing) | ||
| OS Support | Debian 11 | ||
| Certification | CE/FCC | ||
| Model Number | Description |
|---|---|
| AIB-MR1A-B1 | Rockchip RK3588, 8GB LPDDR4X, 32GB eMMC, 1 x HDMI, 2 x GbE, 2 x USB, 2 x M KEY, 12 VDC INPUT, 0°C ~ +70°C |
| AIB-MR1B-B1 | Rockchip RK3588, 16GB LPDDR4X, 32GB eMMC, 1 x HDMI, 2 x GbE, 2 x USB, 2 x M KEY, 12 VDC INPUT, 0°C ~ +70°C |
| Model Name | File Name | OS | Version | Update Date | Download |
|---|---|---|---|---|---|
| AIB-MR1A-B1 / AIB-MR1B-B1 | Aetina_AIB-MR1A-B1/AIB-MR1B-B1_datasheet | v1 | 2025-03-26 | View |
