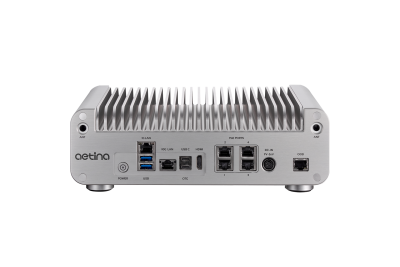

side front back
Prev
Next
side front back

AIE-PX11/12/21/22

Supports NVIDIA Jetson AGX Orin™ 32GB/64GB module

2/4 x IEEE 802.3af GbE PSE ports

1 x GbE port, 1 x 10GbE port

1 x M.2 B-Key, 1 x M.2 E-Key, 1 x M.2 M-Key slot

Wide input voltage range from 9 to 36 VDC

Operating Temperature -25°C ~ +55°C

 Fanless Design

NVIDIA Preferred Partner

Overview

● 8 x AI performance enables AI inference with low latency
NVIDIA Jetson AGX Orin module offers up to 275 TOPS, 8 times more than NVIDIA Jetson AGX Xavier™ 32GB module. Built in 2048 NVIDIA CUDA® cores and 64 Tensor Cores, NVIDIA Jetson AGX Orin 64GB module enables server-class AI inference at the edge with low latency.
● Comprehensive M.2 expansion, PSE and LAN ports
AIE-PX11/12/21/22 are fanless systems with high expansion ability, built in 1x M.2 B-Key for LTE/5G, 1x M.2 E-Key for Wifi/BT and 1x M.2 M-Key for storage. For network, on-board 2 or 4x PSE ports support 2 or 4x POE cameras, and 1x10GbE port offers data speeds up to 10 billion bits per second, 10 times faster than traditional GbE standard.
● Wide input power and fanless design for smart city and smart agriculture

To cater to diverse applications, such as smart city and smart agriculture, where cost-effective maintenance and improved reliability are crucial, AIE-PX11/12/21/22 have been specifically designed with a fanless and silent mechanism. These systems are capable of operating within a wide temperature range of -25°C to 55°C. Additionally, they support a wide input power range from 9 to 36 VDC, enabling flexible power supply options.


* AIE-PX11/12/21/22 are preliminary products, so the specifications are subject to change without prior notice.

Specifications

Model Number AIE-PX11 AIE-PX12 AIE-PX21 AIE-PX22
Module Compatibility NVIDIA Jetson AGX Orin 32GB NVIDIA Jetson AGX Orin 64GB
AI Performance 200 TOPS 275 TOPS
GPU 1792-core NVIDIA Ampere GPU with 56 Tensor Cores 2048-core NVIDIA Ampere GPU with 64 Tensor Cores
CPU 8-core Arm® Cortex® -A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 12-core Arm® Cortex® -A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3
Memory 32GB 256-bit LPDDR5 204.8 GB/s 64GB 256-bit LPDDR5 204.8 GB/s
Storage 64GB eMMC 5.1
Display 1 x HDMI 2.0 Type A
TPM TPM v2.0 (optional)
LAN 1 x RJ-45 GbE, 1 x RJ-45 10GbE
PoE Interface 2 x RJ-45 GbE PSE
(IEEE 802.3af compliant, Power Output 15W/Port)*
4 x RJ-45 GbE PSE
(IEEE 802.3af compliant, Power Output 15W/Port)*
2 x RJ-45 GbE PSE
(IEEE 802.3af compliant, Power Output 15W/Port)*
4 x RJ-45 GbE PSE
(IEEE 802.3af compliant, Power Output 15W/Port)*
  *PSE Port 1 & Port 2 support IEEE 802.3at compliant; Total PSE ports support up to 60W
USB 2 x USB 3.2 Gen1 Ty pe A, 1 x USB 2.0 (DB-15), 1 x OTG Ty pe-C, 1 x USB 3.2 Gen2 Ty pe-C/td>
I/O Interfaces 2 x I2C,
1 x SPI,
5 x GPIO,
2 x UART,
1 x RS-232,
1 x RS-422/485 (2-in-1),
2 x CAN 2.0b (isolation; support CAN FD),
1 x microSIM Card Slot,
1 x OOB (optional)
Expansion 1 x M.2 B-Key 3042/3052 (LTE/4G/5G)
1 x M.2 E-Key 2230 (WiFi/BT)
1 x M.2 M-Key 2280 (supports NVMe; PCIe x2 Gen3)
1 x microSD Card Slot
MISC. Function 1 x Power / 1 x Recovery / 1 x Reset Button
Power Input/Connector DC-in 9 to 36 VDC / 4-Pin DC Jack Power Connector
Power Consumption Idle: 7.5 W
Full Loading: 109* W
Idle: 8 W
Full Loading: 130* W
  *For more test condition information, please refer to user manual
Dimension (WxDxH) 270 x 195 x 80 mm (10.63 x 7.67 x 3.15 in)
Mounting Wall Mount (optional) / Din Rail (optional)
Net Weight 4.3 kg (9.48 lb)
Vibration 1 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
Shock 10 G, IEC 60068-2-27, half sine, 11 ms duration
Temperature Operating Temperature: -25°C ~ +55°C (-13°F ~ +131°F) with 0.5 m/s airflow
Storage Temperature: -40°C ~ +85°C (-40°F ~ +185°F)
Humidity 95% @ 40°C (104°F) (non-condensing)
Software Support Linux (Support Jetpack 5.0 above)
Certification CE / FCC Class A / UKCA

*Product specifications are subject to change without prior notice

Specifications

Start to compare
0

Ordering Information

Model Number Description

AIE-PX11-1-A1

AGX Orin 32GB, 1 x HDMI, 1 x GbE, 1 x 10GbE, 2 x PoE, 3 x USB, B/E/M Key, 9 to 36 VDC input, -25°C ~ +55°C

AIE-PX12-1-A1

AGX Orin 32GB, 1 x HDMI, 1 x GbE, 1 x 10GbE, 4 x PoE, 3 x USB, B/E/M Key, 9 to 36 VDC input, -25°C ~+55°C

AIE-PX21-1-A1

AGX Orin 64GB, 1 x HDMI, 1 x GbE, 1 x 10GbE, 2 x PoE, 3 x USB, B/E/M Key, 9 to 36 VDC input, -25°C ~ +55°C

AIE-PX22-1-A1

AGX Orin 64GB, 1 x HDMI, 1 x GbE, 1 x 10GbE, 4 x PoE, 3 x USB, B/E/M Key, 9 to 36 VDC input, -25°C ~ +55°C

Downloads

Model Name File Name OS Version Update Date Download
Jetson Orin Series Aetina_Success Story_Dralle v1.0 2024-05-22 View
Jetson Series Aetina_Jetson Series_brochure v2.0 2024-05-21 View
Jetson Orin Series Aetina_Peripherals List for Jetson Orin Series v1.5 2024-02-19 View
AIE-PX11/12/21/22 Aetina_AIE-PX11/12/21/22_datasheet v1.1 2024-01-11 View
AIE-PX11/12/21/22 Aetina_AIE-PX11/12/21/22_user manual v1.1 2023-11-02 View
Model Name File Name OS Version Update Date Download
AIB-MX11/AIB-MX12
AIB-MX21/AIB-MX22
AIE-KX11/AIE-KX12
AIE-KX21/AIE-KX22
AIE-PX11/AIE-PX12
AIE-PX21/AIE-PX22
PATCH_R36_3_0_ORIN_AGX_AIB-MX01-MX02_v1.2.0_Standard JetPack 6.0 2024-09-13 View
