AN810
• Support NVIDIA Jetson Xavier NX
• Flexibly support full M.2 expansion capabilities
• Specifically designed for high performance and low-power envelope AI computing
• Extended temperature range -40°C to 85°C (Only Motherboard)
• Suitable for general robotics, Drone, UAV, industrial inspection, medical imaging and deep learning
Overview
AN810 is the world's leading carrier board with multi-function extension I/O supported, which is powered by NVIDIA® Jetson Xavier™ NX. This carrier board fully supports M.2 device with extension slot, that assist developers expand their systems communication ability, I/O connectivity and VID(Video-Image-Detection) deployment flexibly and quickly.
▼ Read More ▼
| ● Supported expansion M.2 devices and on-board SIM card slot |
| AN810 is designed with multiple extension slot, which are on-board M.2 M key / B Key / E Key connector and one SIM card slot, developers can quickly and flexibly expand systems’ I/O connectivity and communication for 4G/5G without any time wasting and focus on software or algorithm developing. |
| ● Designed for various embedded applications with extended temperature support |
| AN810 was designed in compact and small form factor (120 mm x 120 mm) with solid components used, ensures its high-quality data transferring even at extended temperature ranging from -40°C to 85°C. This make it ideally suitable for space-constrained embedded applications in challenging environments. |
Specifications
Model Number
AN810
Form Factor
Carrier Board
Mechanical & Environment
Power Requirement
12-19V
Dimensions (mm)
120 mm x 120 mm
Operation Temperature
-40℃ ~ +85 ℃ (-40°F~+185°F)
Operation Humidity
10% ~ 90%
I/O
Storage
1x Micro SD card slot
Video Outputs
1x HDMI Type A
LAN
1x RJ-45 for GbE
Extension Slots
1x M.2 M Key 2280(PCIe x4 / SATA)
1x M.2 E Key 2230(USB2.0/PCIe x1)
1x M.2 B Key 3050(USB3.1)
1x 120-pins Connector for MIPI CSI-II
1x SIM Slot
1x M.2 E Key 2230(USB2.0/PCIe x1)
1x M.2 B Key 3050(USB3.1)
1x 120-pins Connector for MIPI CSI-II
1x SIM Slot
USB
2x USB3.2 Gen1 Type A
1x USB2.0 Micro AB(OTG Only)
1x USB2.0 Micro AB(OTG Only)
Others
1x Front Panel
1x Power button/ Reset Button
2x UART
5x GPIO
3x I2C
1x SPI
1x CAN
1x DC-in 12-19V (6 Pin Micro Fit)
1x Power button/ Reset Button
2x UART
5x GPIO
3x I2C
1x SPI
1x CAN
1x DC-in 12-19V (6 Pin Micro Fit)

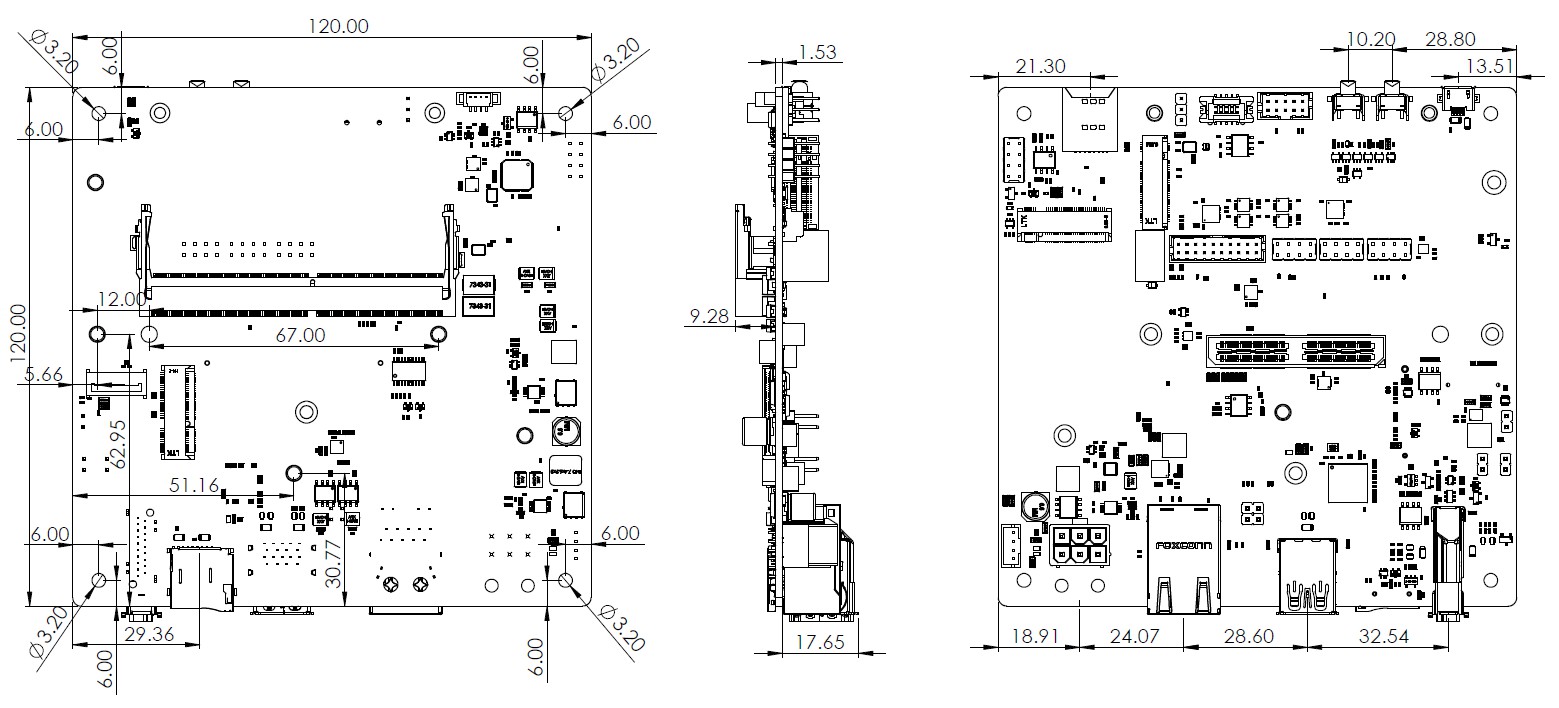

Dimensions
Ordering Information
| Model Number | Description |
|---|---|
| AN810-STD-AN00 | AN810 Carrier including I/O Cables, Standard temp. -40 ℃ to +85 ℃ |
Downloads
| Model Name | File Name | OS | Version | Update Date | Download |
|---|---|---|---|---|---|
| AN810 | Aetina_AN810_user manual | v1.3 | 2023-07-07 | View | |
| AN810 | Aetina_Carrier_AN810_datasheet | v1.2 | 2022-05-23 | View |
